20150217_182852

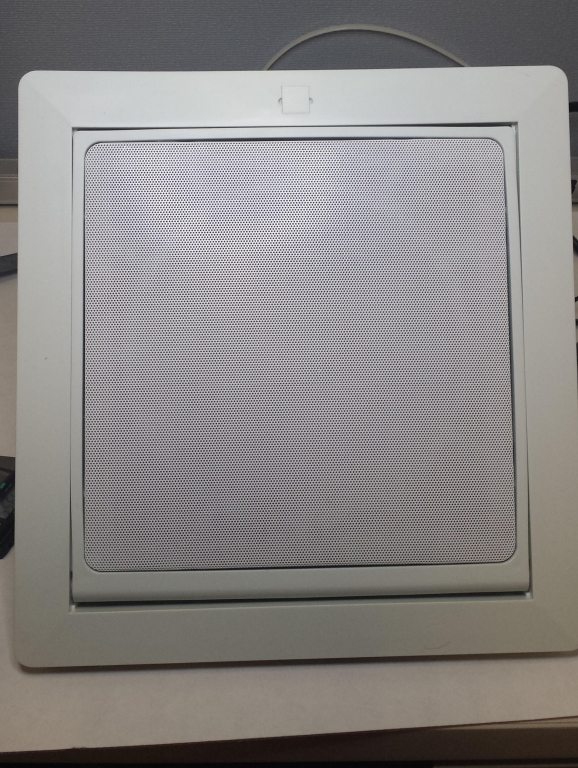

In this view you can see that the speaker enclosure is warped. The speaker bezel and the speaker grille are both straight.

SAMSUNG-SGH-I337
2/17/2015 6:28:52 PM

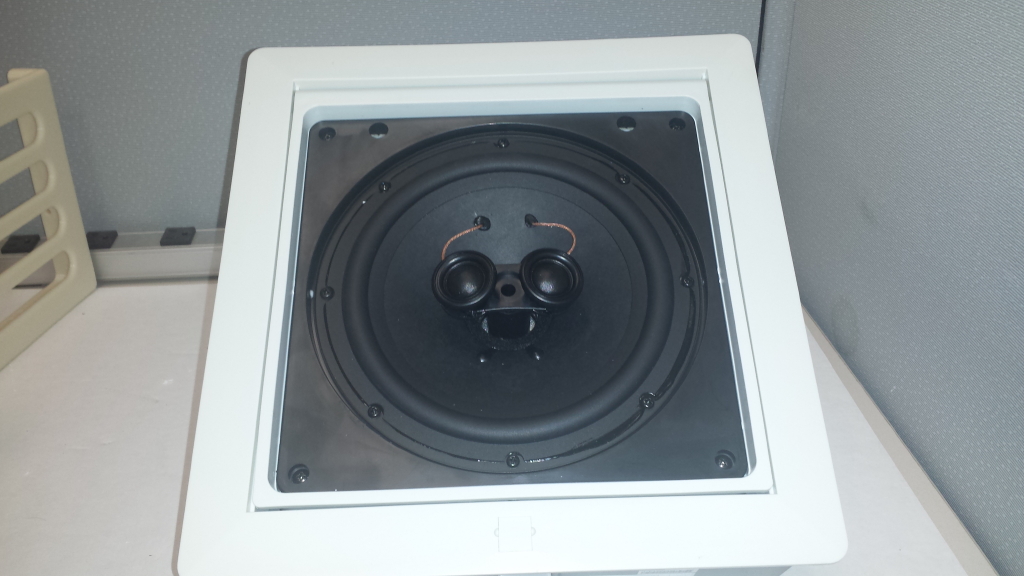

20150220_123703

After modification you can see that there is now a gap all around the speaker enclosure and the bezel.

SAMSUNG-SGH-I337
2/20/2015 12:37:03 PM

20150220_123050

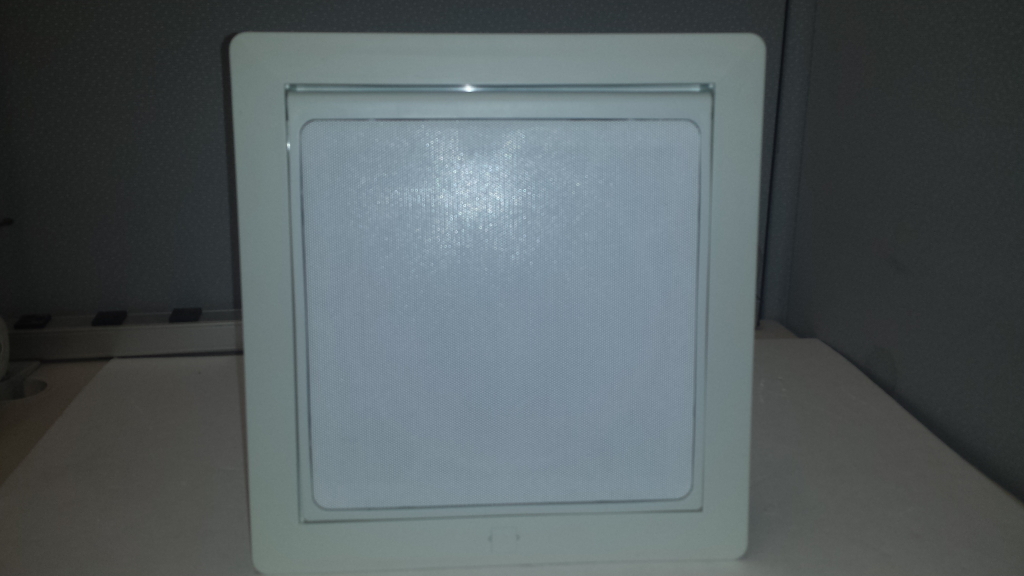

Modified with speaker grille installed

SAMSUNG-SGH-I337
2/20/2015 12:30:49 PM

qpd2008_drill bushing fixture1

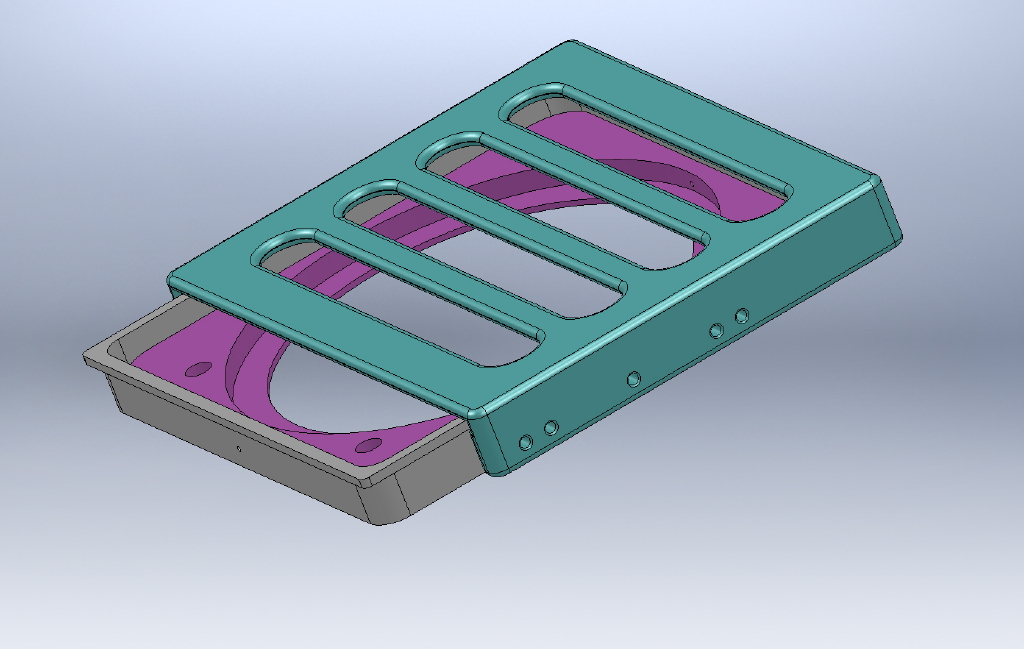

This is the fixture I designed to drill the holes in the appropriate locations. I made 3d mockups of the speaker baffle and the top portion of the speaker enclosure which were modeled from dimensions obtained from the actual parts.

2/20/2015 1:37:39 PM

qpd2008_drill bushing fixture2

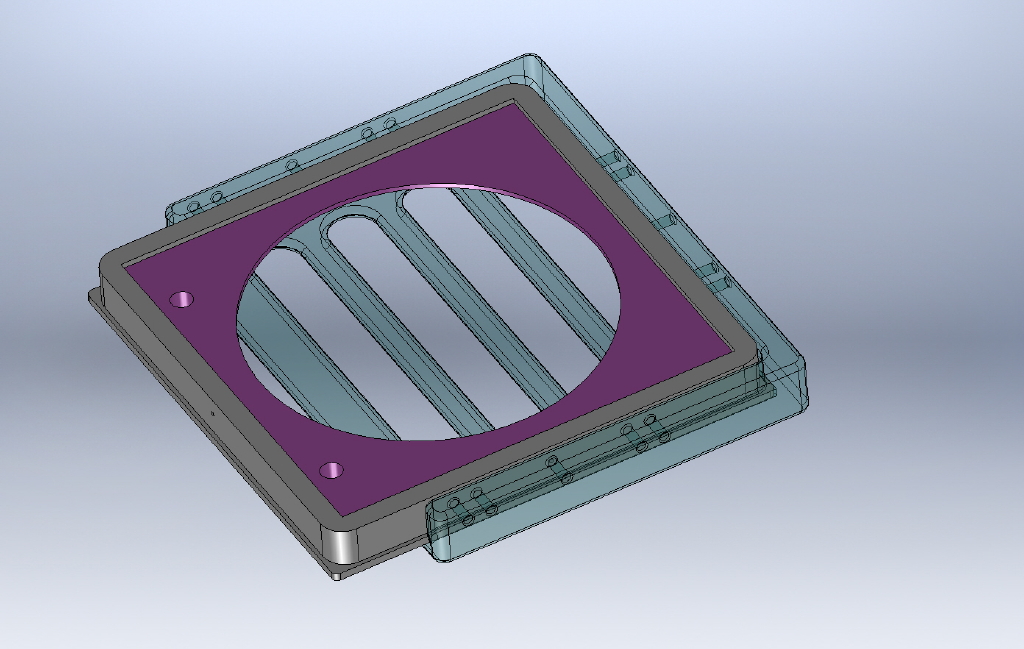

The actual fixture has additional holes for more holes should they be necessary to straighten out a severely warped enclosure.

Not pictured are the drill bushings which would get pressed into the fixture.

Actual hardened drill bushings were too expensive for the 24 or so holes I needed to drill so I just 3d printed bushings which can easily be replaced if they wont hold up long enough to modify the 8 speakers.

2/20/2015 1:37:39 PM

qpd2008_drill bushing fixture3

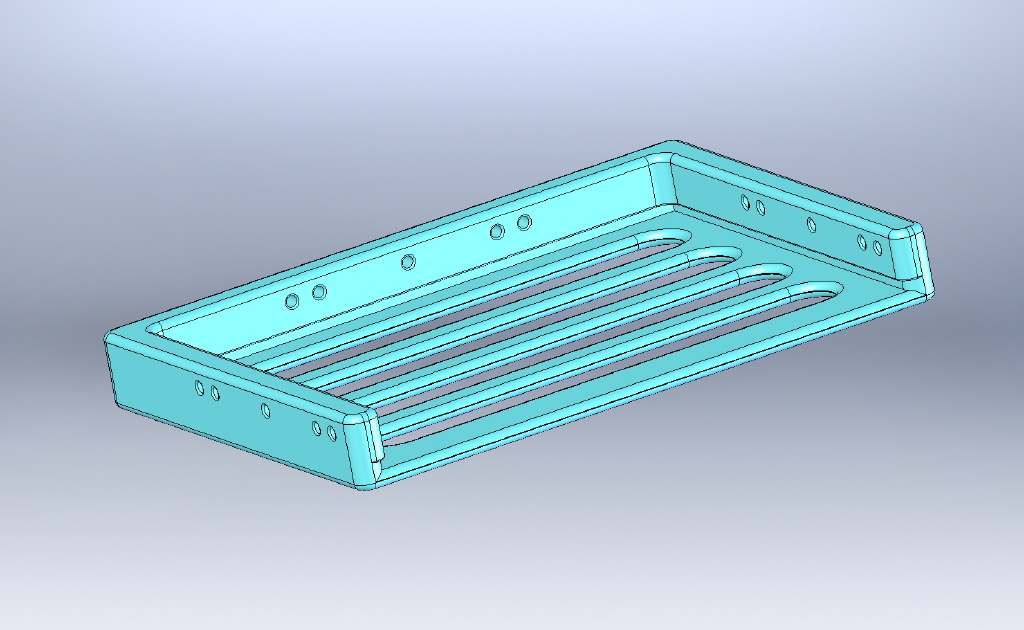

This view of the fixture shows how it keys onto the lip around the speaker enclosure. This keying action secures the fixture into proper location making it significantly easier to make the modifications withouht having to fight holding the fixture into proper location during the 3 drilling operations.

2/20/2015 1:37:39 PM

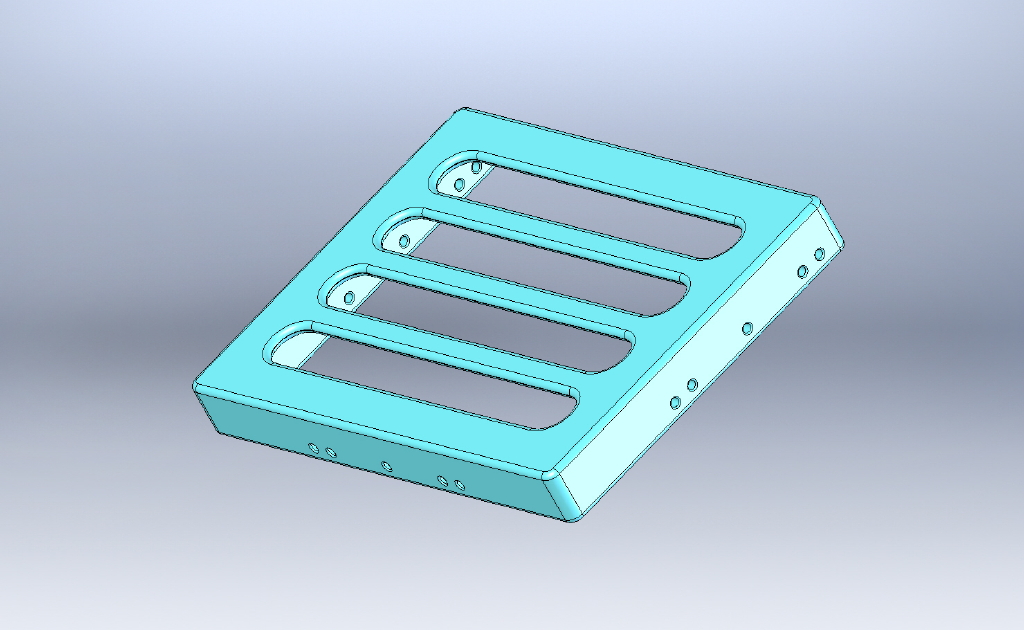

qpd2008_drill bushing fixture4

2/20/2015 1:37:39 PM

20150220_123145

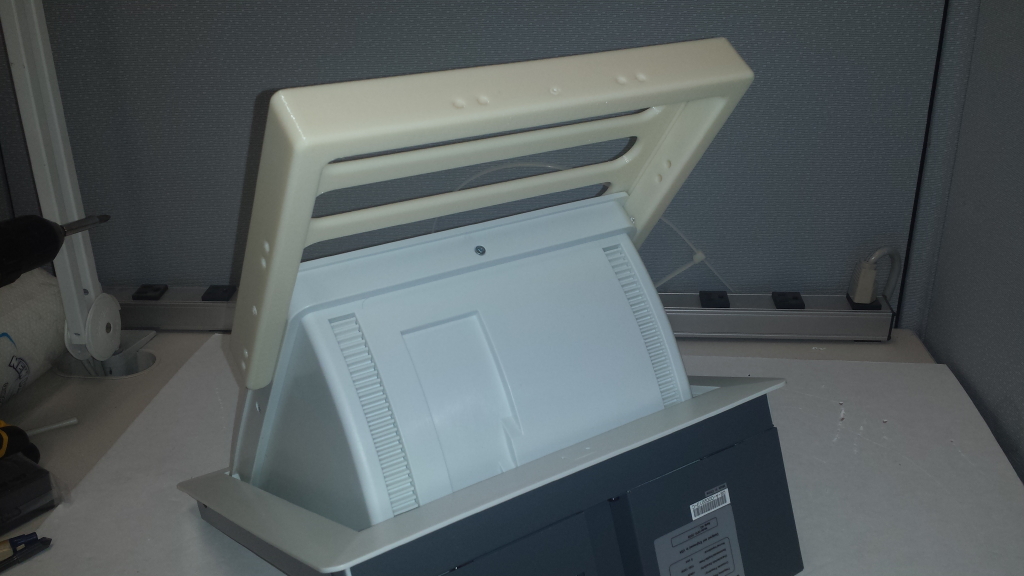

Fixture being slid into positon on the enclosure

SAMSUNG-SGH-I337
2/20/2015 12:31:45 PM

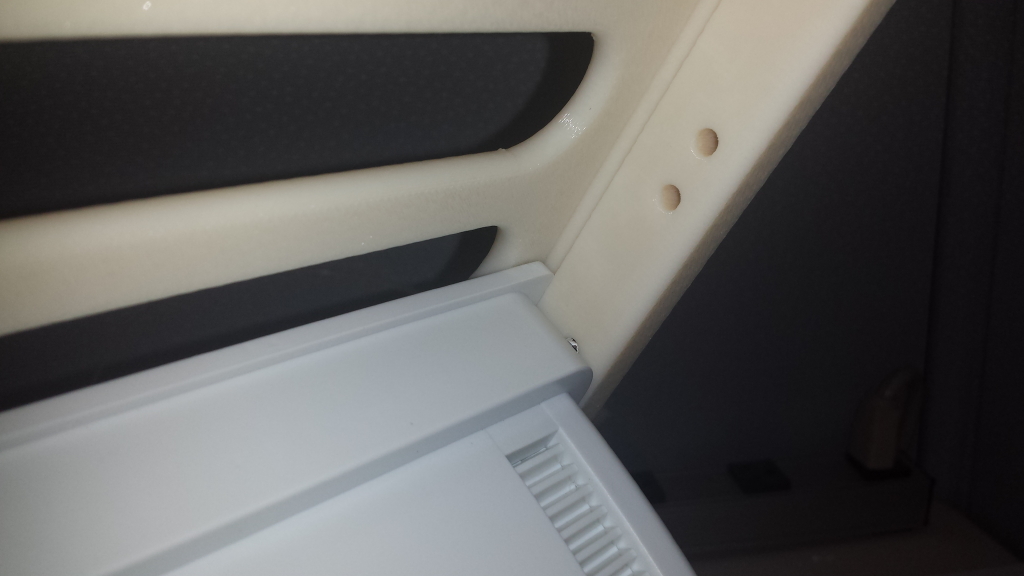

20150220_123157

A nice shot of the speaker lip engaging the  groove in the fixture.

SAMSUNG-SGH-I337
2/20/2015 12:31:56 PM

20150220_123334

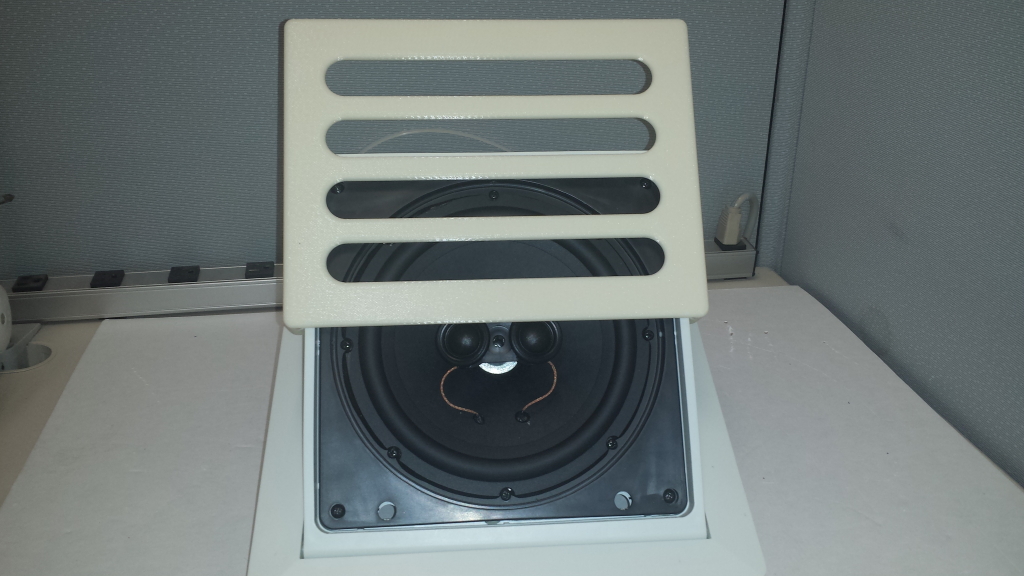

With the fixture halfway in position, you can already see the warp disappearing on the sides

SAMSUNG-SGH-I337
2/20/2015 12:33:33 PM

20150220_123343

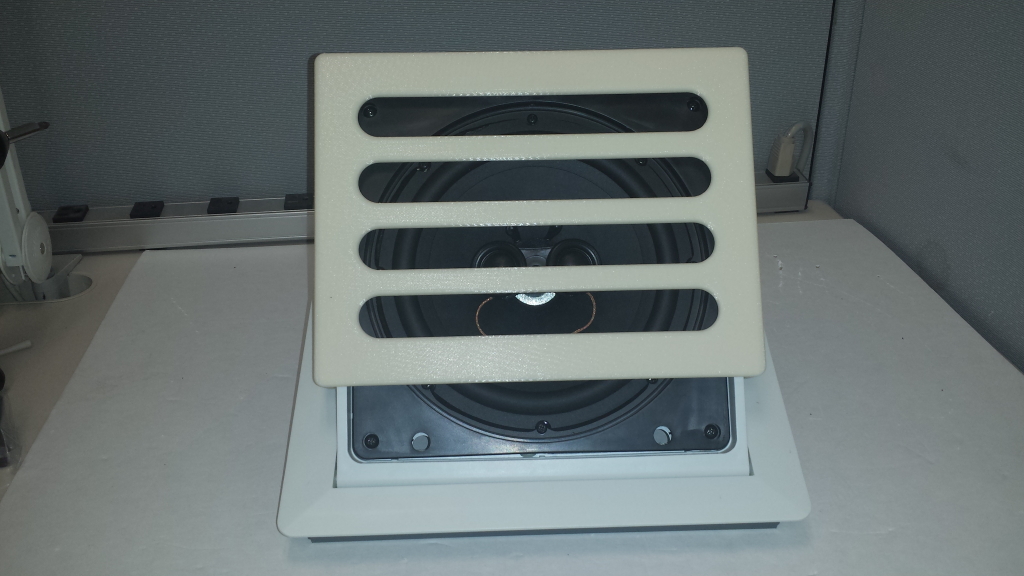

In the home position ready for modification

SAMSUNG-SGH-I337
2/20/2015 12:33:43 PM

20150220_123412

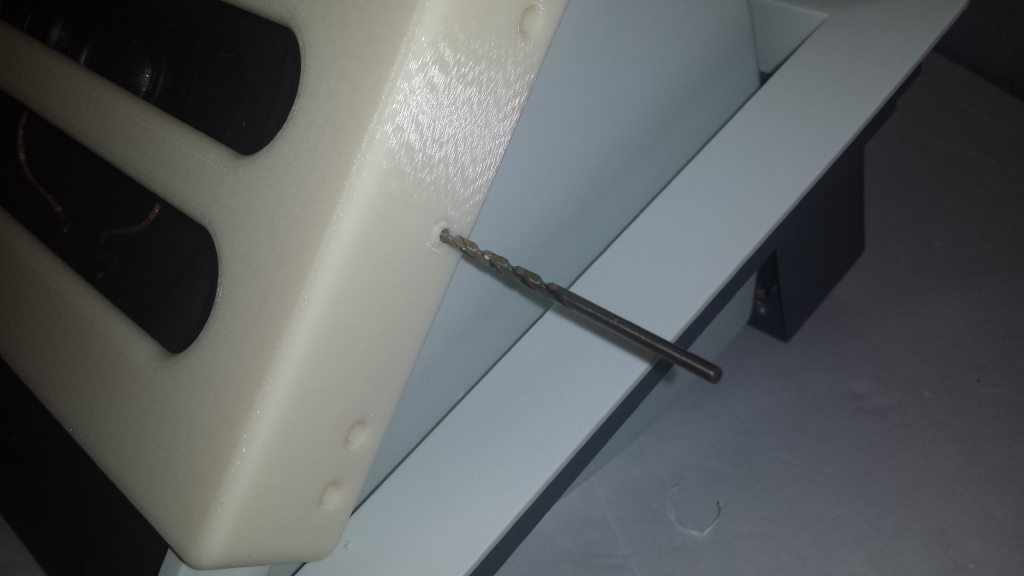

Drill bit started in the drill bushing

SAMSUNG-SGH-I337
2/20/2015 12:34:12 PM

20150220_123446

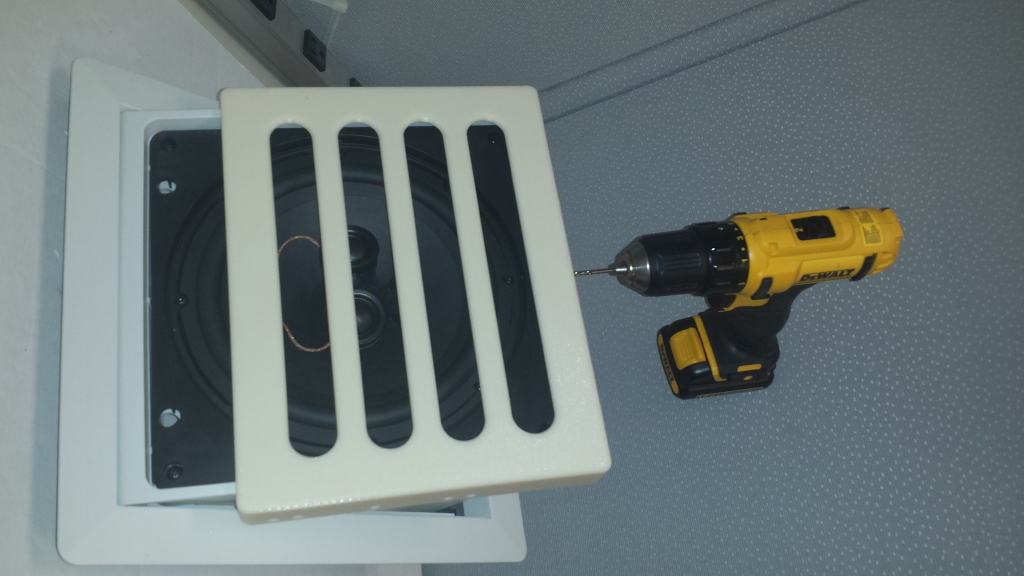

Drilling operation

SAMSUNG-SGH-I337
2/20/2015 12:34:45 PM

20150220_123913

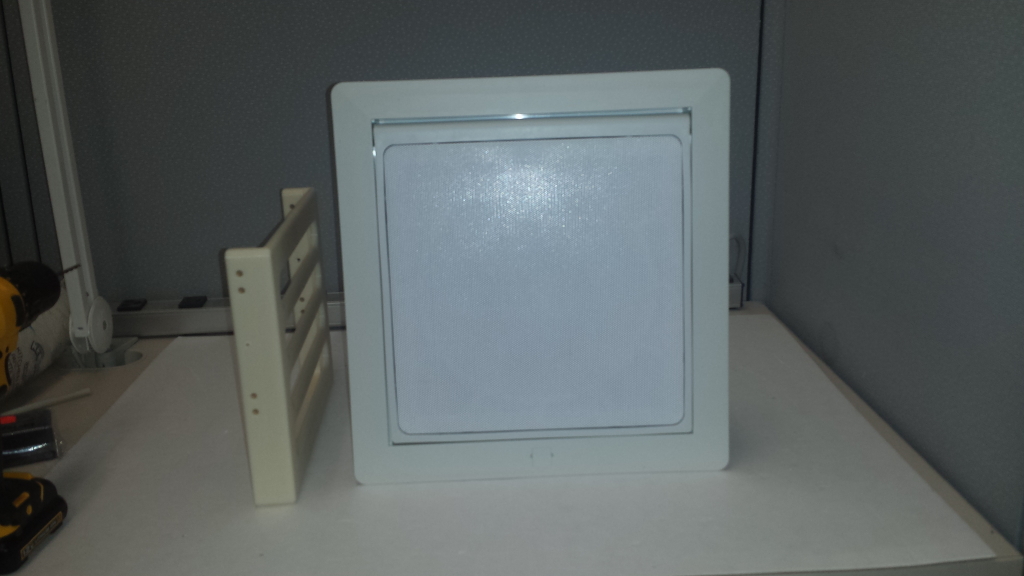

Completed modification, not completely perfect but much less noticeable now.

SAMSUNG-SGH-I337
2/20/2015 12:39:12 PM

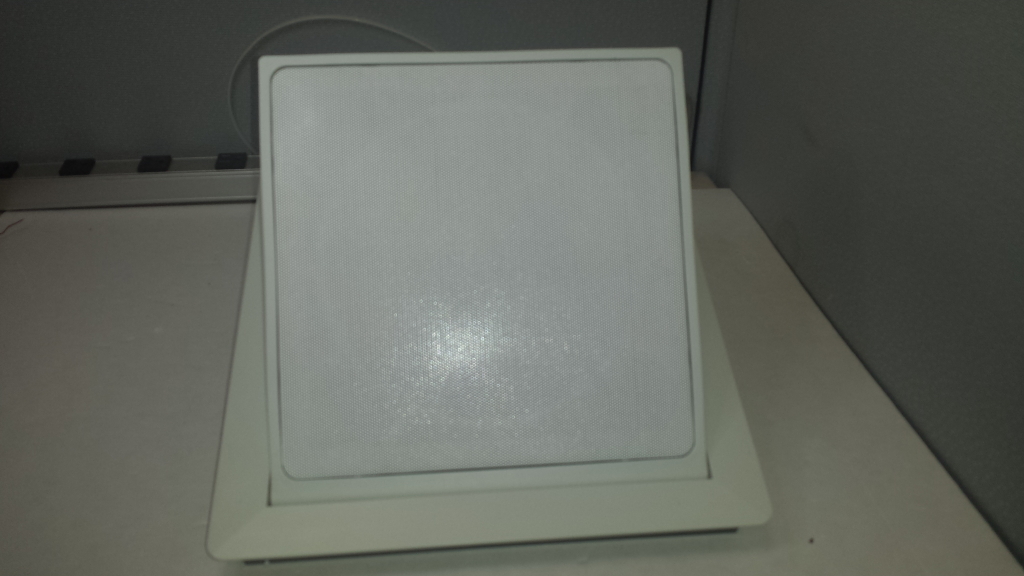

20150220_122912

SAMSUNG-SGH-I337
2/20/2015 12:29:10 PM

20150220_122929

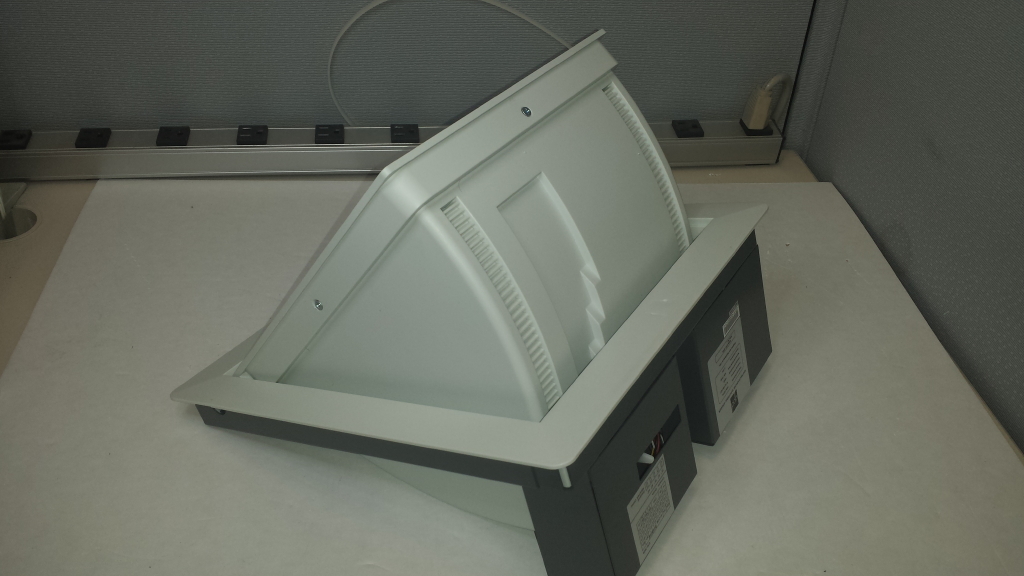

A shot of the screws installed.

SAMSUNG-SGH-I337
2/20/2015 12:29:29 PM

20150220_122934

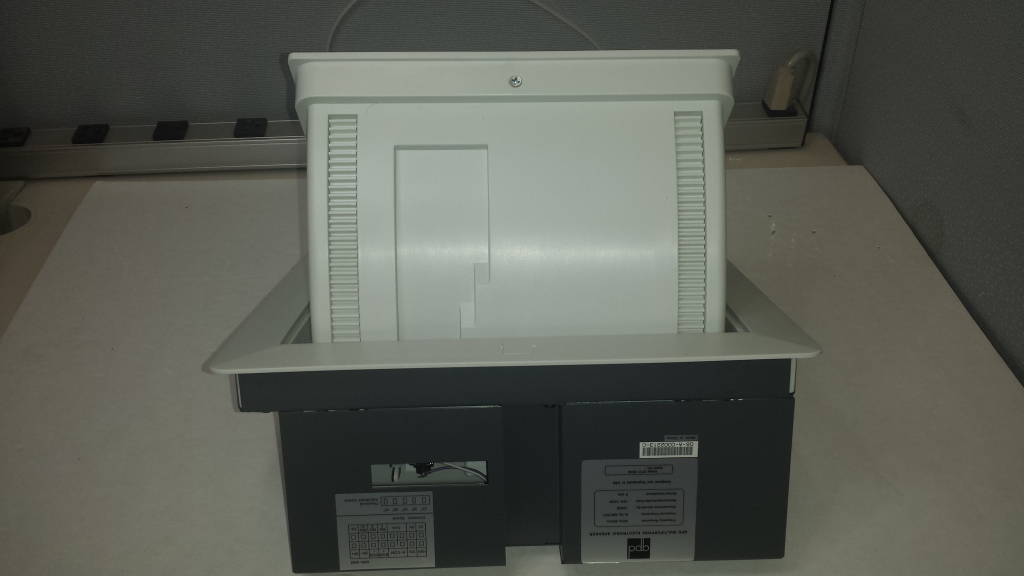

A shot of the screws installed.

SAMSUNG-SGH-I337
2/20/2015 12:29:34 PM

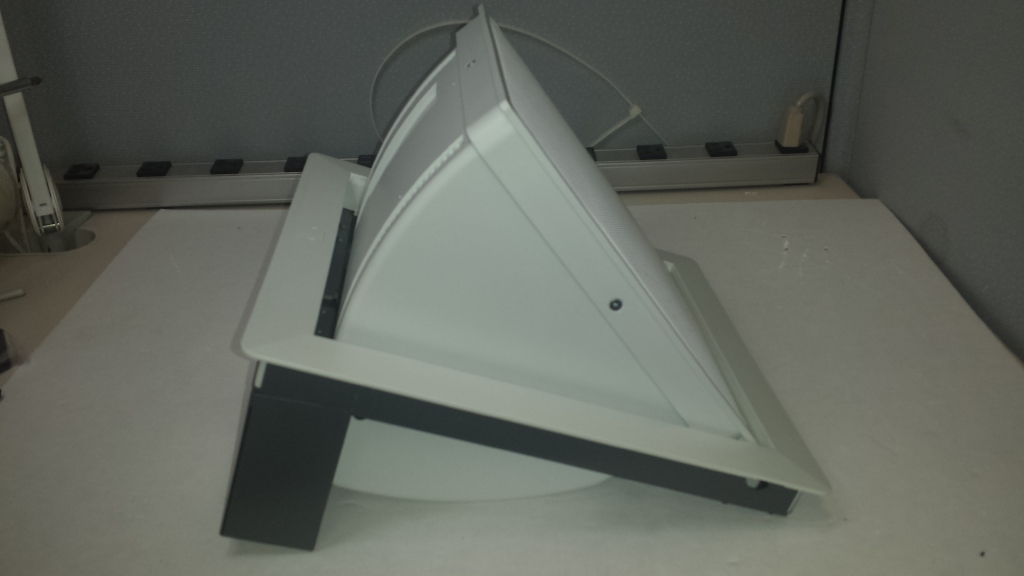

20150220_122946

A shot of the screws installed.

SAMSUNG-SGH-I337
2/20/2015 12:29:42 PM

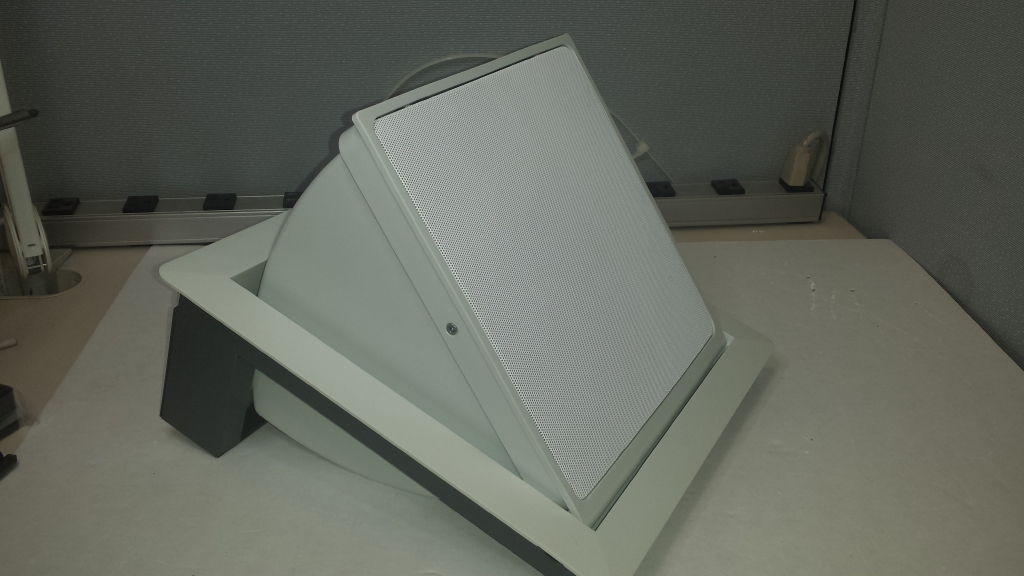

20150220_122952

A yet another shot of the screws installed.

SAMSUNG-SGH-I337
2/20/2015 12:29:52 PM

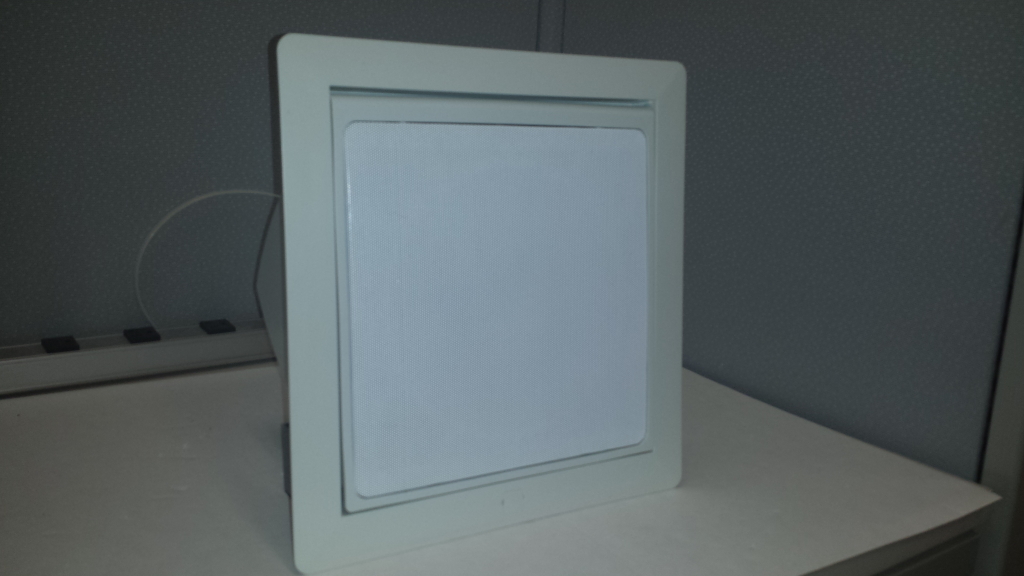

20150220_123054

SAMSUNG-SGH-I337
2/20/2015 12:30:54 PM

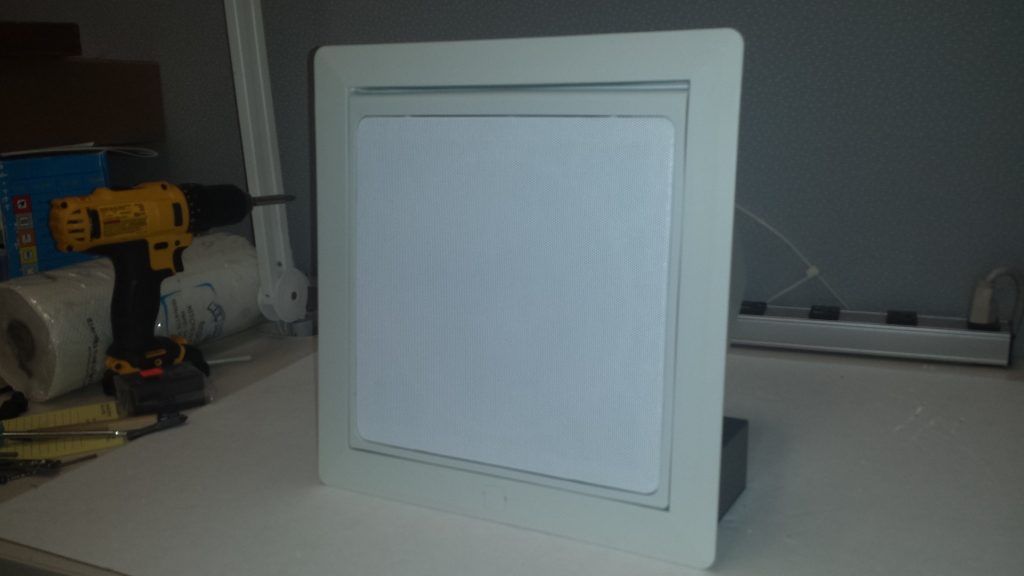

20150220_123100

SAMSUNG-SGH-I337
2/20/2015 12:31:00 PM

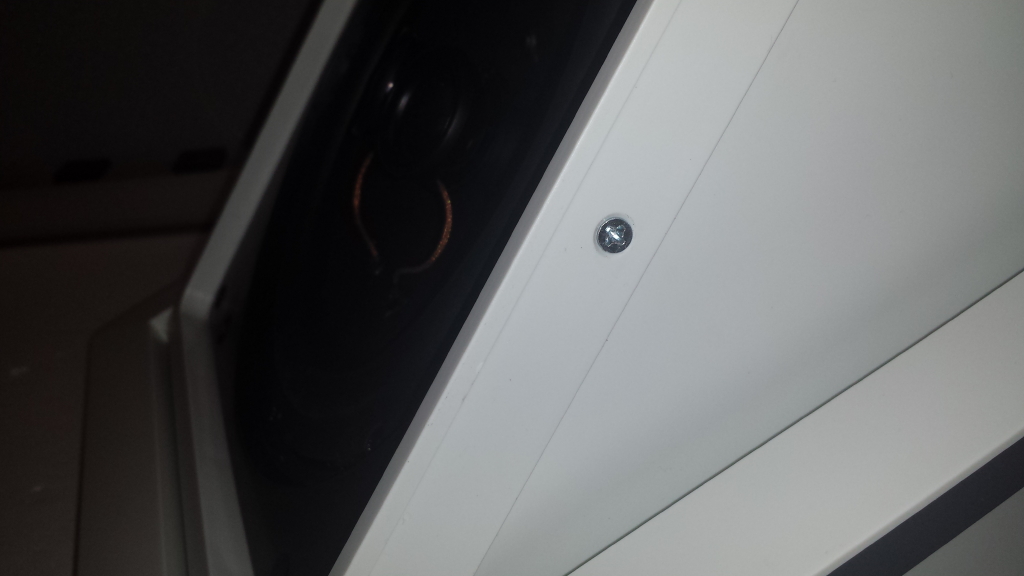

20150220_123534

SAMSUNG-SGH-I337
2/20/2015 12:35:34 PM

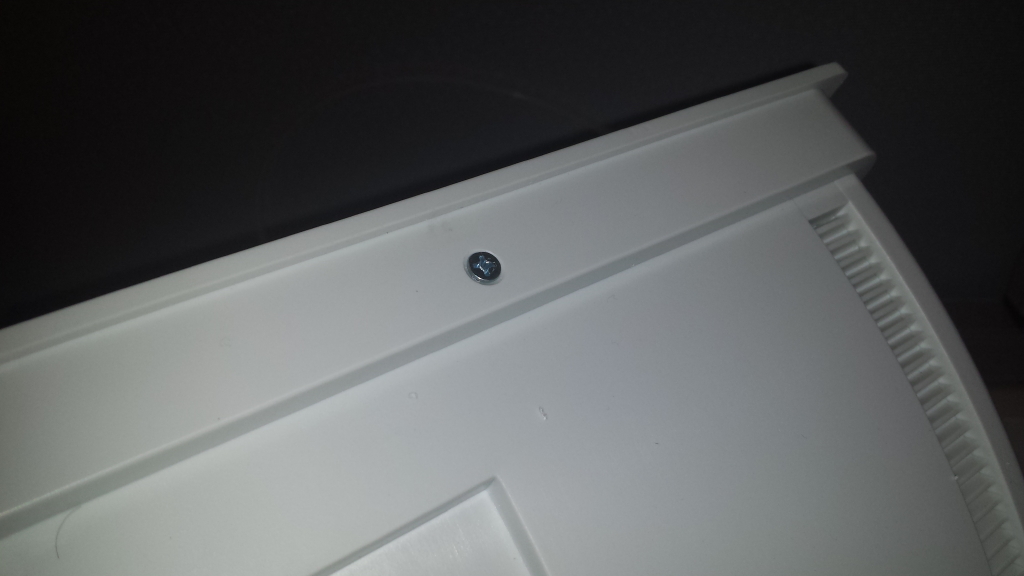

20150220_123545

SAMSUNG-SGH-I337
2/20/2015 12:35:44 PM

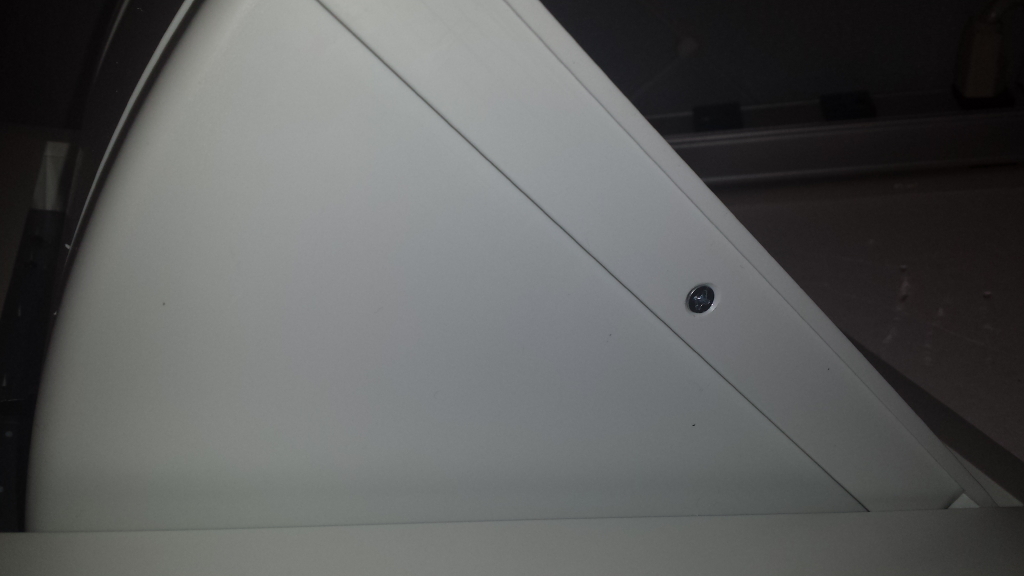

20150220_123552

SAMSUNG-SGH-I337
2/20/2015 12:35:52 PM

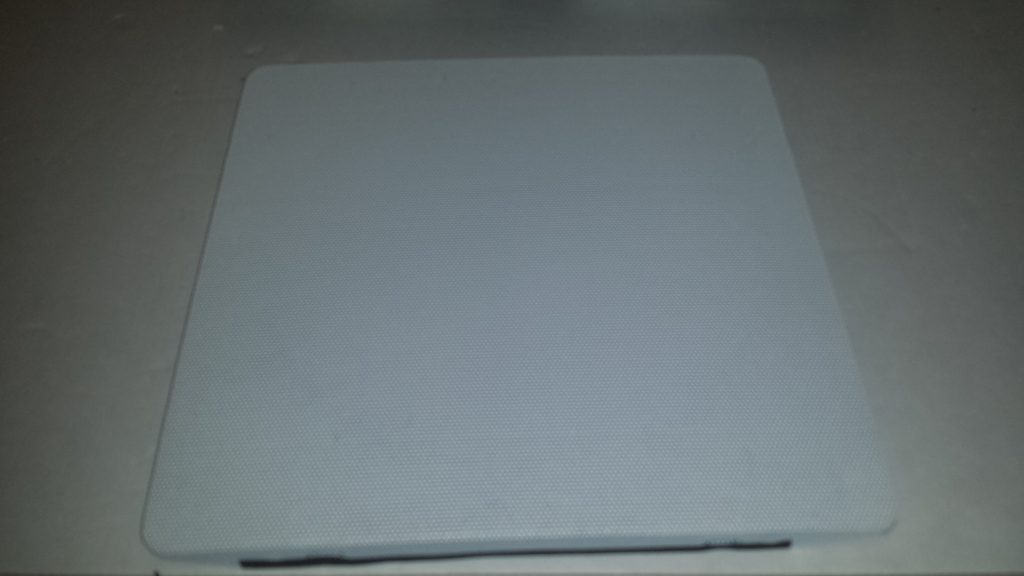

20150220_123735

SAMSUNG-SGH-I337
2/20/2015 12:37:35 PM

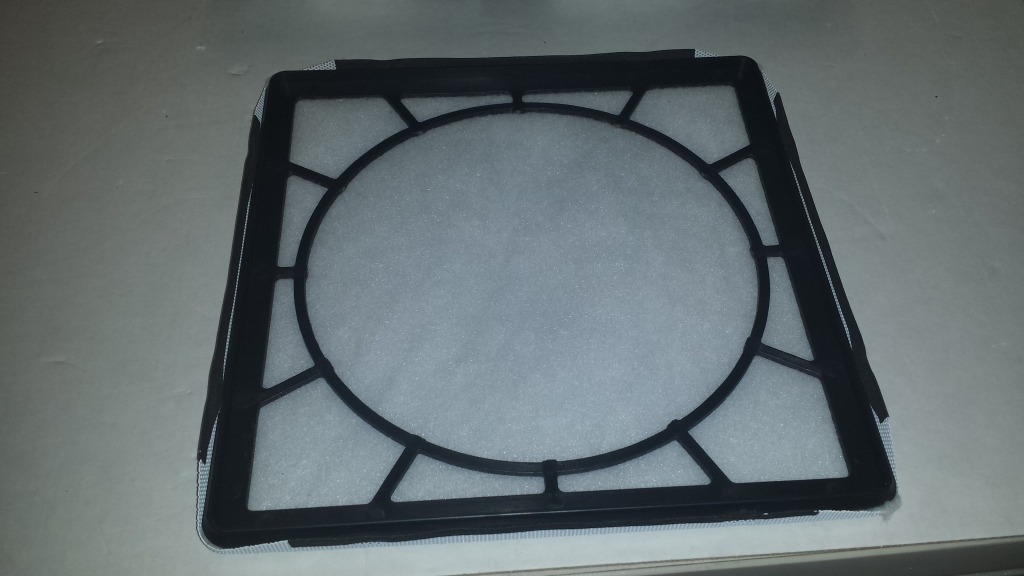

20150220_123747

SAMSUNG-SGH-I337
2/20/2015 12:37:46 PM

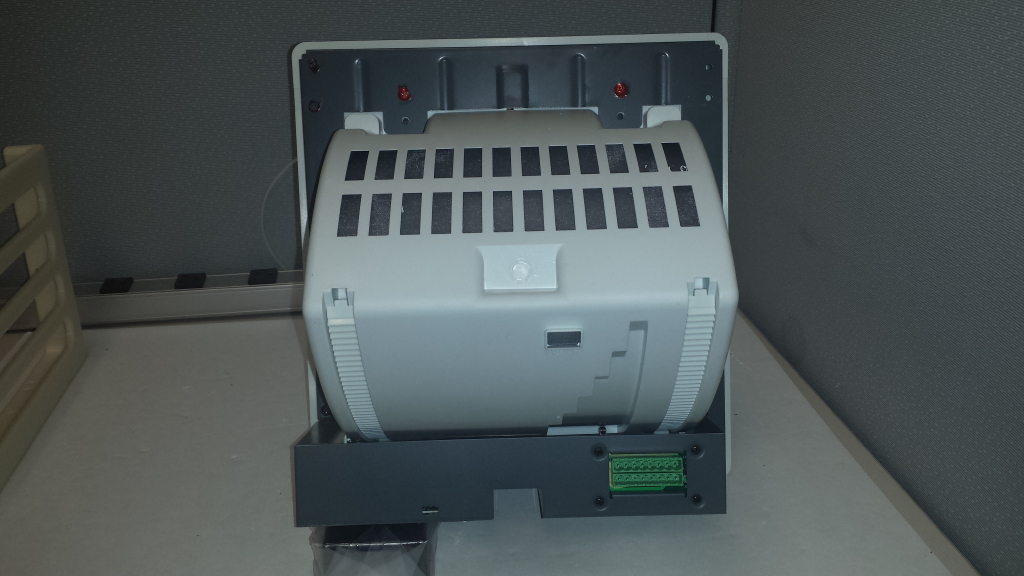

20150220_123955

SAMSUNG-SGH-I337
2/20/2015 12:39:55 PM

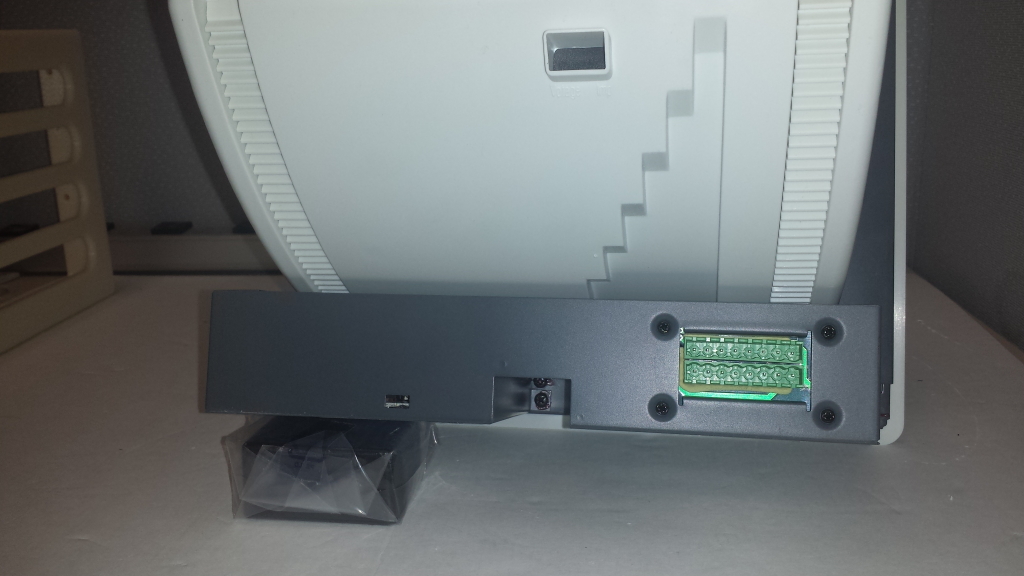

20150220_124005

SAMSUNG-SGH-I337
2/20/2015 12:40:04 PM

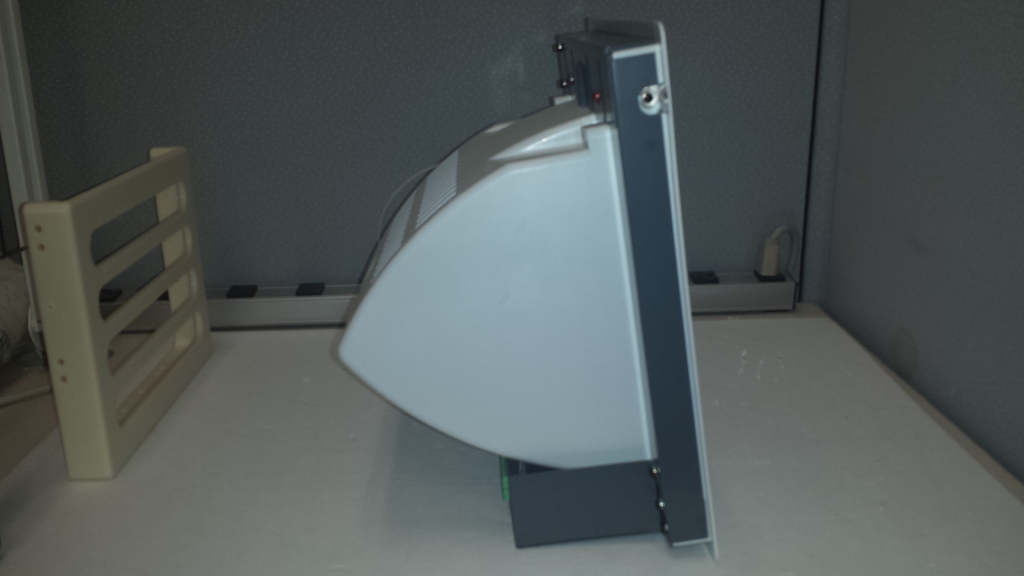

20150220_124020

SAMSUNG-SGH-I337
2/20/2015 12:40:19 PM

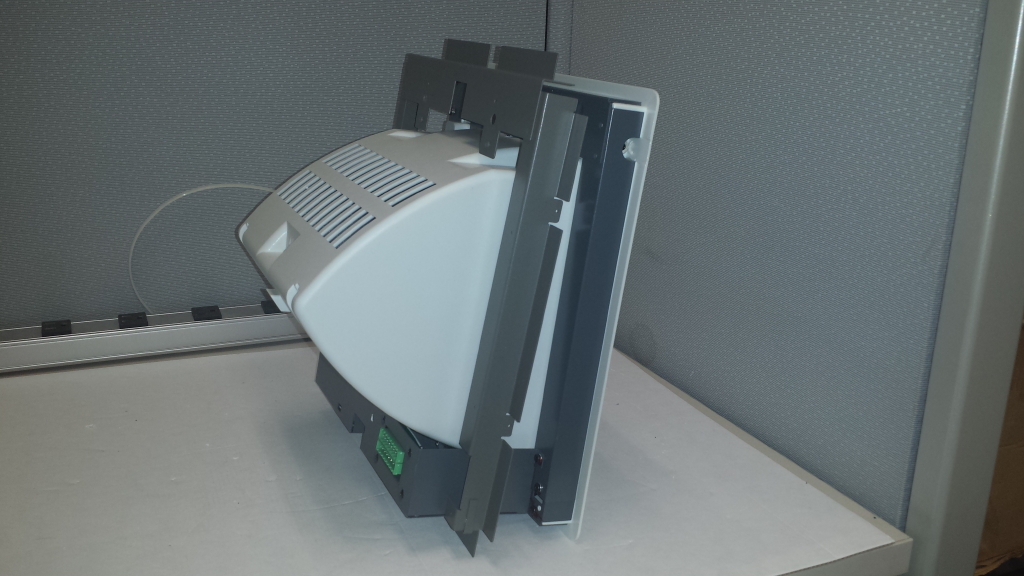

20150220_124040

SAMSUNG-SGH-I337
2/20/2015 12:40:40 PM

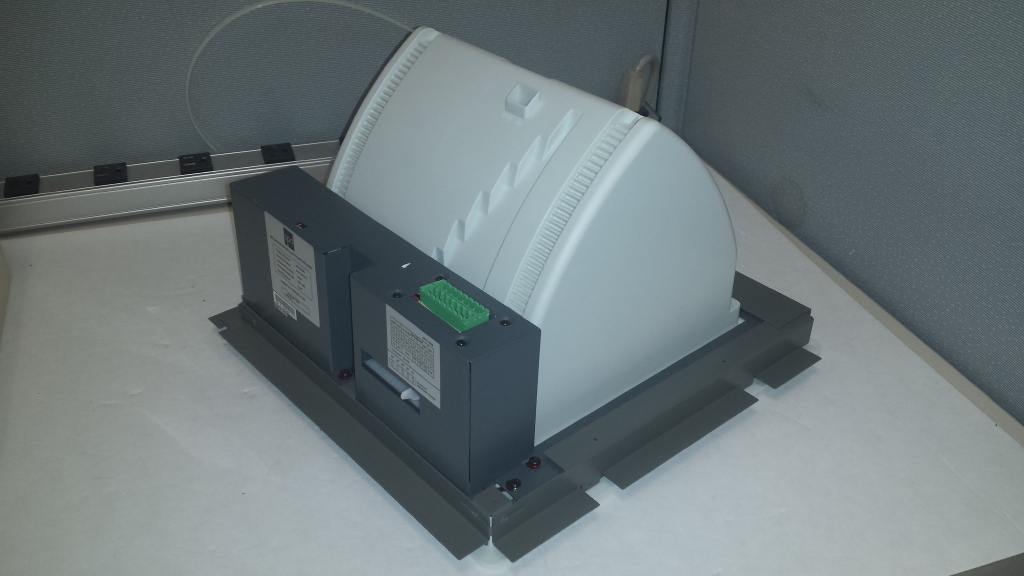

20150220_124058

SAMSUNG-SGH-I337
2/20/2015 12:40:58 PM

20150217_195331

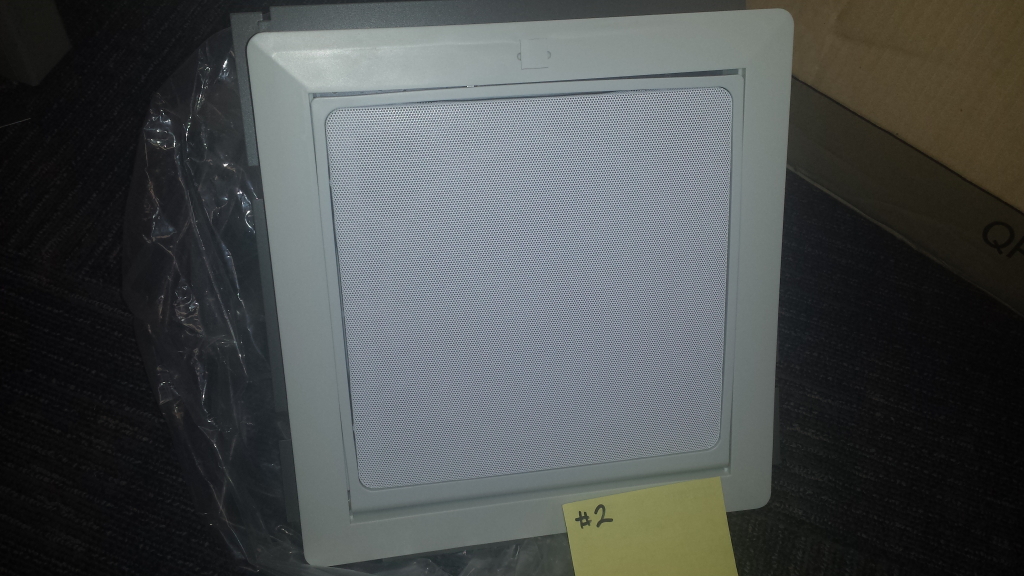

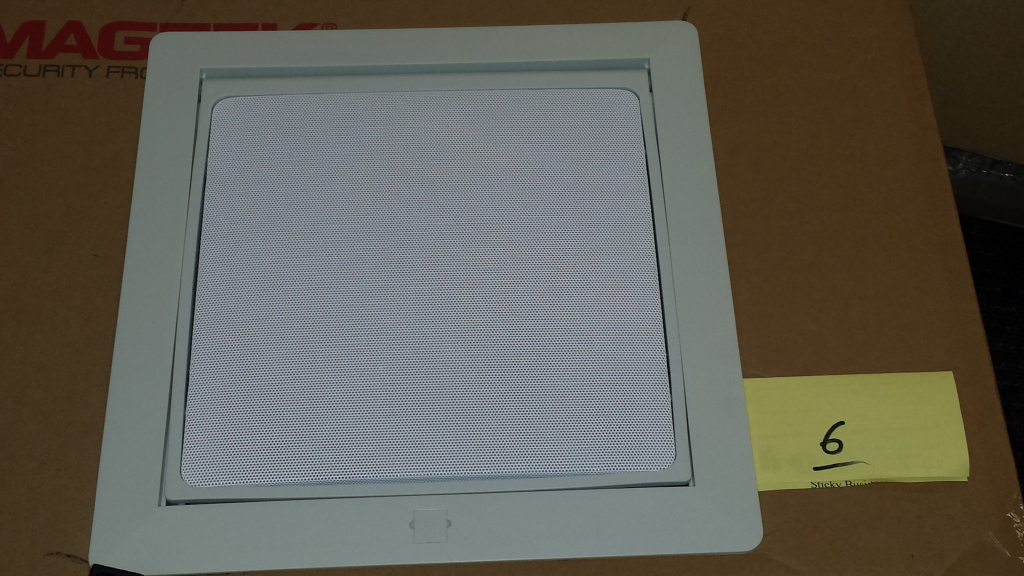

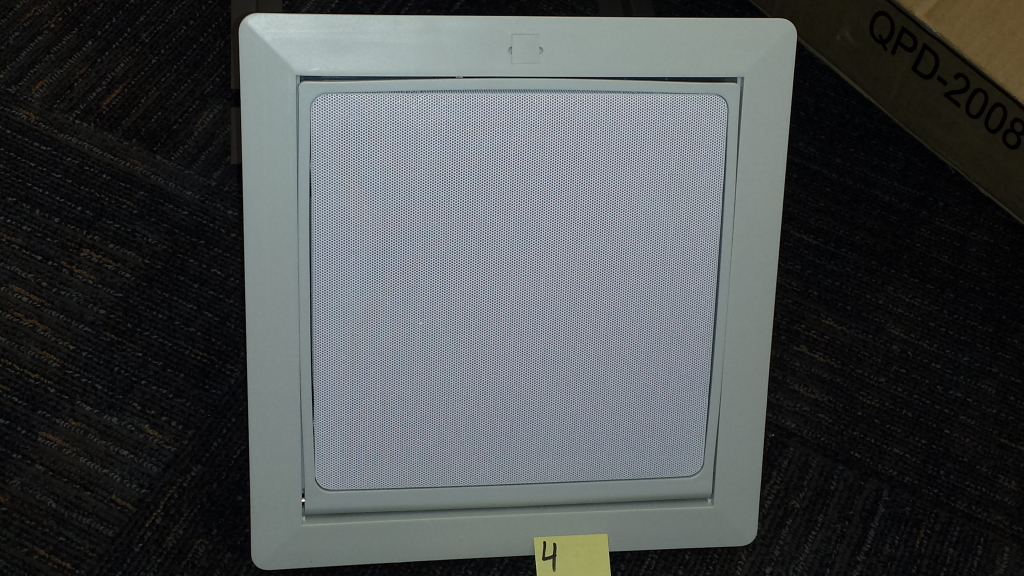

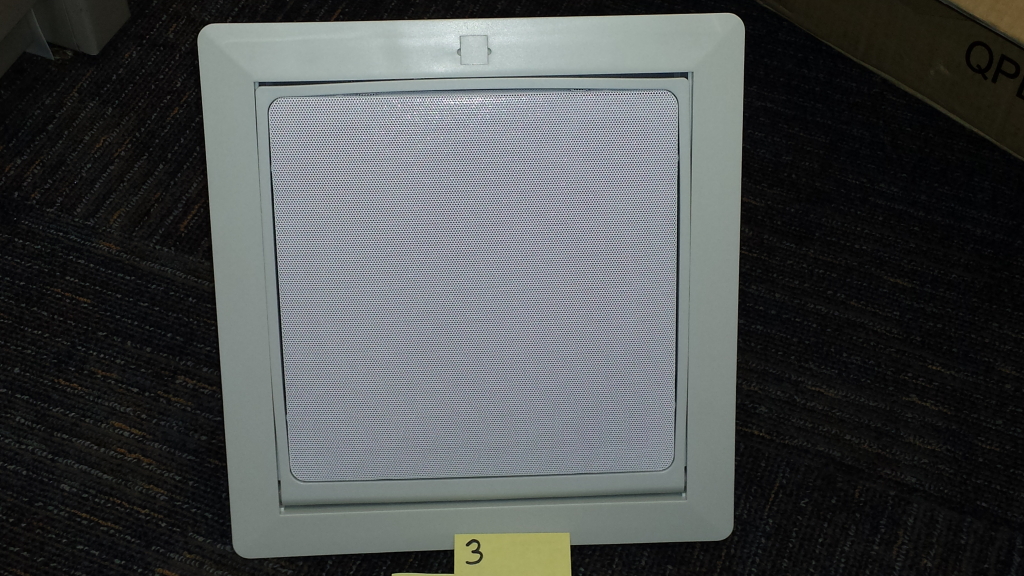

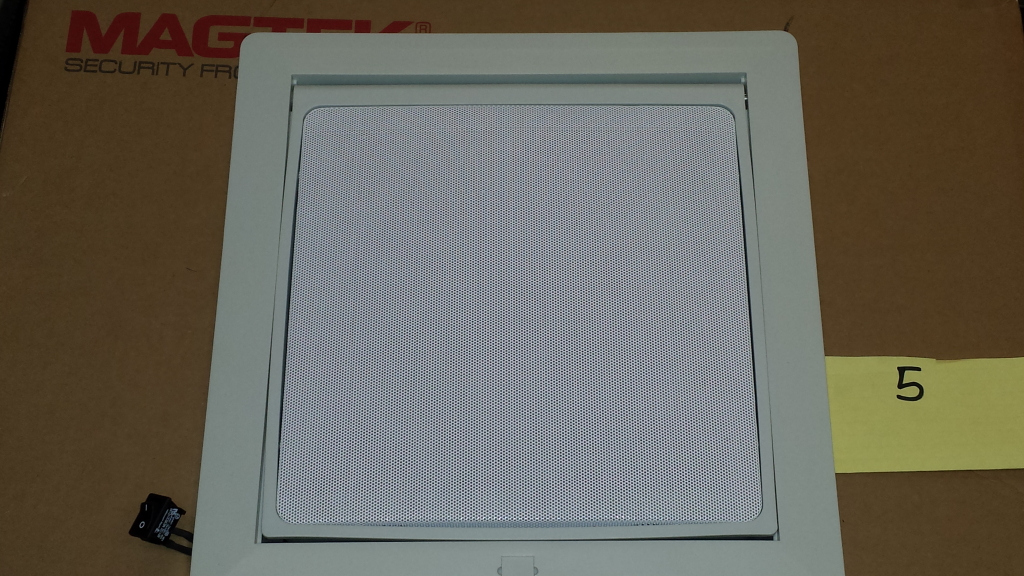

The next 5 pictures show warped speakers before the modification

SAMSUNG-SGH-I337
2/17/2015 7:53:30 PM

20150217_200134

SAMSUNG-SGH-I337
2/17/2015 8:01:34 PM

20150217_200708

SAMSUNG-SGH-I337
2/17/2015 8:07:07 PM

20150217_203017

SAMSUNG-SGH-I337
2/17/2015 8:30:16 PM

20150217_203956

SAMSUNG-SGH-I337
2/17/2015 8:39:56 PM
