IMG_4895
|
|
|
|
Canon
PowerShot S5 IS
3/18/2009 5:21:04 PM
|
|

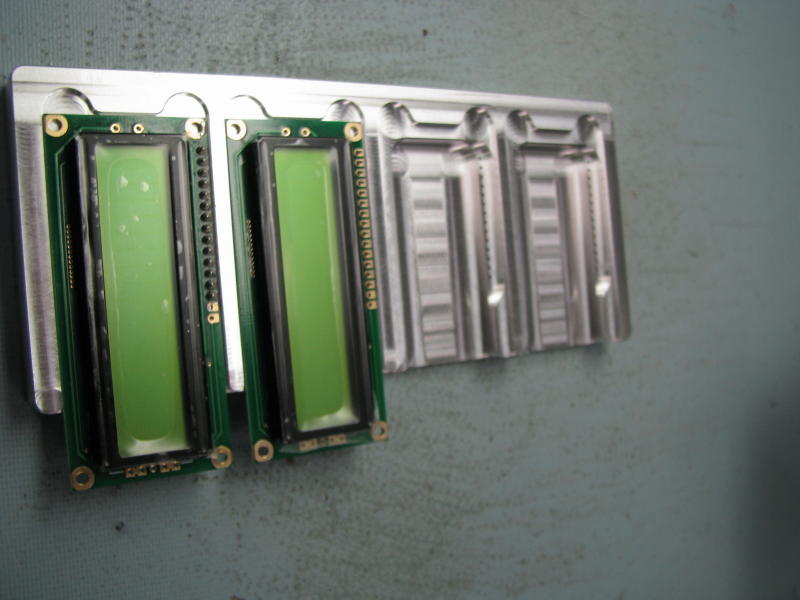

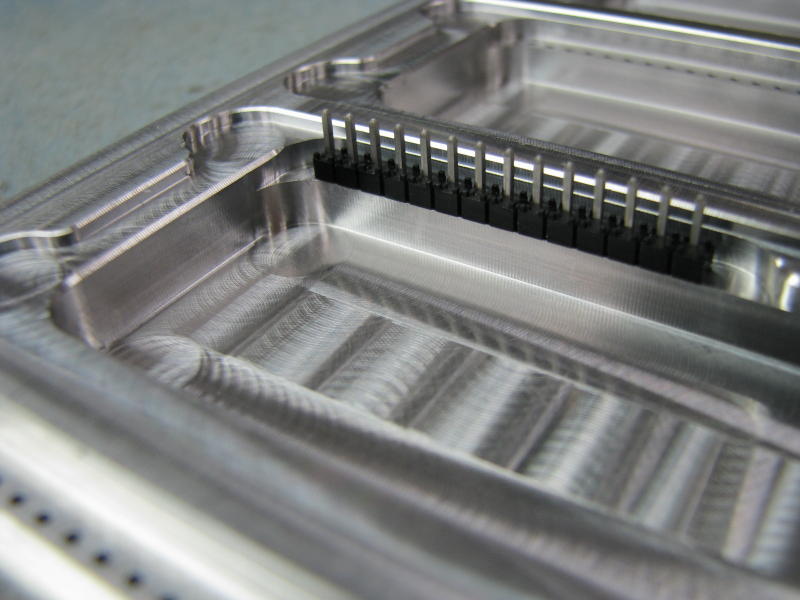

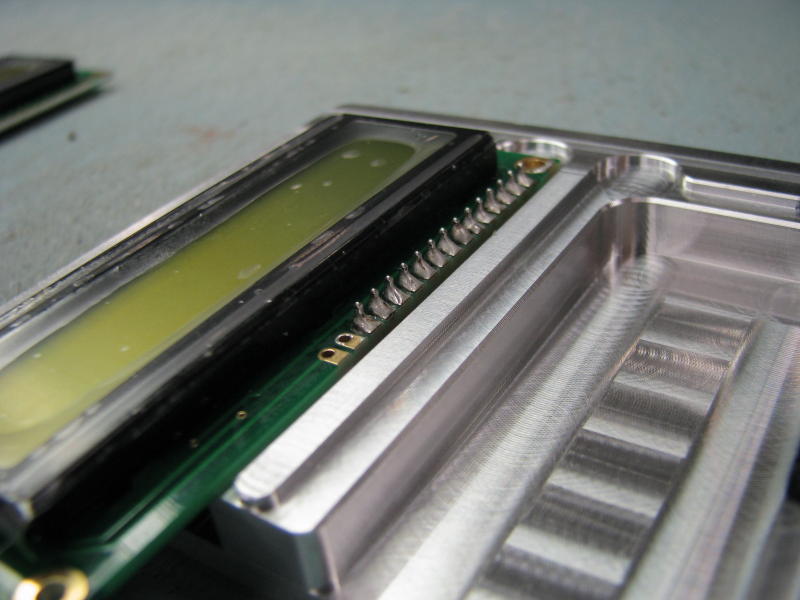

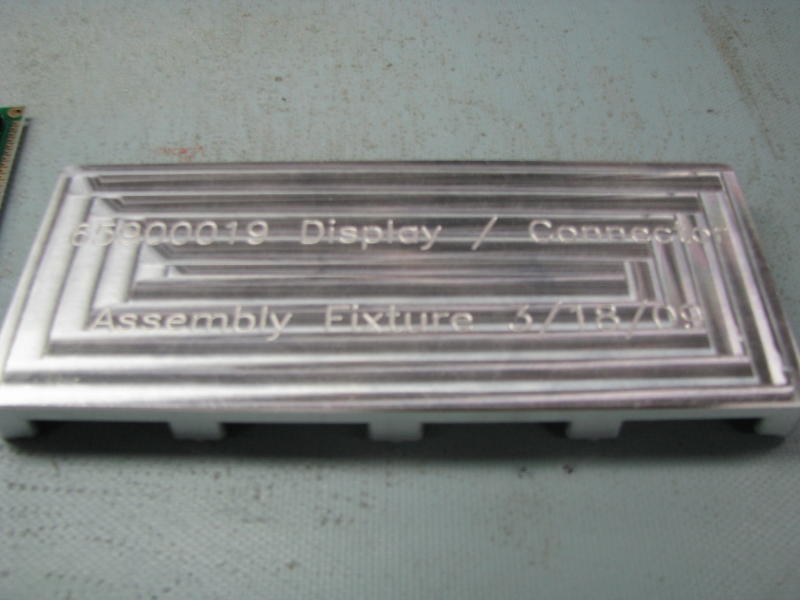

This production fixture is used
to solder the header pins onto the display module ensuring that the pins
stay perpendicular to the PCB

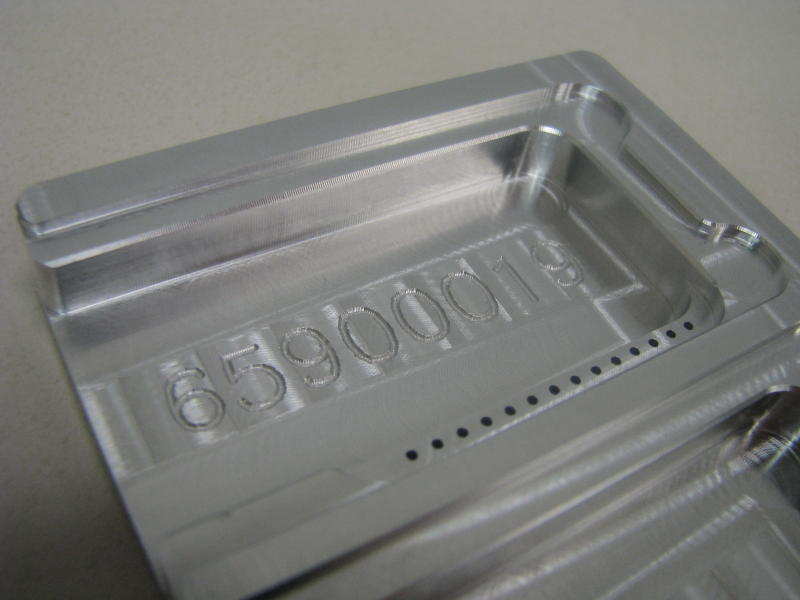

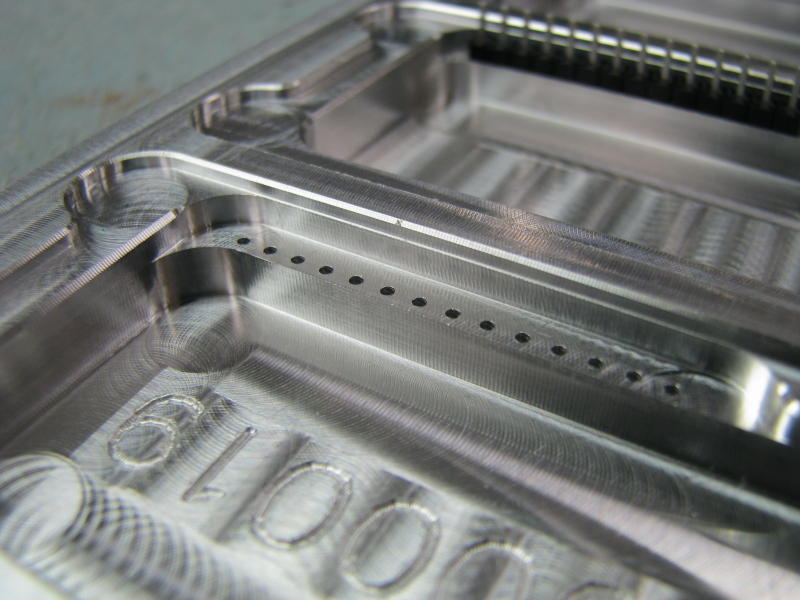

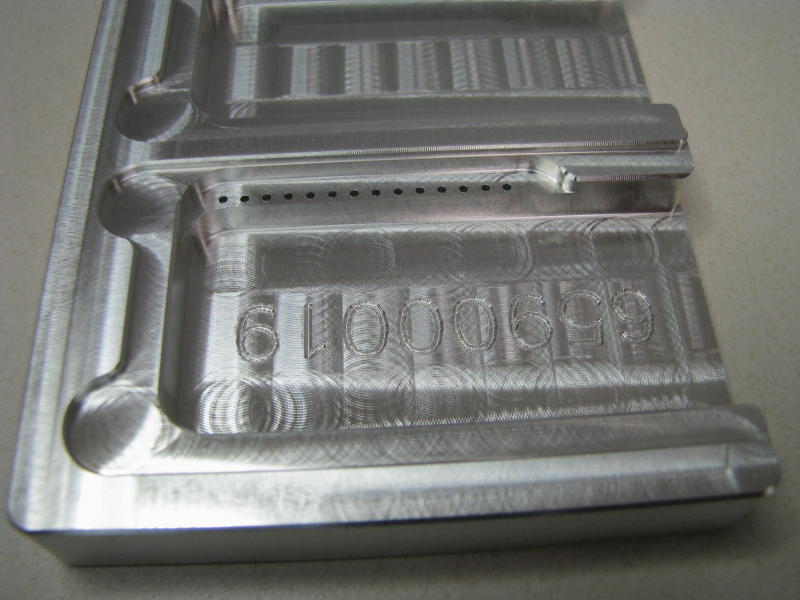

Notice all of the chamfered
edges and the engraved part number
|
|
|
