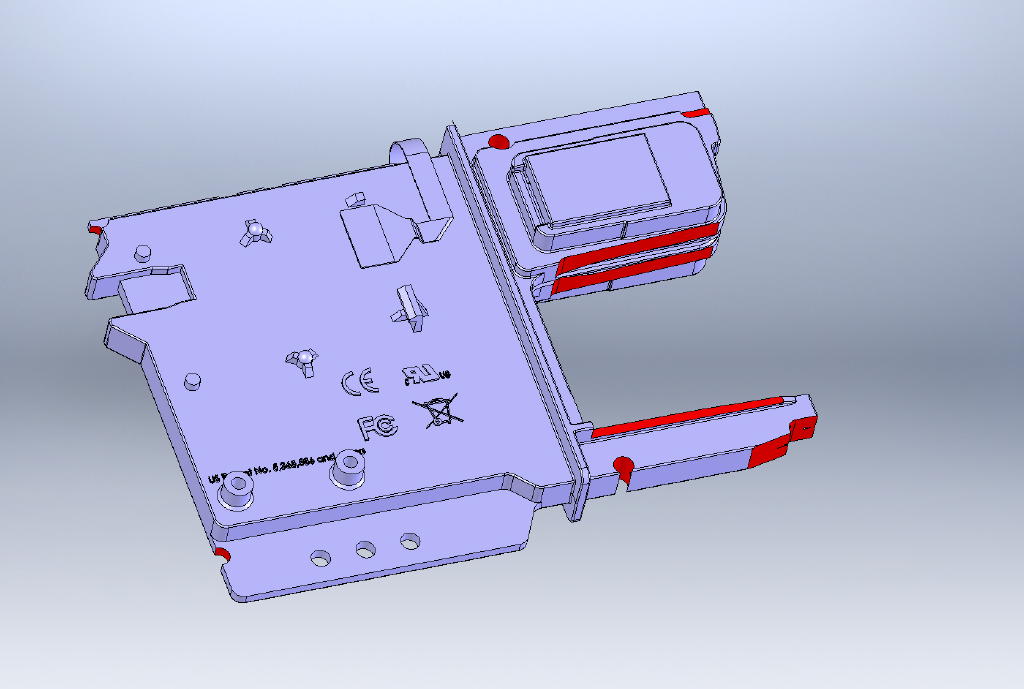

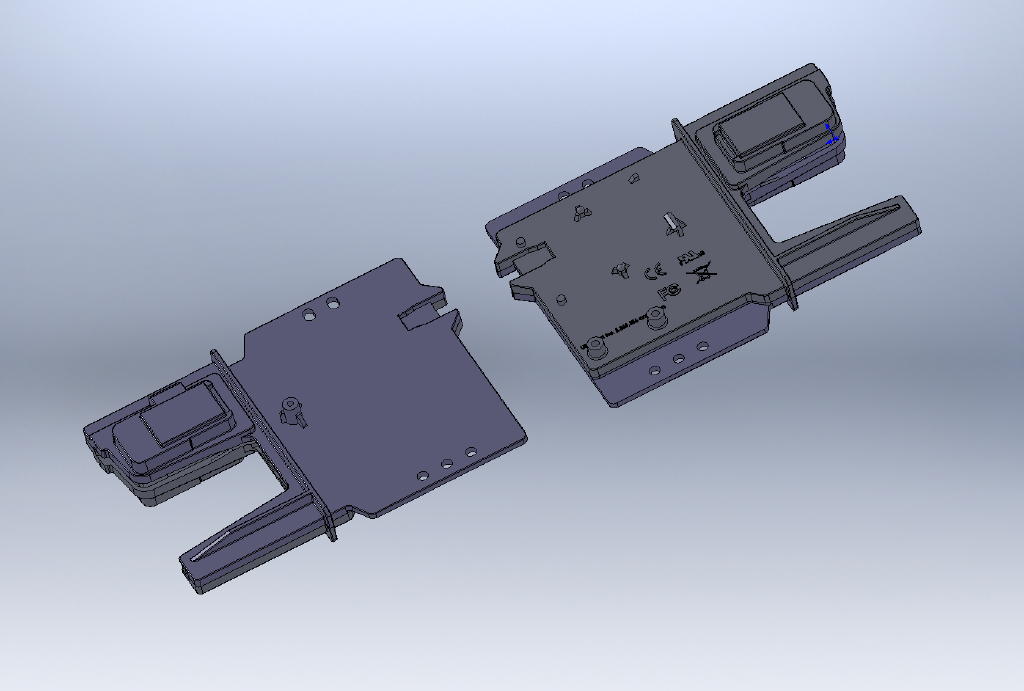

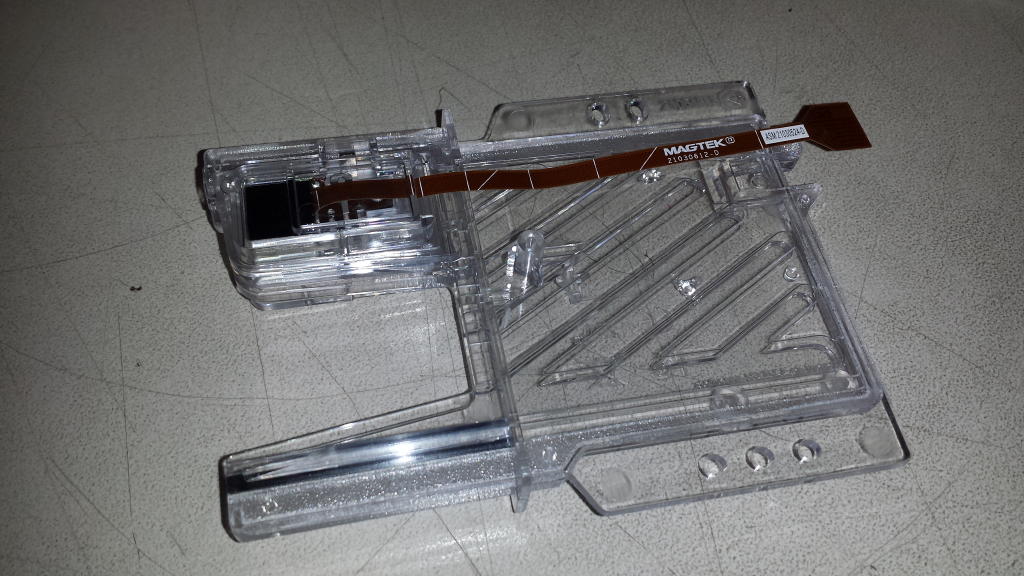

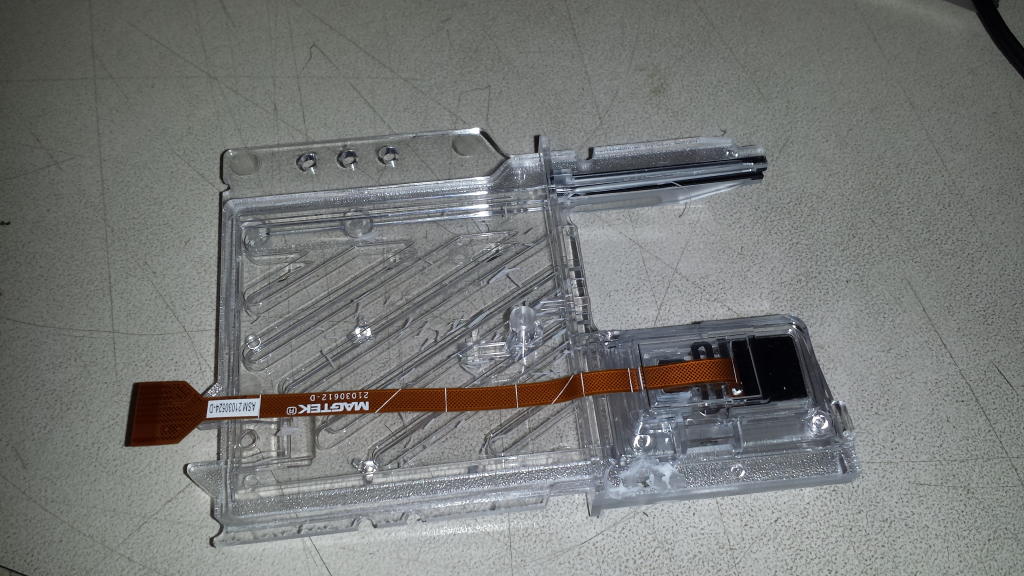

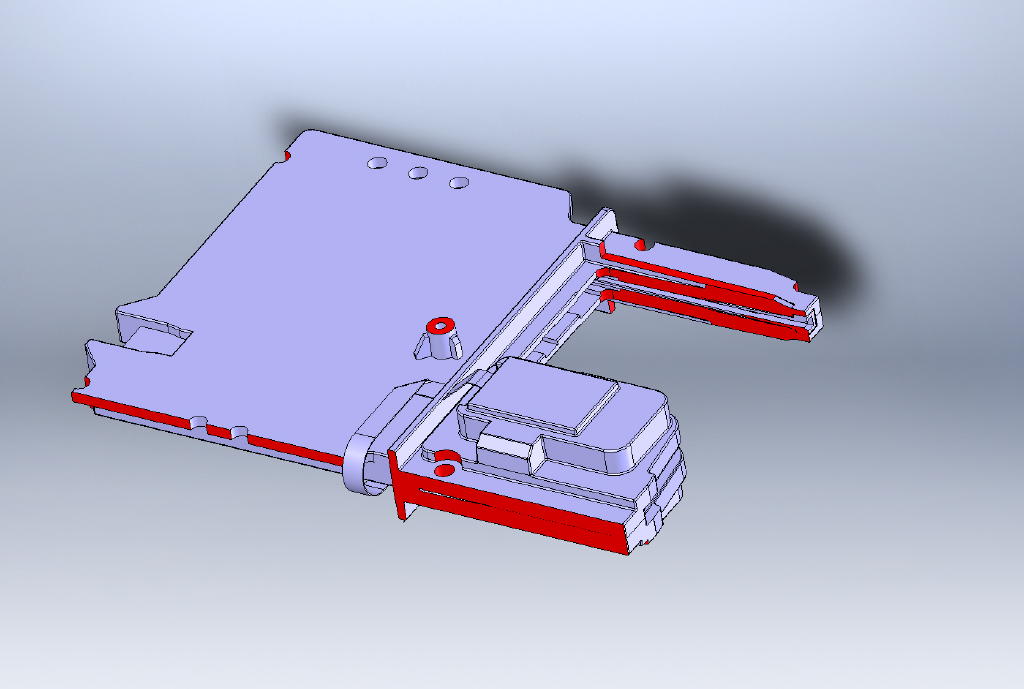

Need to remove material in
areas that are red from the ultrasonically welded injected molded
assembly shown below. Quantity of parts to be machined 1500 to 5000….
|
|
|
|
|
20160106_115035
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:50:35 AM
|
|
|
|
|
|
|
|
21064613-5-727a-2
|
|
|
|
01/06/16 12:38:17 PM
|
|
|
|
|

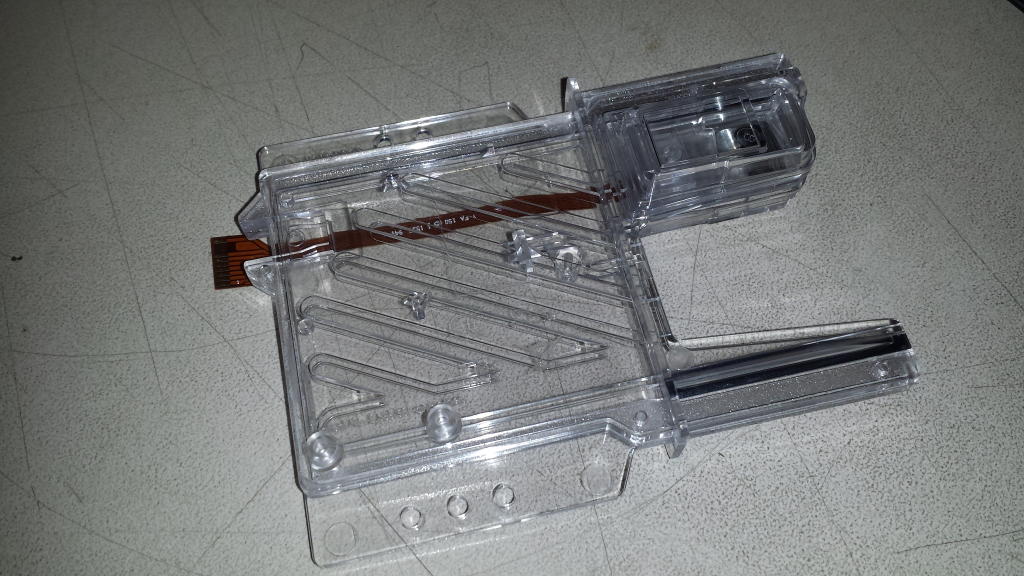

20160106_115048
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:50:47 AM
|
|
|
|
|
|
|
|
21064613-5-727a-8
|
|
|
|
01/06/16 12:38:17 PM
|
|
|
|
|
21064613-5-727a-6
|
|
|
|
|
01/06/16 12:38:17 PM

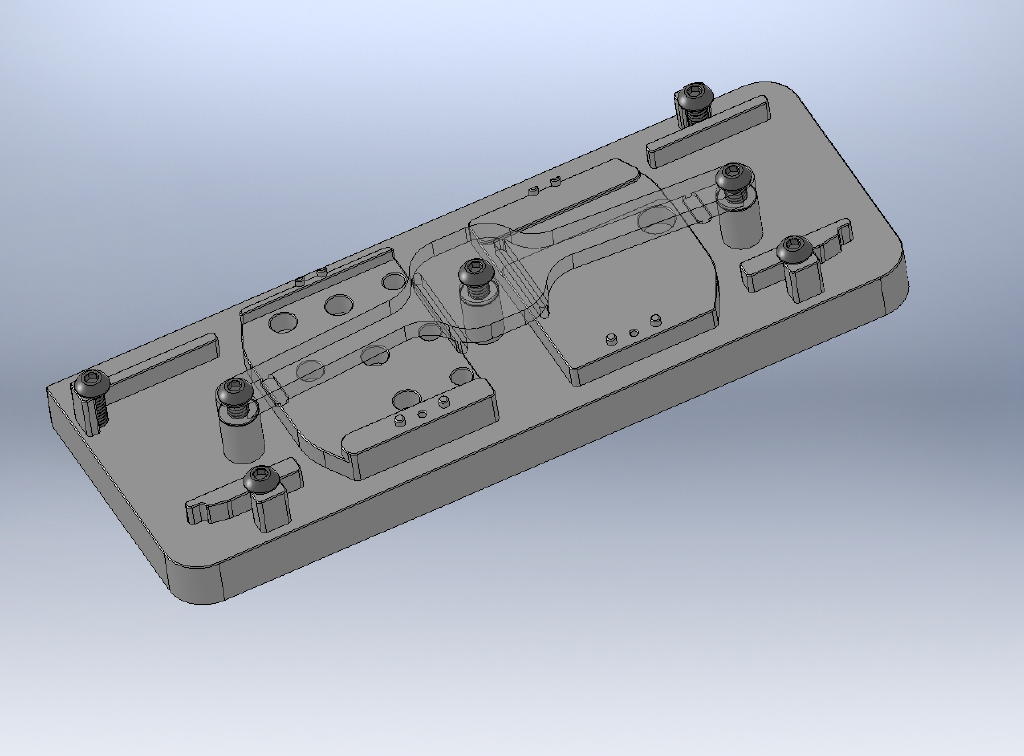

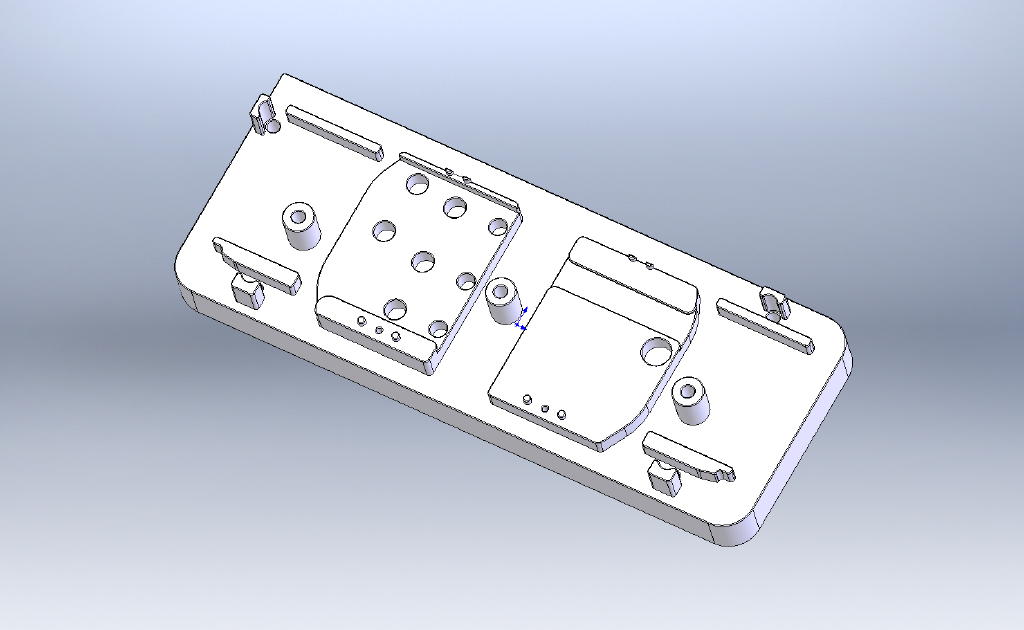

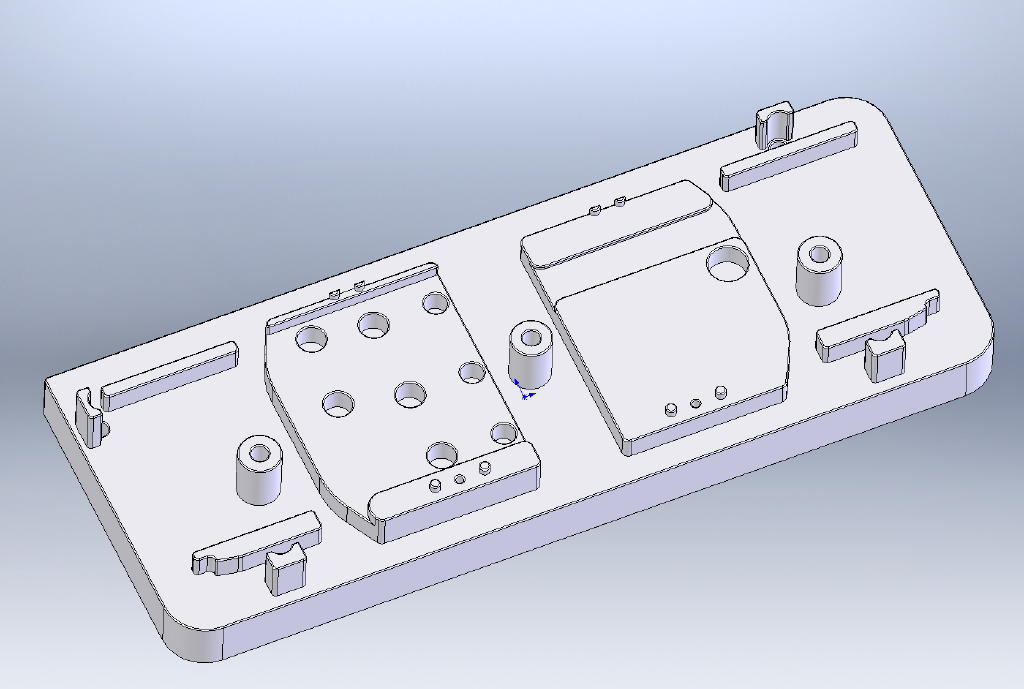

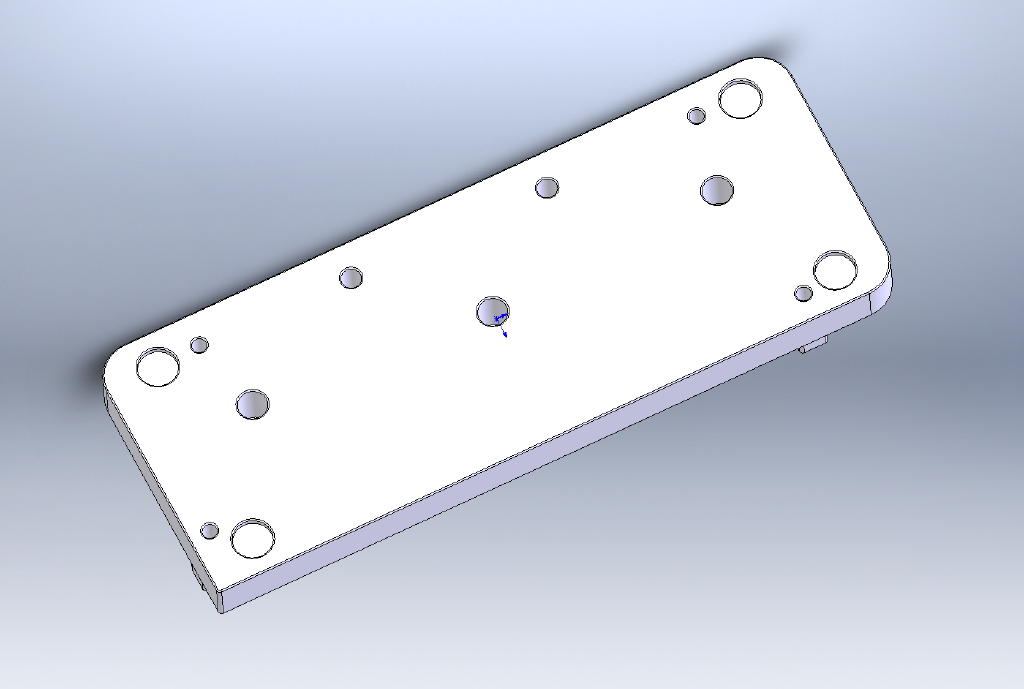

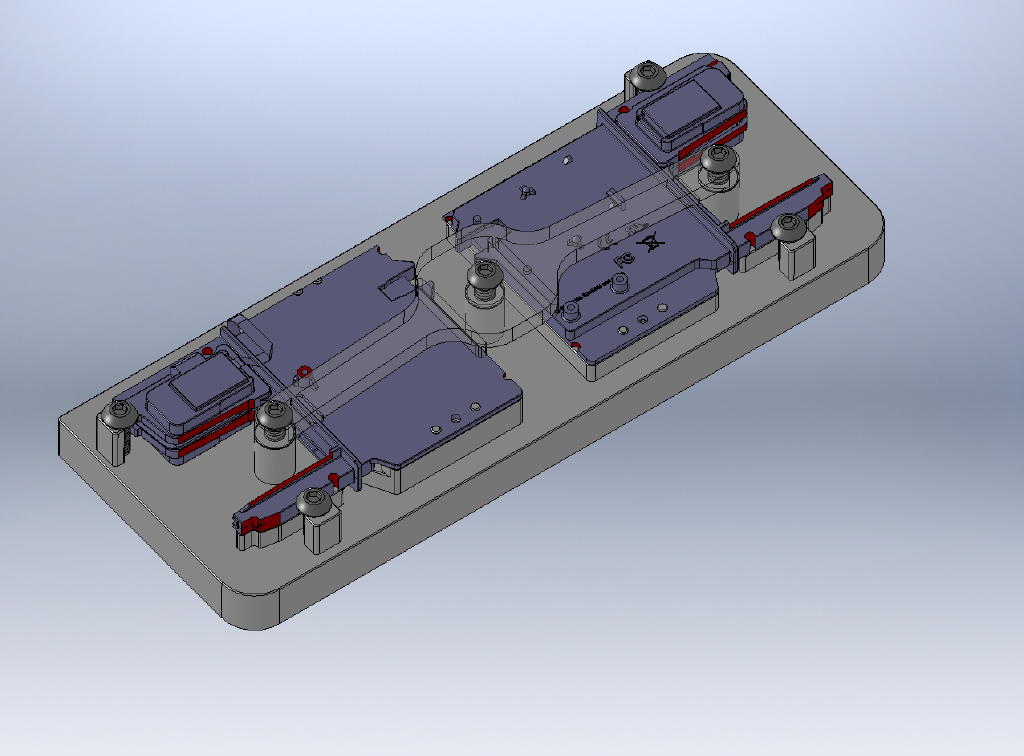

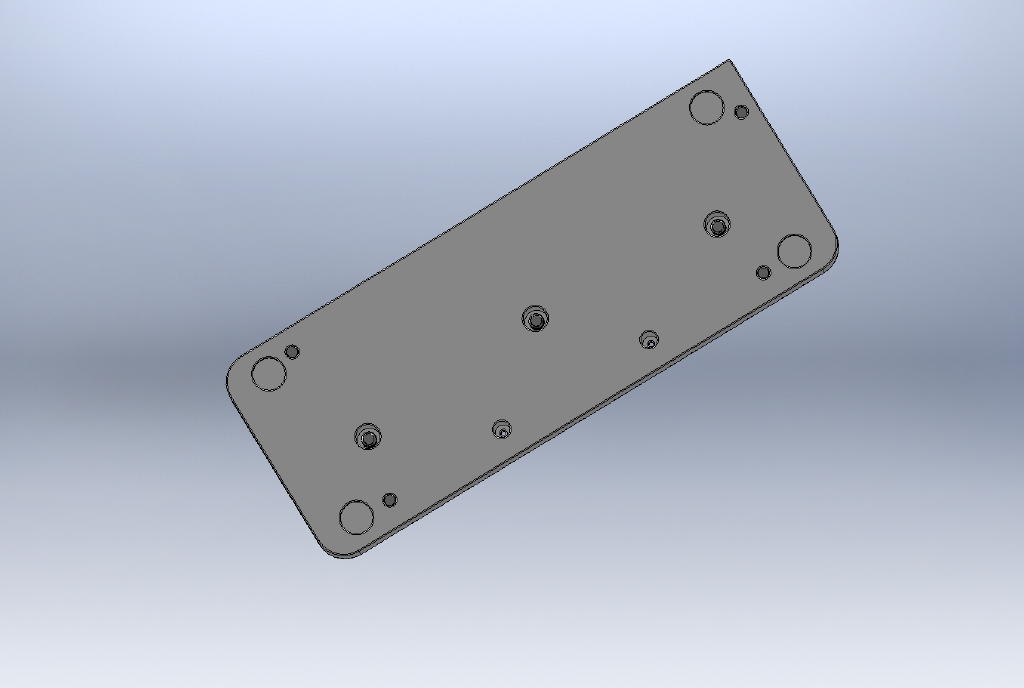

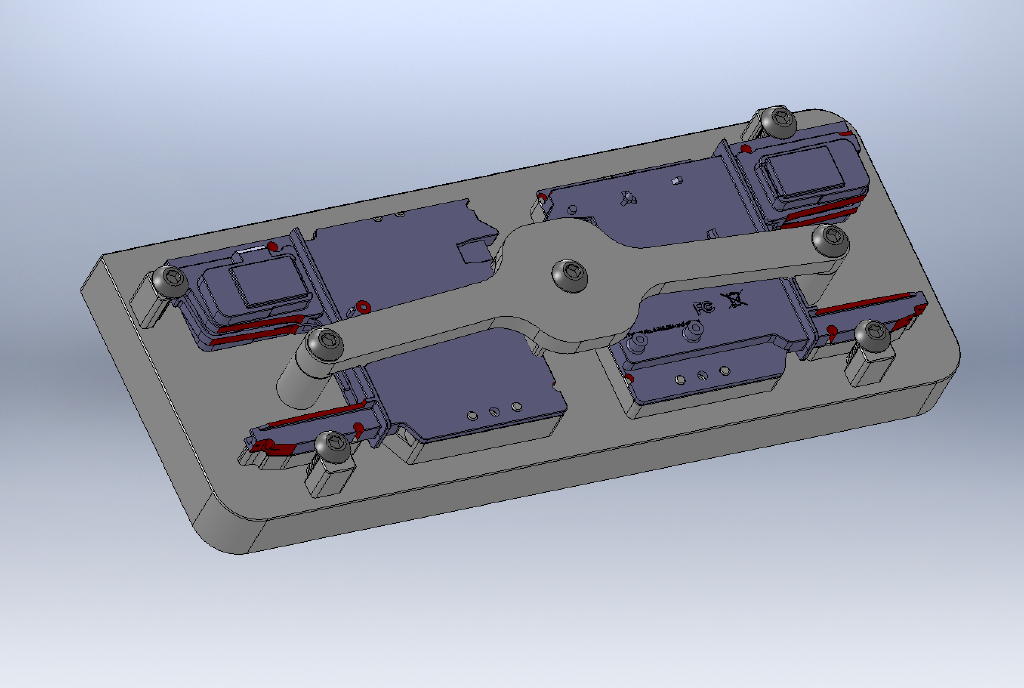

Solid model of fixture to hold 2 parts. First op on
part on left side of fixture is then moved to right side of fixture. A un
modified part is then loaded into the left side and program allowed to
cycle which produces a finished part in the right fixture position.
|
|
|
|
|
|
|
|
21064613-5-727a-4
|
|
|
|
01/06/16 12:38:17 PM
|
|
|
|
|
21064613-5-727a-5
|
|
|
|
|
01/06/16 12:38:17 PM
|
|
|
|
|
|
|
|
21064613-5-727a-b_on
fixt asm3
|
|
|
|
01/06/16 11:28:17 AM
|
|
|
|
|
21064613-5-727a-7
|
|
|
|
|
01/06/16 12:38:17 PM
|
|
|
|
|
|
|
|
21064613-5-727a-b_on
fixt asm2
|
|
|
|
01/06/16 11:28:17 AM
|
|
|
|
|
21064613-5-727a-b_on fixt asm1
|
|
|
|
|
01/06/16 11:28:17 AM
|
|

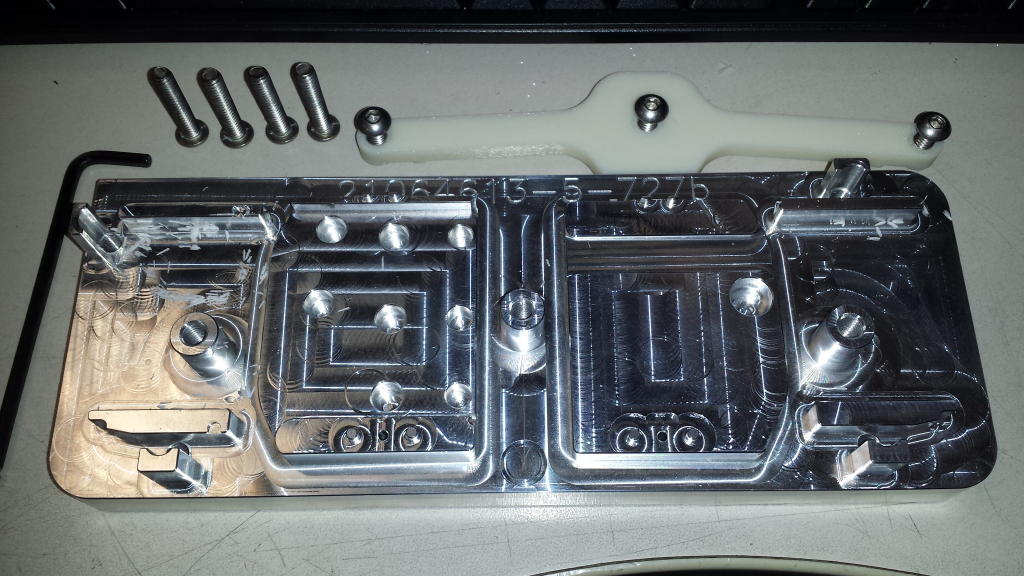

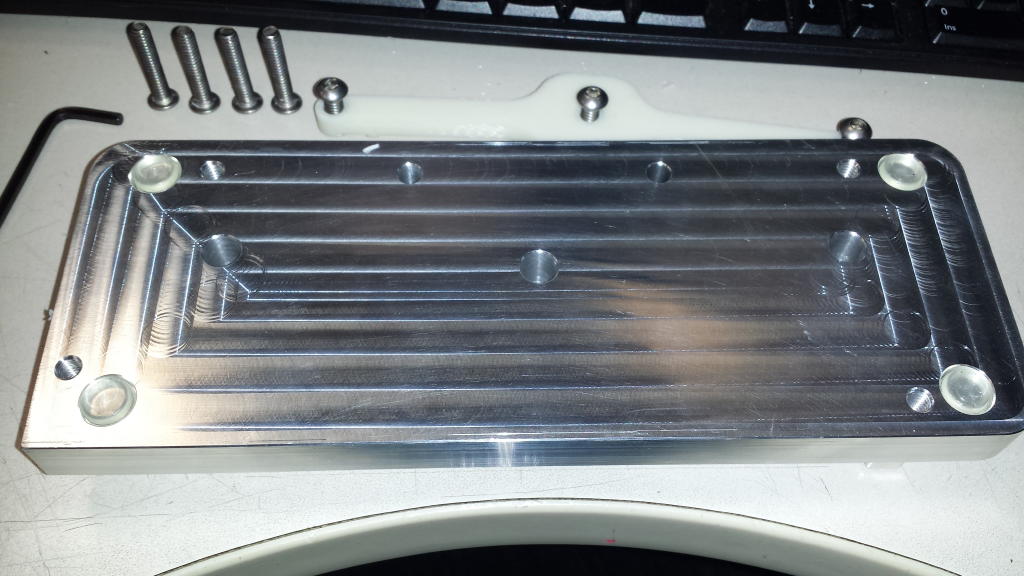

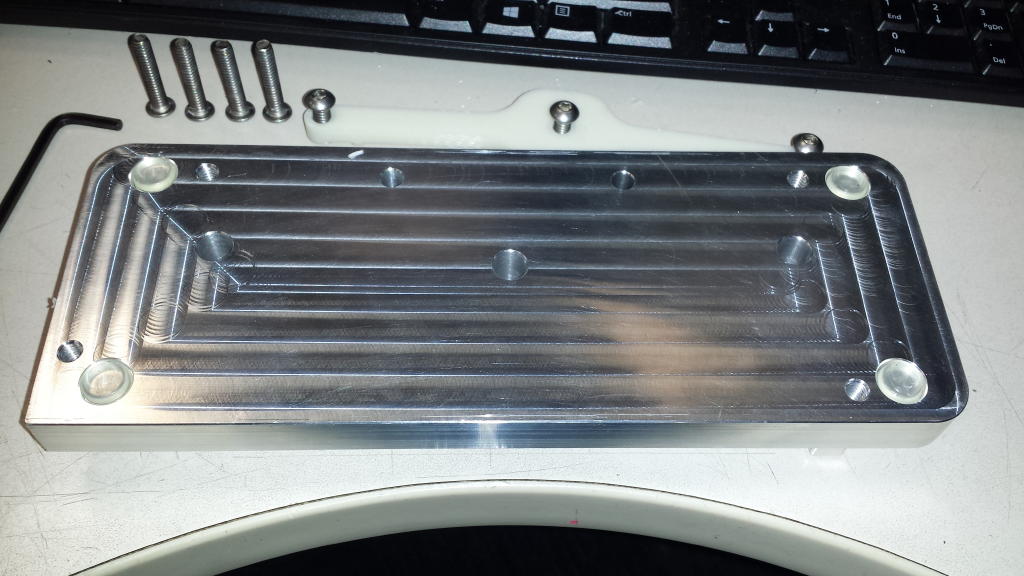

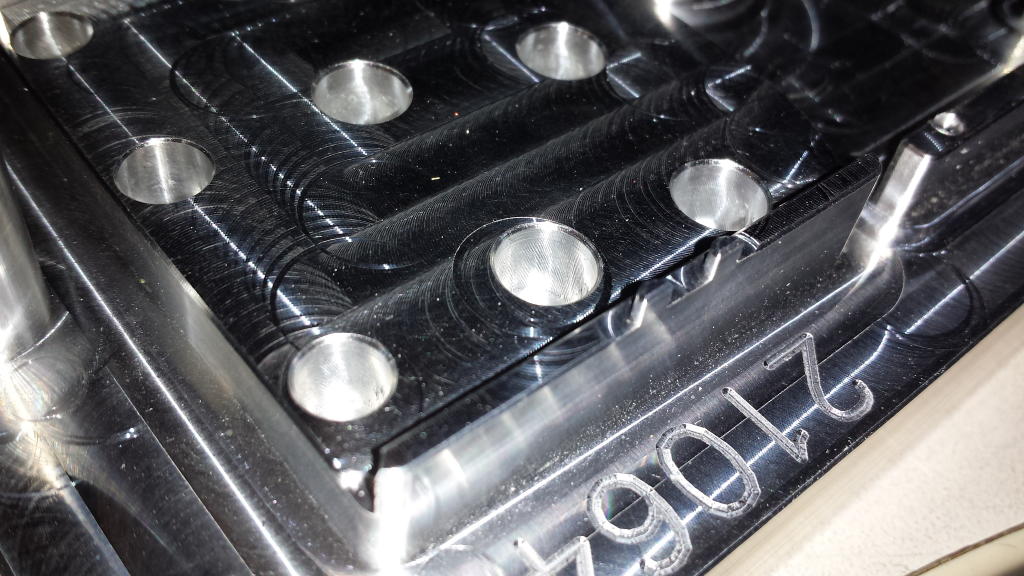

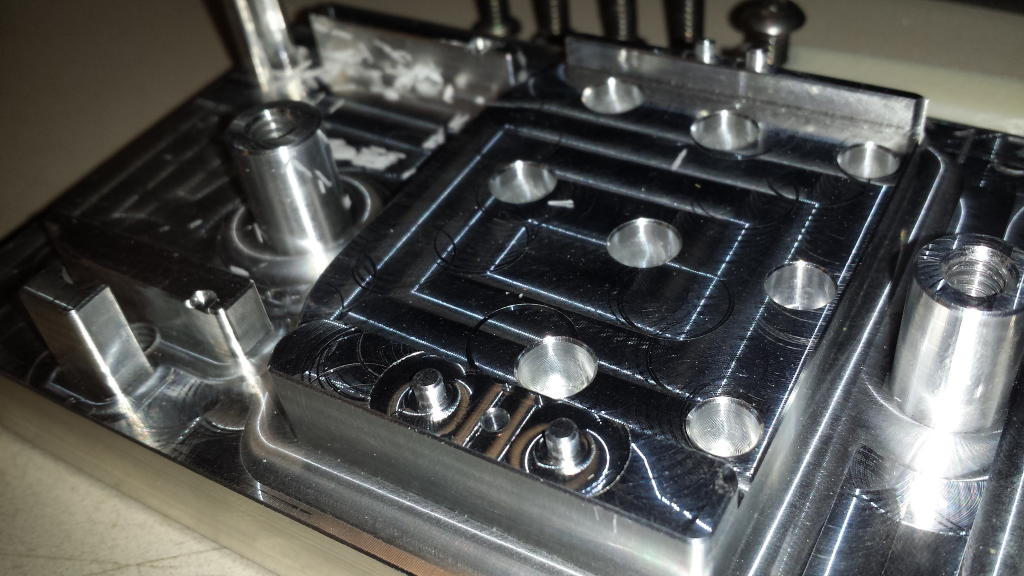

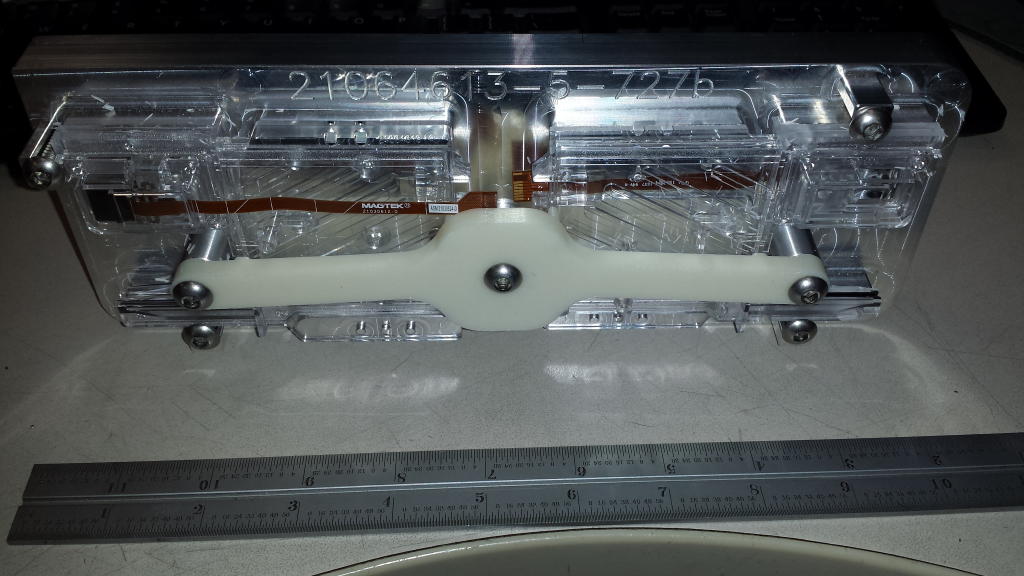

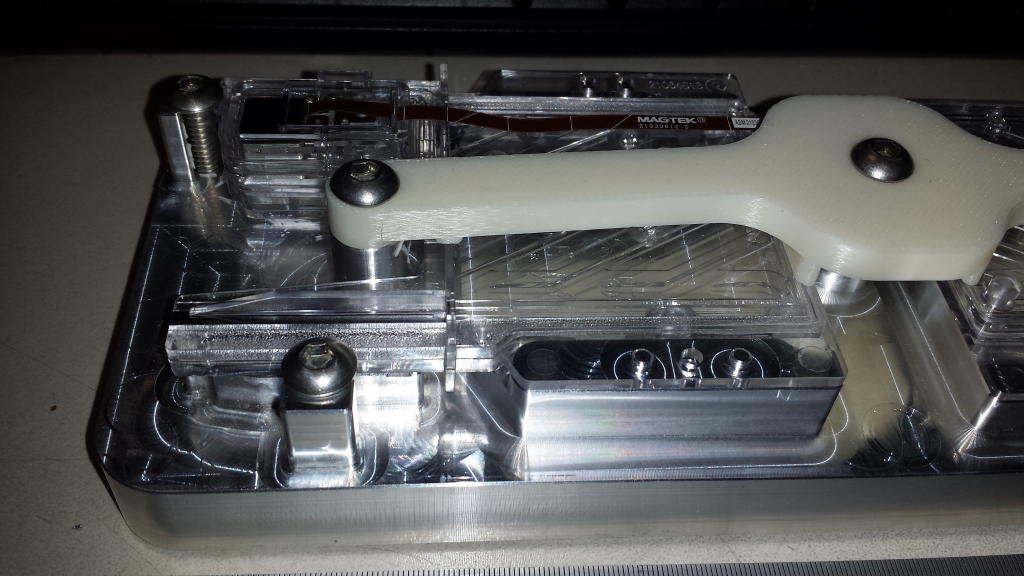

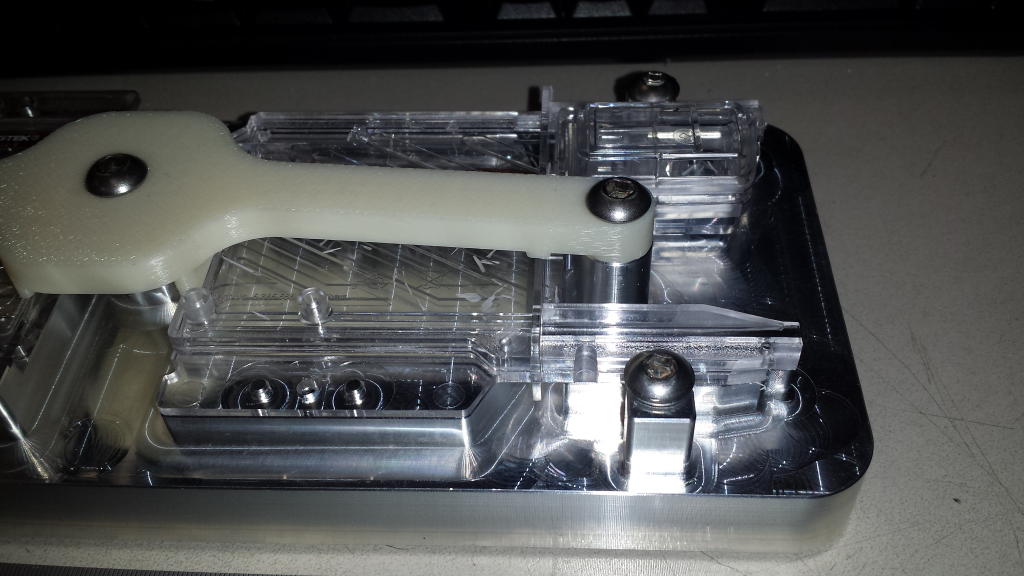

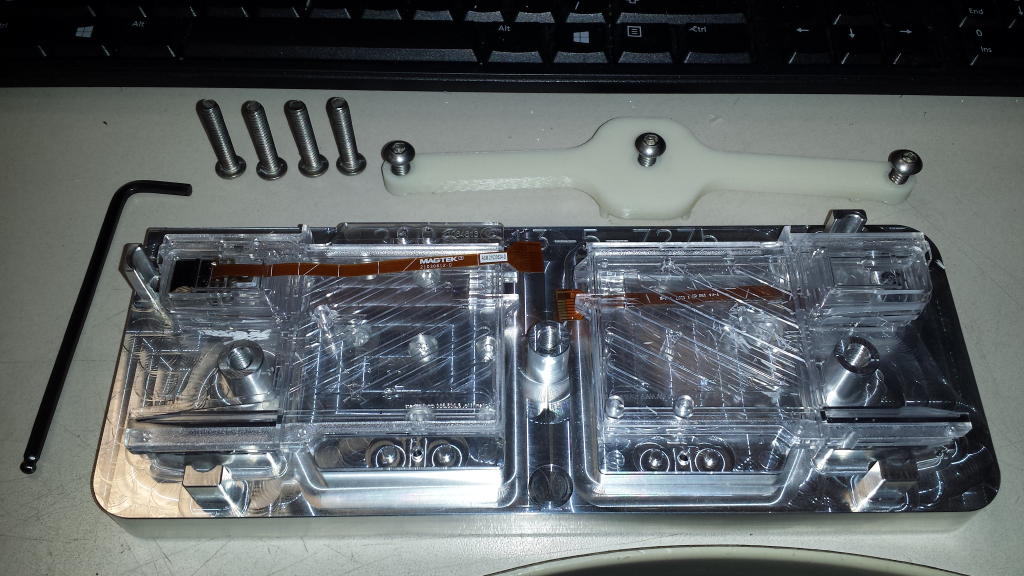

I originally 3d printed the fixture in the FDM machine
but was not happy with the accuracy of fixture so I machined one from 6061
par stock. Notice the sharp corner in the upper left corner of the fixture
and the rounded corners. The sharp corner denotes the fixture “ZERO”
location. The generous radii make it pretty obvious should you insert the
fixture into the vise backwards!
|
|
|
|
|
|

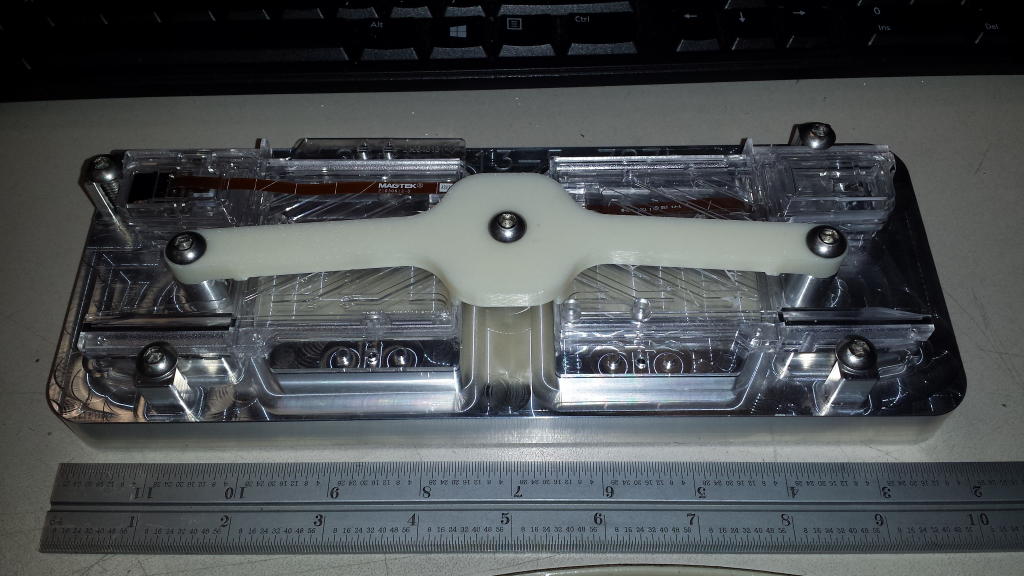

20160106_114709
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:47:08 AM
|
|
|
|
|
20160106_114715
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:47:14 AM
|
|
|
|
|
|
|
|
20160106_114719
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:47:18 AM
|
|
|
|
|
20160106_114731
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:47:30 AM
|
|
|
|
|
|
|
|
20160106_114914
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:13 AM
|
|
|
|
|
20160106_114927
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:27 AM
|
|
|
|
|
|
|
|
20160106_114934
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:34 AM
|
|
|
|
|

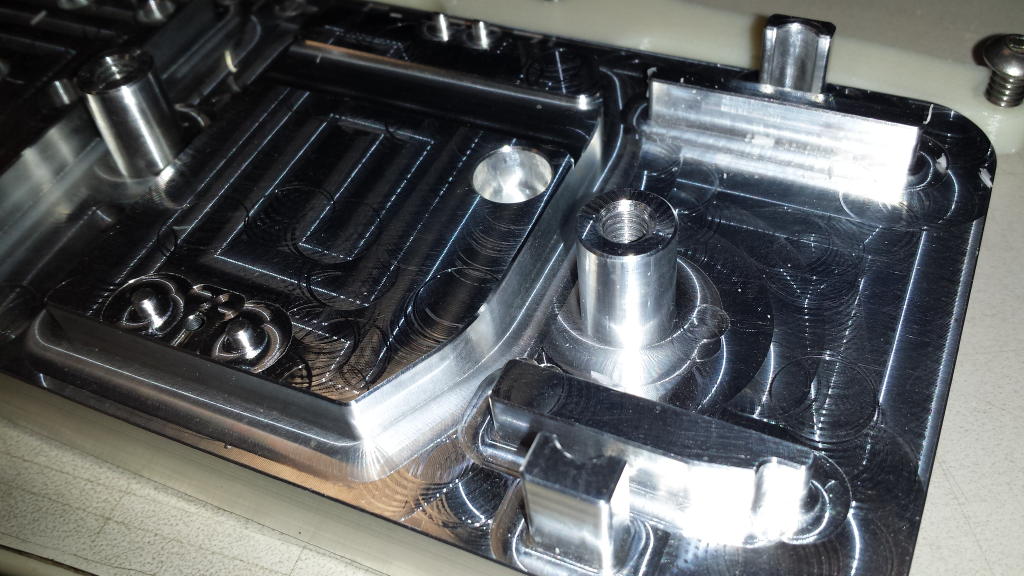

20160106_114940
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:39 AM
|
|
|
|
|
|
|
|
20160106_114946
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:45 AM
|
|

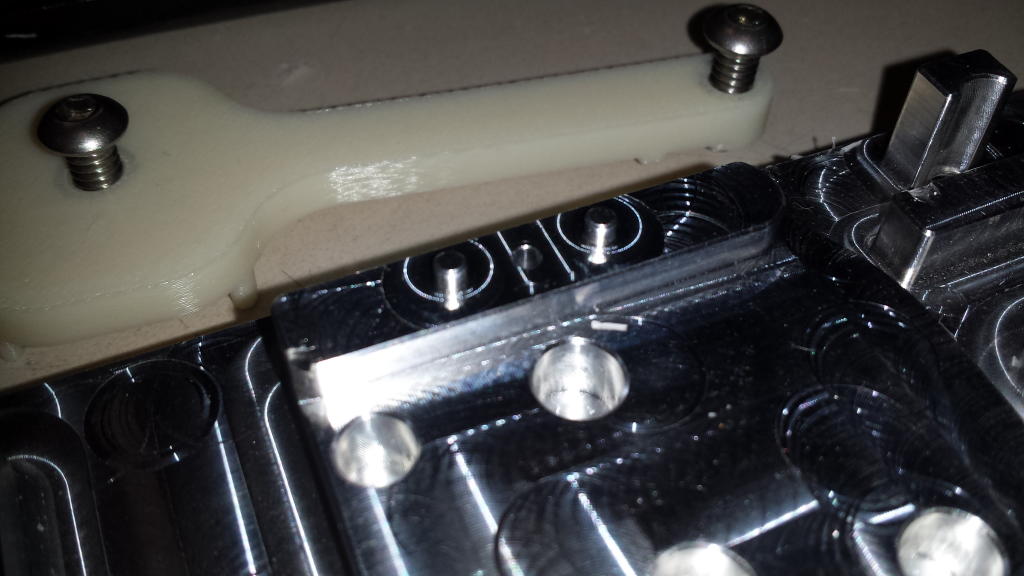

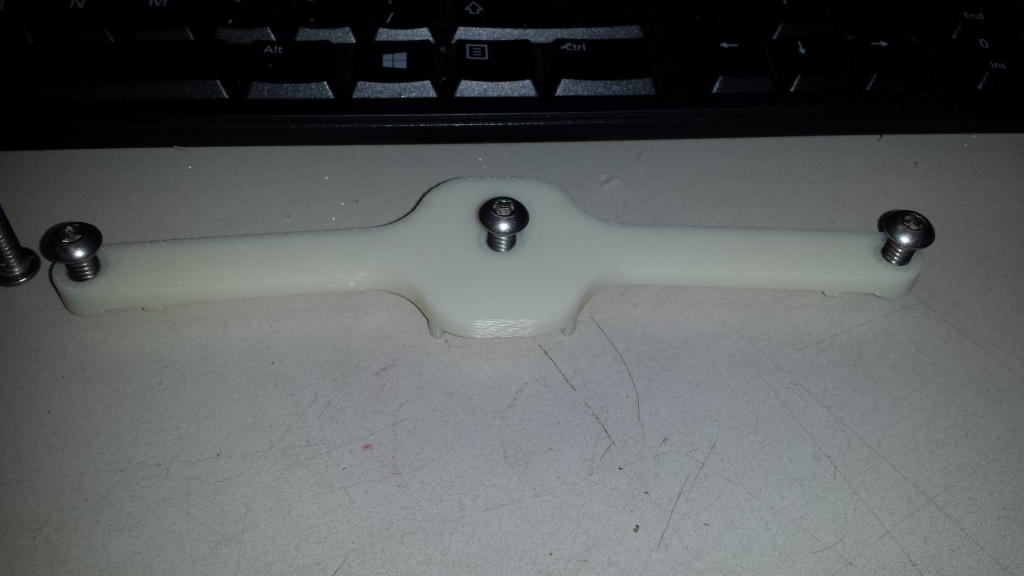

This clamp piece was 3d printed n the FDM and works well enough so far that I do not
plan on machining a replacement.
|
|
|
20160106_114955
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:55 AM
|
|
|
|
|
|
|
|
20160106_114959
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:49:58 AM
|
|
|
|
|
20160106_115027
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:50:26 AM
|
|
|
|
|
|
|
|

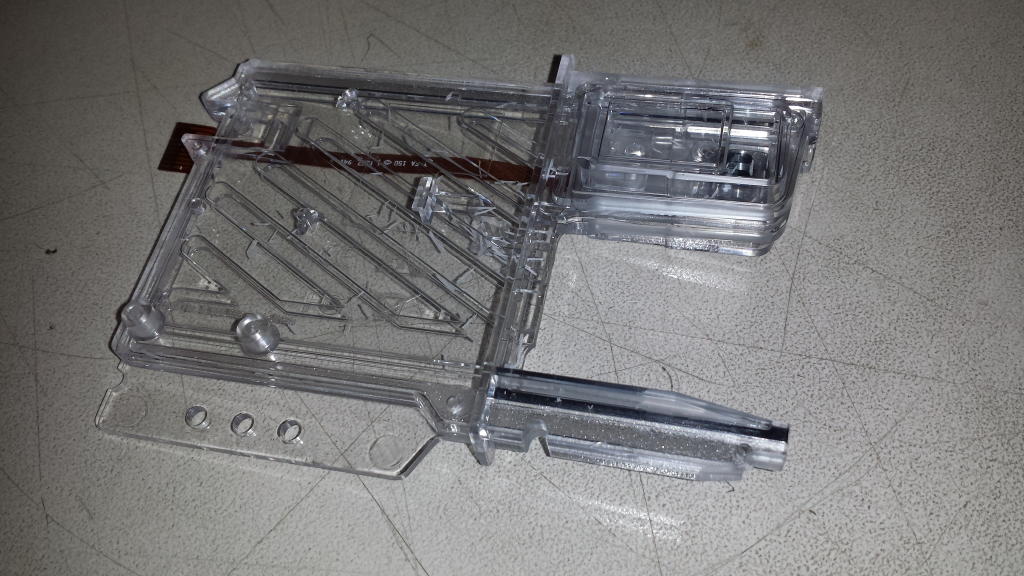

20160106_115008
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:50:08 AM
|
|
|
|
|
20160106_115124
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:51:24 AM
|
|
|
|
|
|
|
|
20160106_115131
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:51:31 AM
|
|
|
|
|

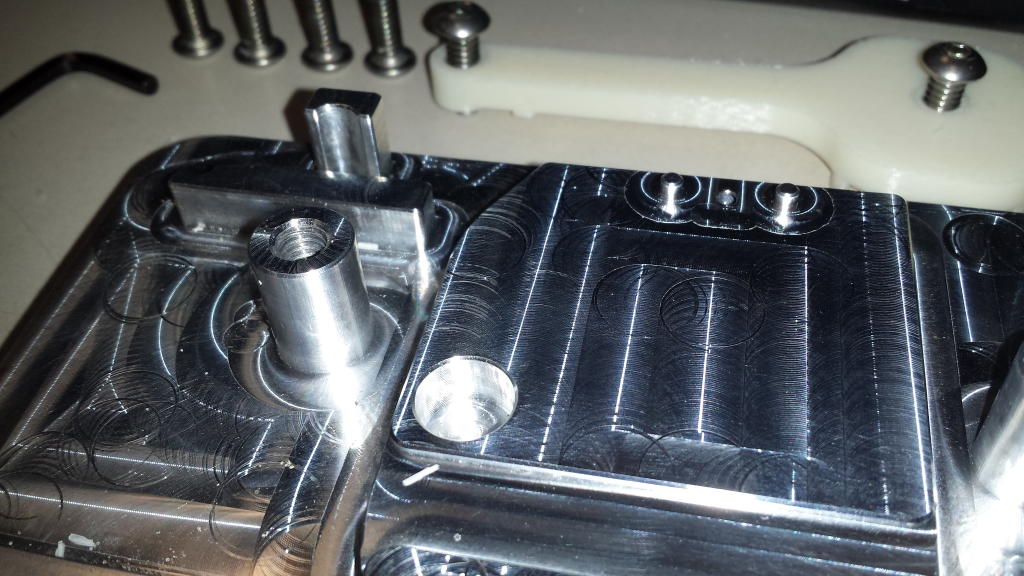

20160106_115137
|
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:51:36 AM
|
|
|
|
|
|
|
|

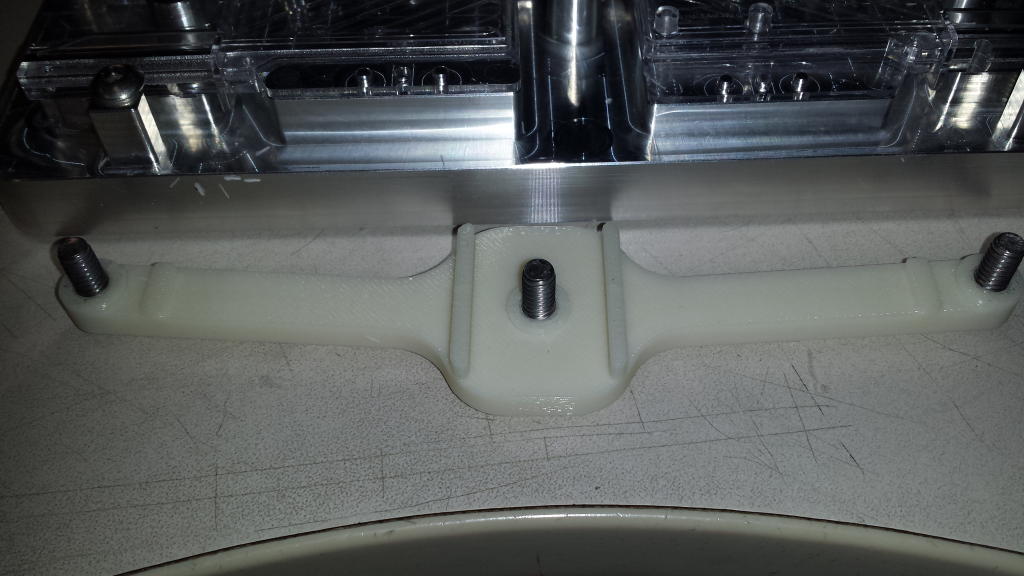

20160106_115356
|
|
|
|
SAMSUNG-SGH-I337
01/06/16 11:53:55 AM
|
|
|
|
|

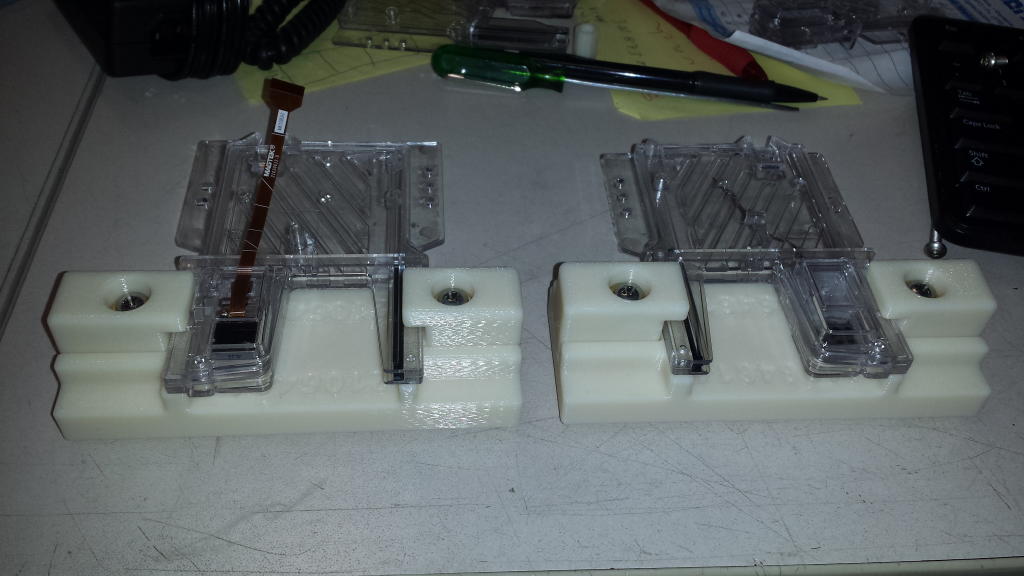

20150520_090542
|
|
|
|
|
SAMSUNG-SGH-I337
05/20/15 9:05:42 AM
|
|
This was
an earlier fixture that worked quite well until they wanted to start modifying
the part which was not n the fixture…
|
|
|
|
|
|

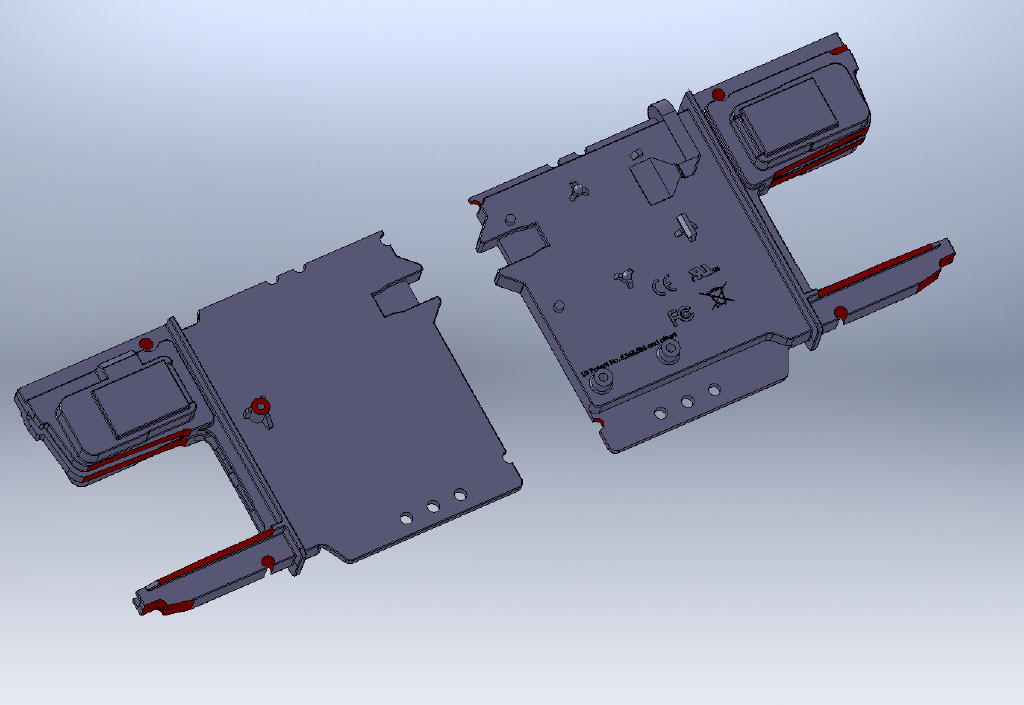

21064613-5-727a-3
|
|
|
|
