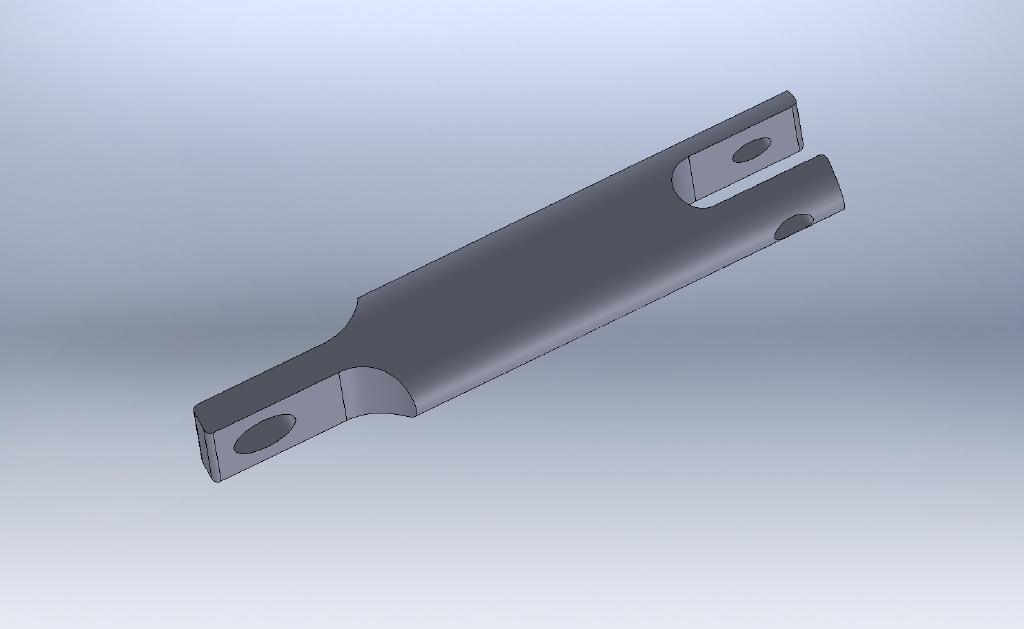

21060143-bill
|
|
The
part is 0.1875 diameter 0.975 long. It’s a link used to connect a
solenoid plunger to a card lock in a credit card reader.
Qty: 10
pieces……..hardly worth the effort to only make 10!
|
|
2/6/2015 2:08:42 PM
|
|
|
|
|
20150219_162331
|
|

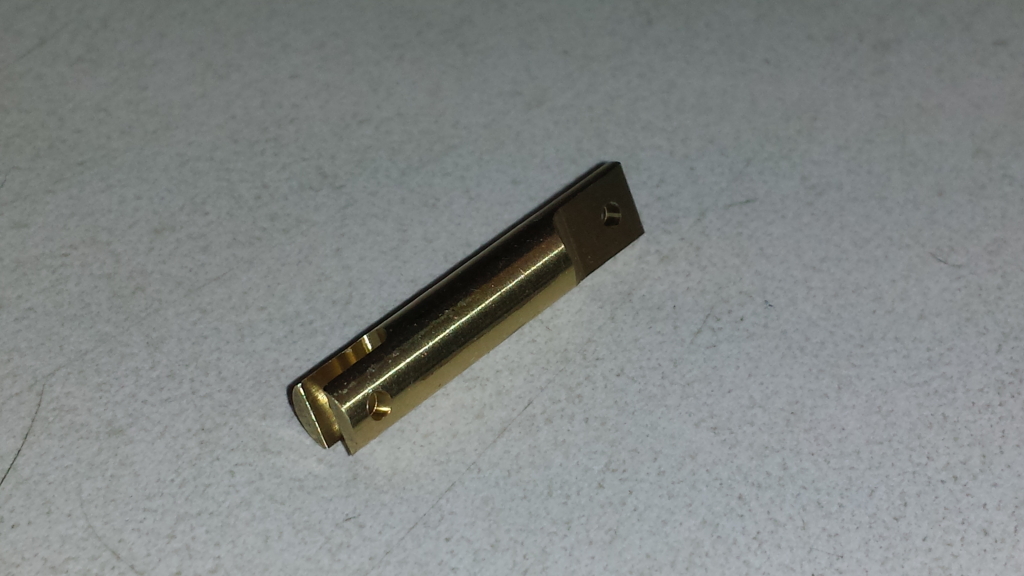

Actual machined part
|
|
|
SAMSUNG-SGH-I337
2/19/2015 4:23:30 PM
|
|
|
|
|
|
|
|
20150219_162706
|
|

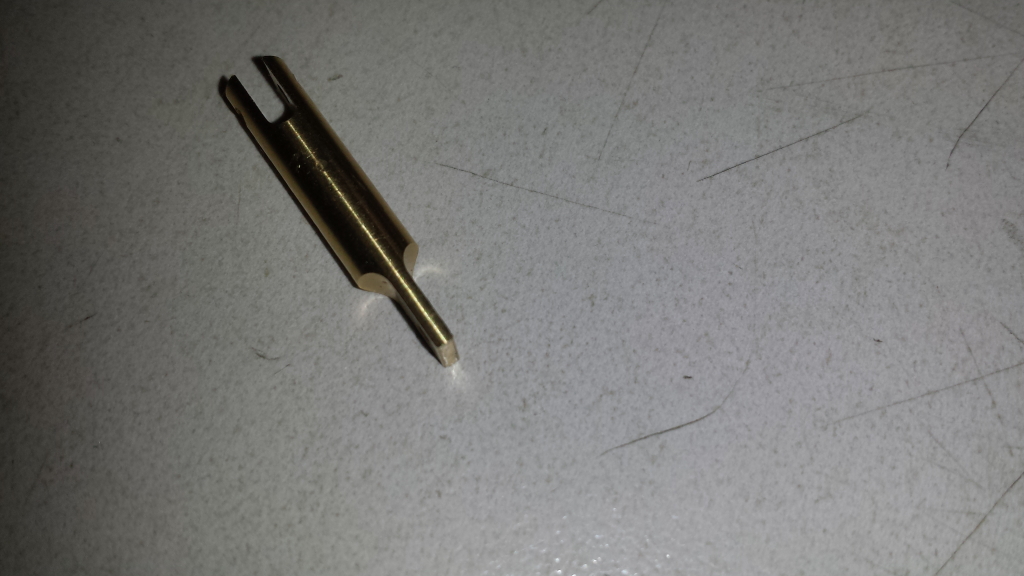

Actual machined part
|
|
SAMSUNG-SGH-I337
2/19/2015 4:27:06 PM
|
|
|
|
|
21060143-link
fixture_2-1
|
|

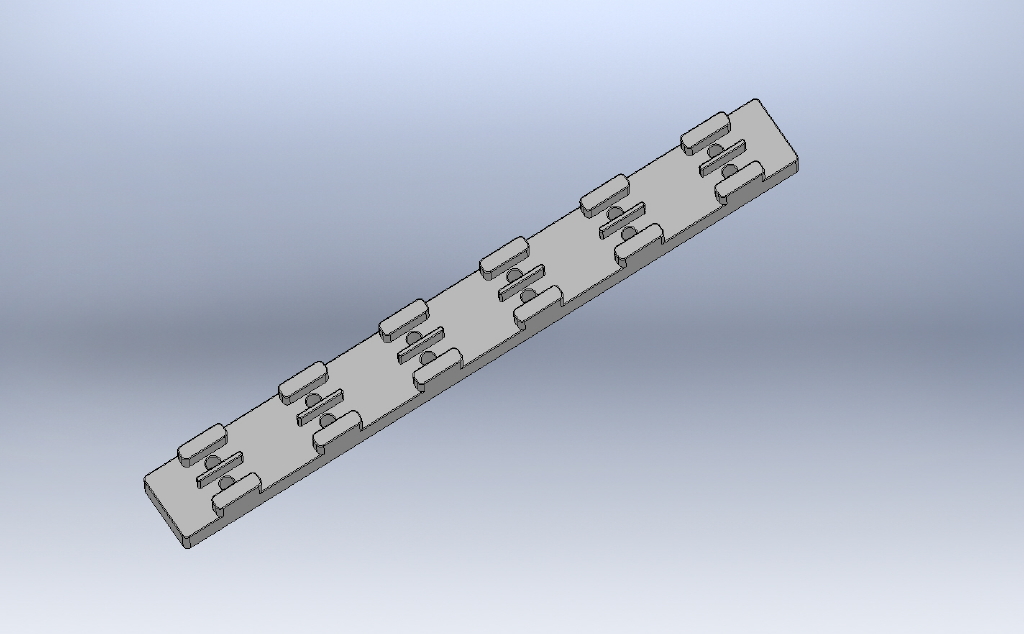

Fixture SolidWorks design
|
|
|
2/3/2015 9:04:23 AM
|
|
The concept of the fixture is that the raw stock (brass
and aluminum) will be pressed into the fixture and held securely for the
machining and drilling operations.
|
|
|
|
|
|
21060143-link
fixture_2-4
|
|

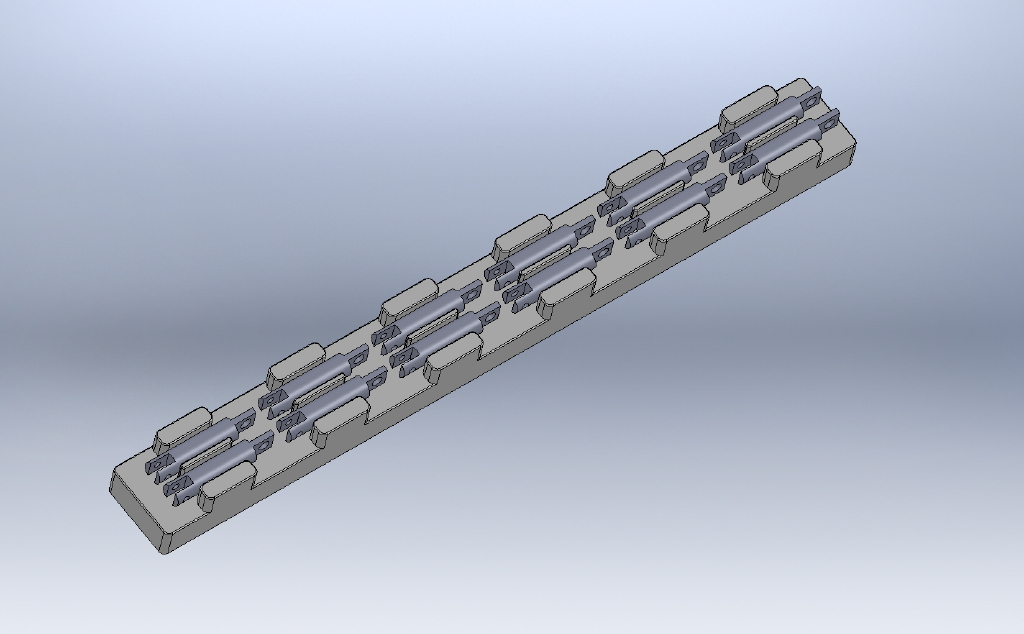

Fixture
SolidWorks design with parts assembled on fixture
|
|
2/3/2015 9:06:33 AM
Here you can see the finished
parts being held in the fixture
|
|
|
|
|

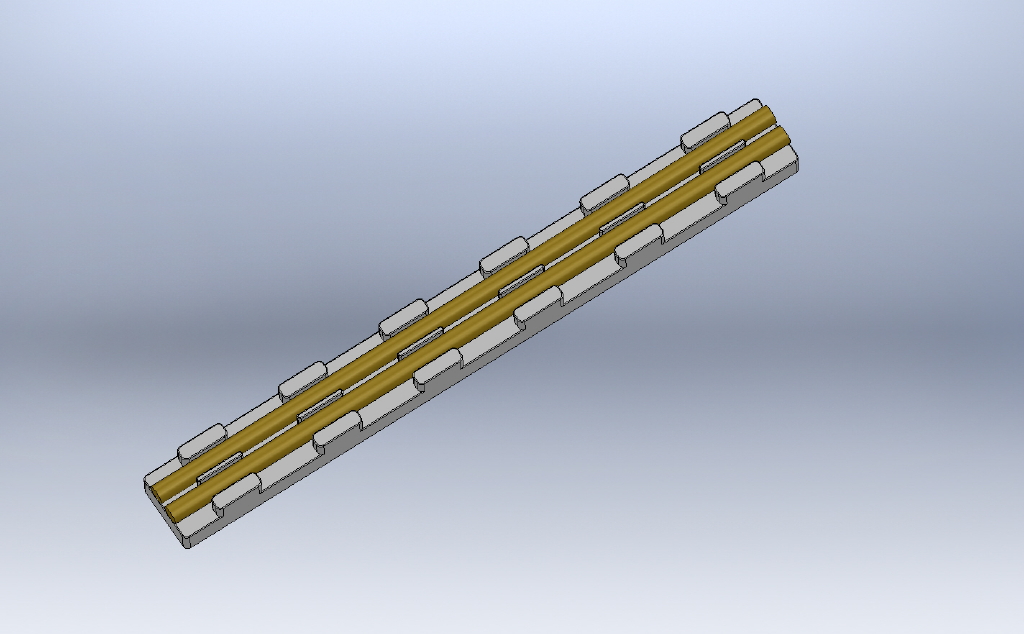

21060143-link
fixture_2-2
|
|
Fixture SolidWorks design with syock assembled on
fixture
|
|
|
2/3/2015 9:05:42 AM
|
|
This photo shows the raw stock in the fixture prior to
machining
|
|
|
|
|
|
21060143-link
fixture_2-5
|
|

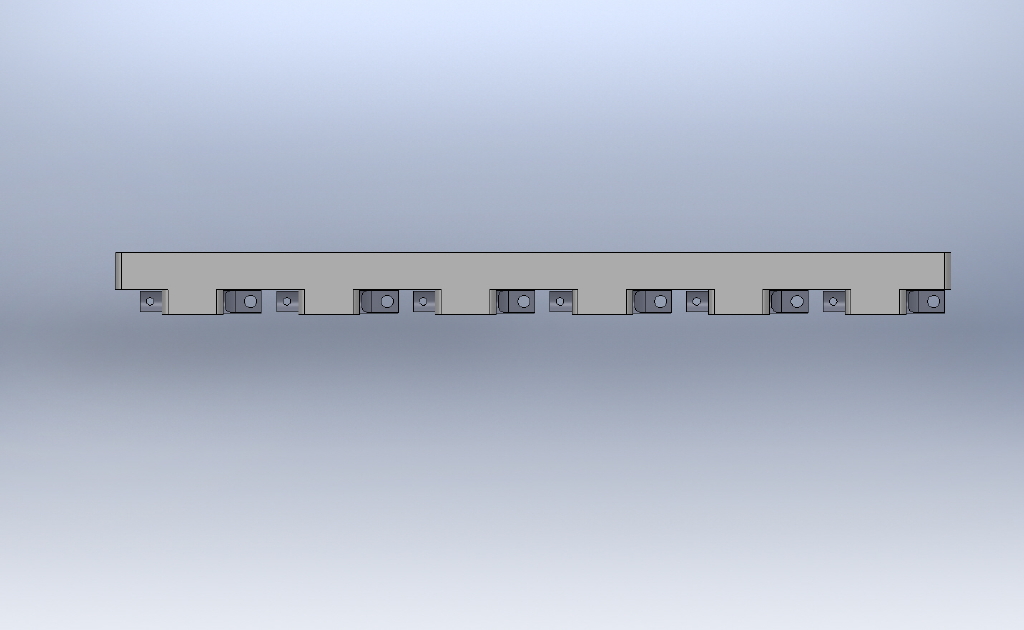

3d
image of fixture positioned for drilling operation
|
|
2/3/2015 9:07:53 AM
|
|
The fixture will get rotated to access the drilled holes
|
|
|
21060143-link
fixture_2-6
|
|
3d

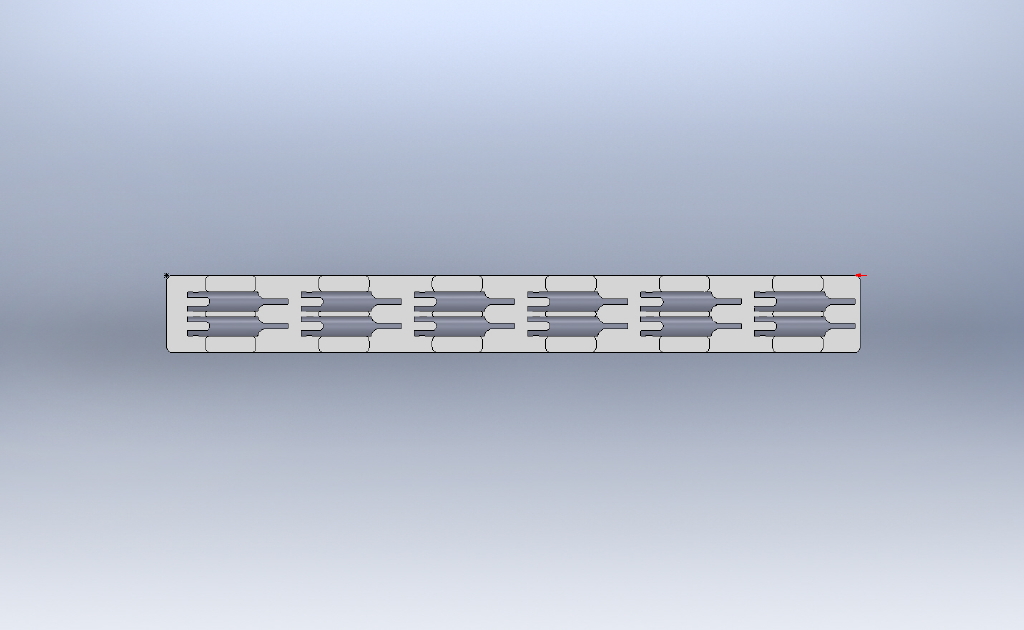

image of fixture positioned for milling operation
|
|
|
2/3/2015 9:08:35 AM
|
|
|
|
|
|
|
|

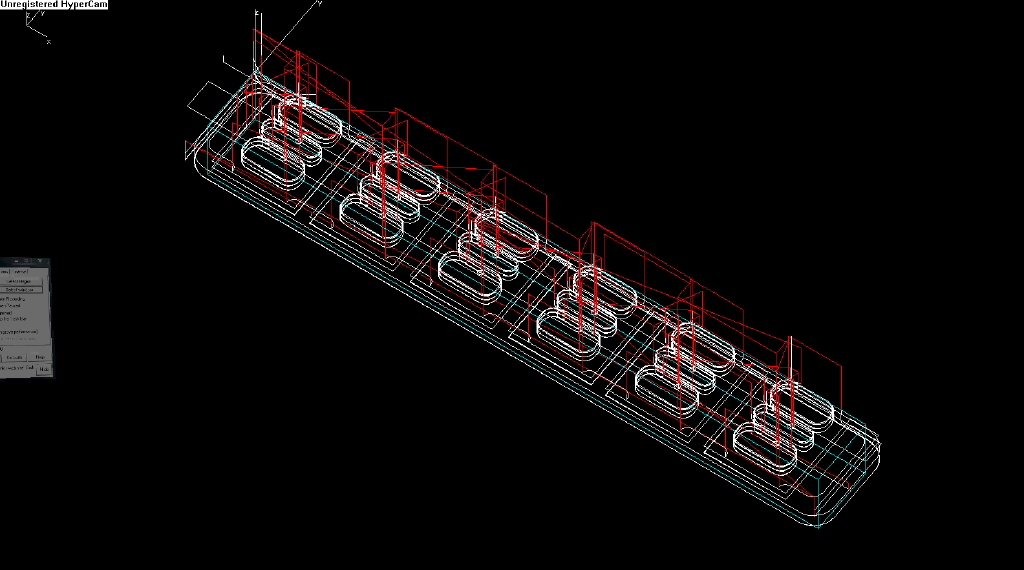

LINK_FIXTURE_AVI
|
|
|
|
Short video of fixture tool path, click the camera
icon above.
2/5/2015 3:52:10 PM
|
|
|
|
|
21060143-link
fixture_2-3
|
|

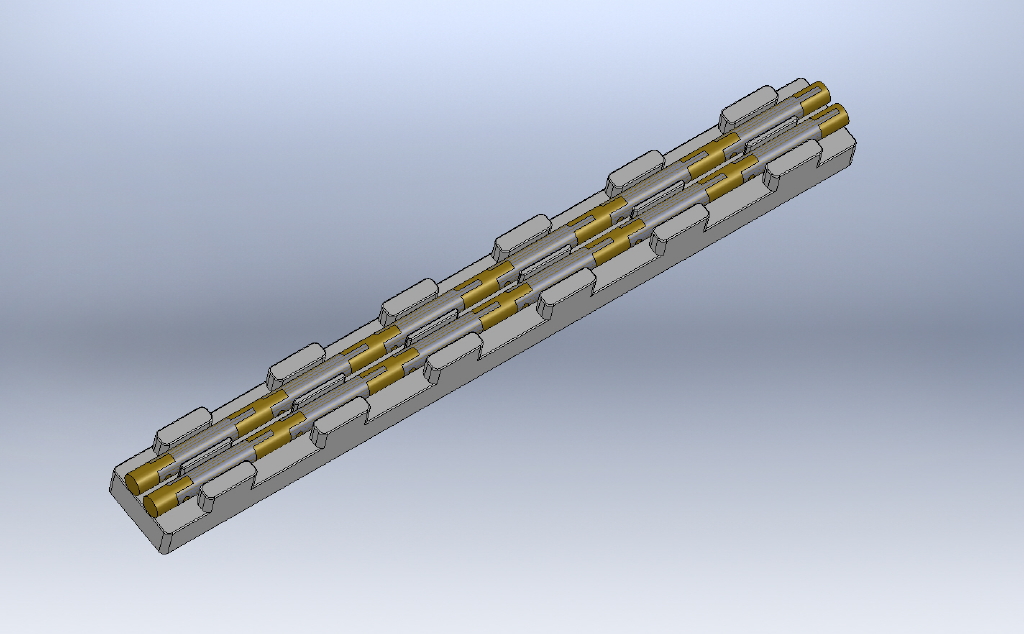

A 3d view showing the parts nested inside the stock
|
|
|
2/3/2015 9:06:06 AM
|
|
|
|
|
|
|
|
20150218_174510
|
|

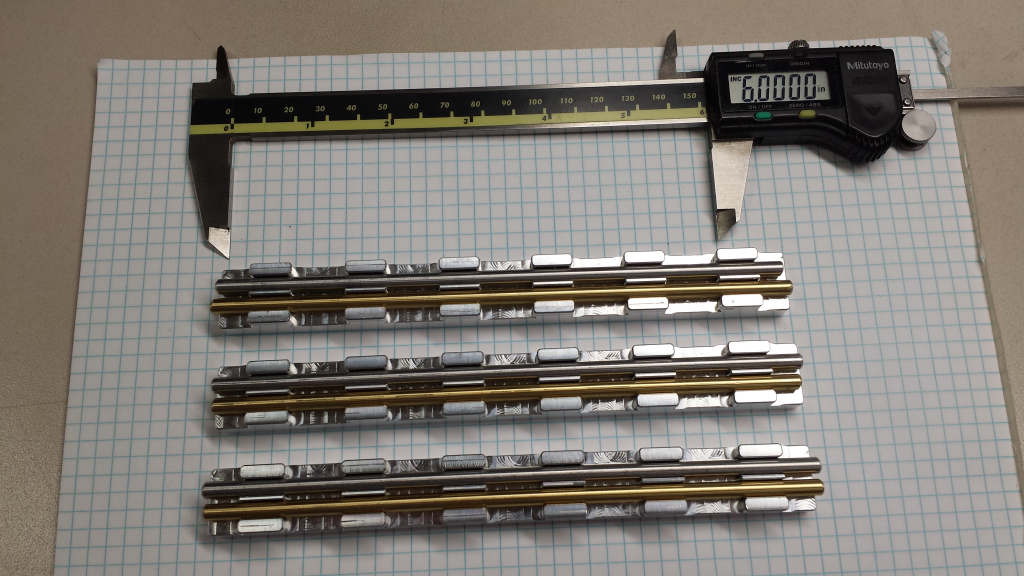

Fixtures
loaded with stock ready to be drilled and profiled.
|
|
SAMSUNG-SGH-I337
2/18/2015 5:45:09 PM
|
|
|
|
|
20150219_150722
|
|

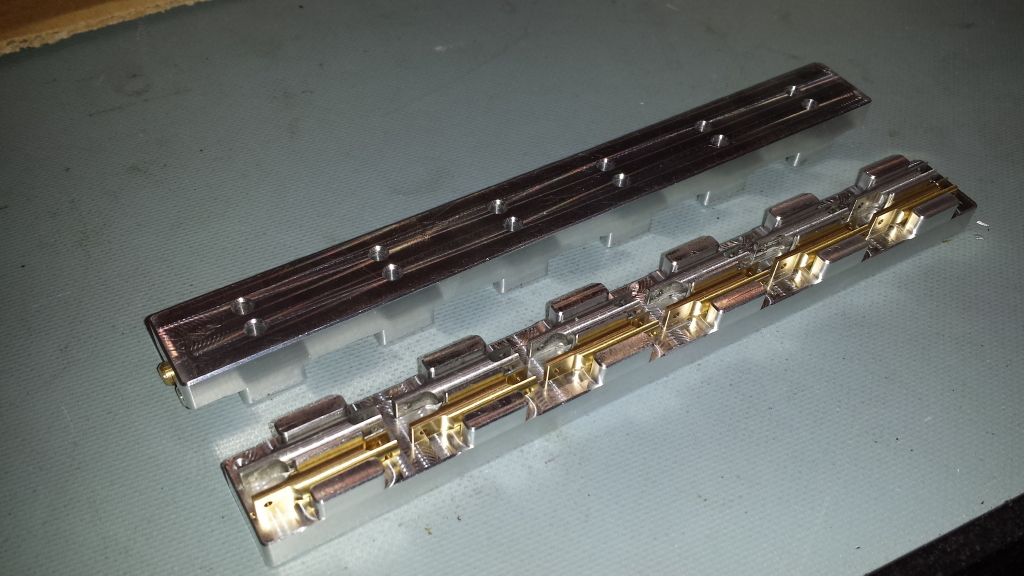

Fixture showing finished machined parts and the part
removal holes.
A 1/8” dowel pin is inserted in the part extraction
holes to press out the individual parts
|
|
|
SAMSUNG-SGH-I337
2/19/2015 3:07:22 PM
|
|
|
|
|
|
|
|

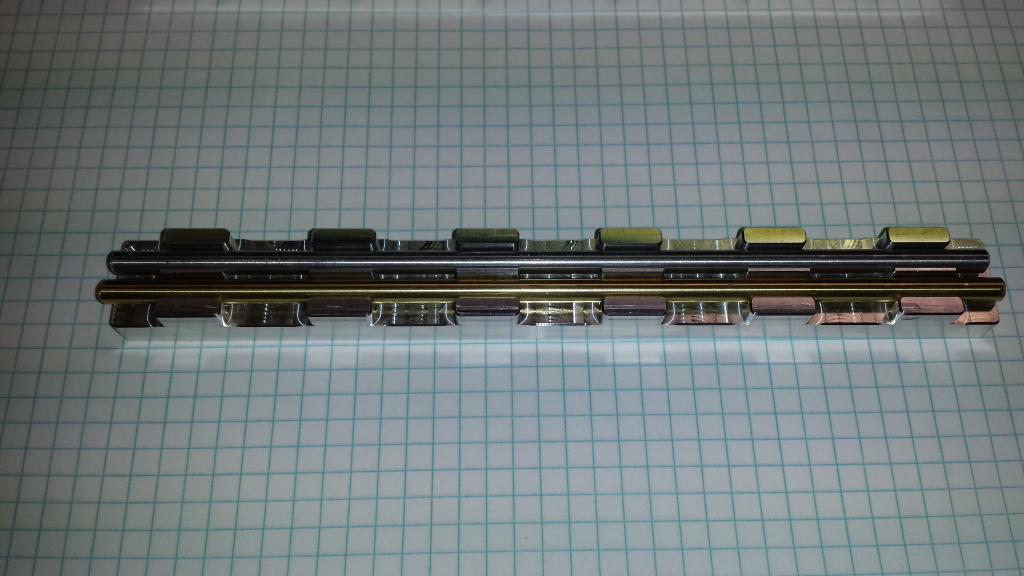

20150218_173612
|
|
|
|
SAMSUNG-SGH-I337
2/18/2015 5:36:11 PM
|
|
|
|
|

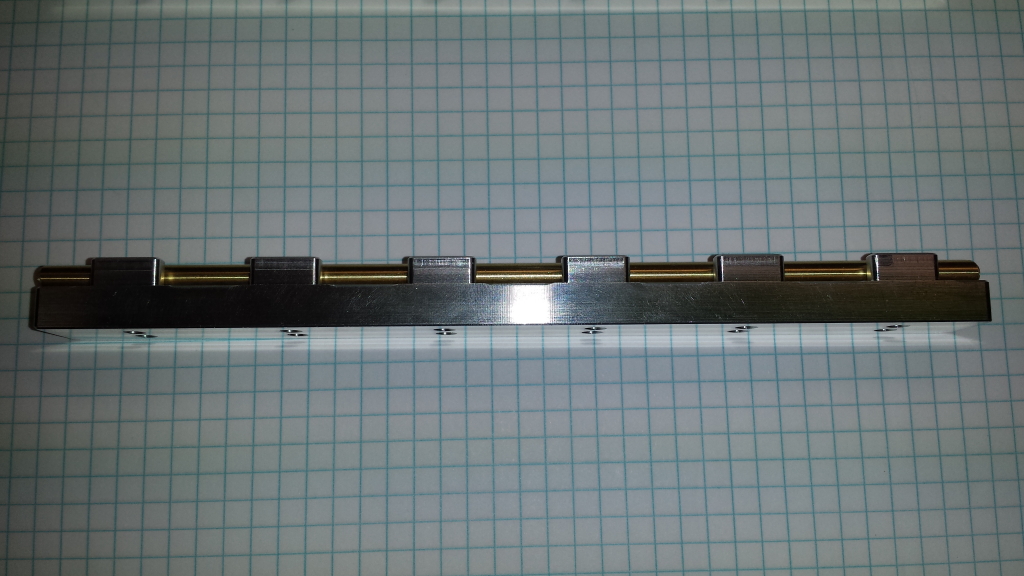

20150218_173620
|
|
|
|
|
SAMSUNG-SGH-I337
2/18/2015 5:36:20 PM
|
|
|
|
|
|
|
|

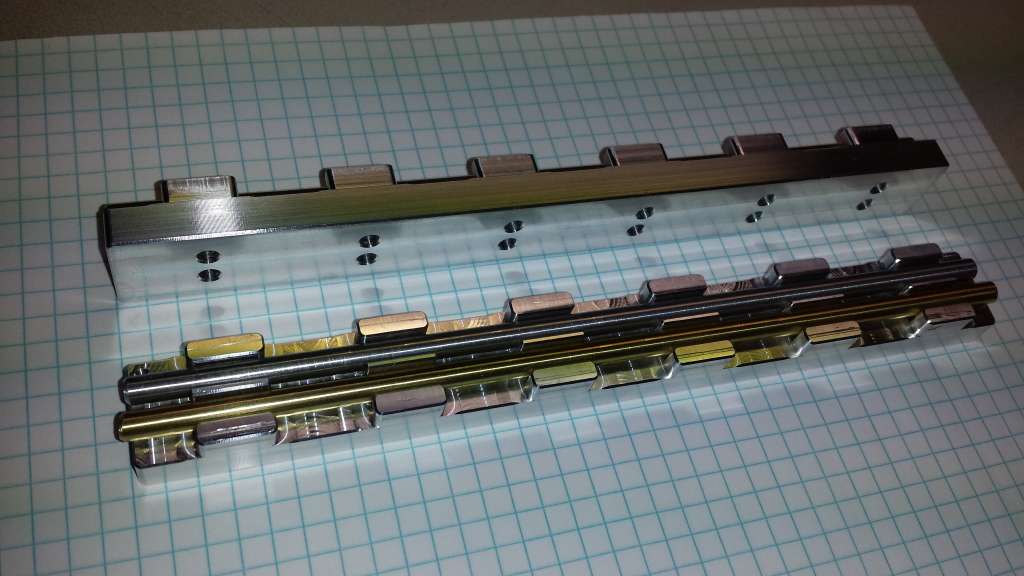

20150218_173629
|
|
|
|
SAMSUNG-SGH-I337
2/18/2015 5:36:29 PM
|
|

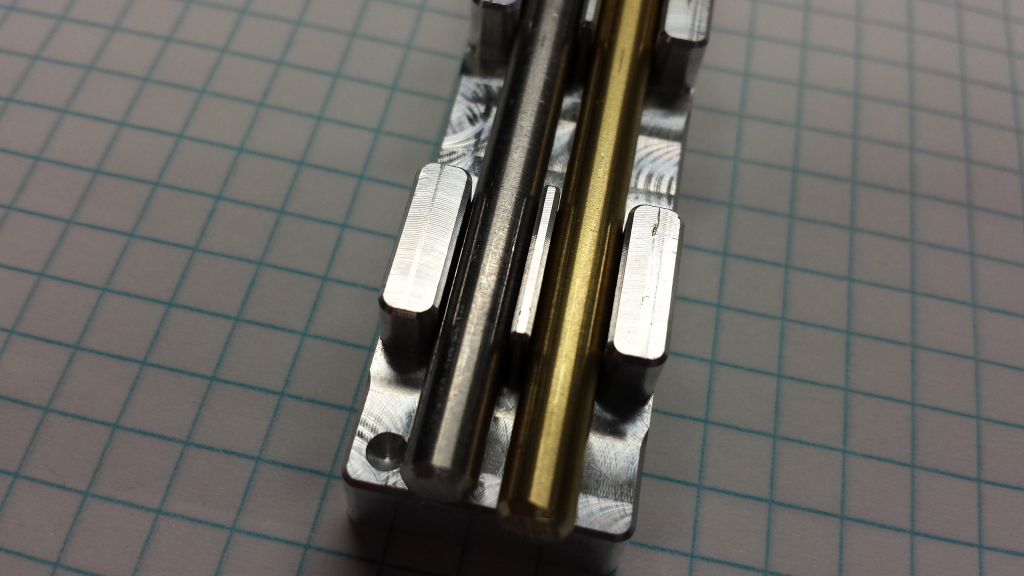

On the bottom of the fixture you can see there are holes
that you insert a pin into to remove the part after it has been machined.
|
|
|
20150218_173704
|
|
|
|
|
SAMSUNG-SGH-I337
2/18/2015 5:37:04 PM
|
|
|
|
|
|
|
|
20150219_163145
|
|

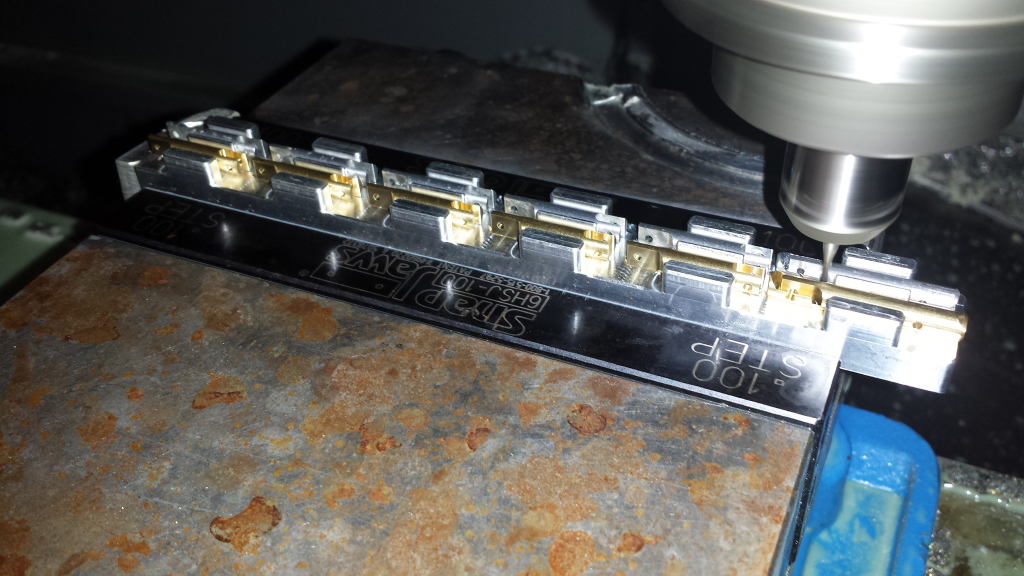

Profile
machining operation almost finished.
|
|
SAMSUNG-SGH-I337
2/19/2015 4:31:45 PM
|
|
|
|
|
20150219_141643
|
|

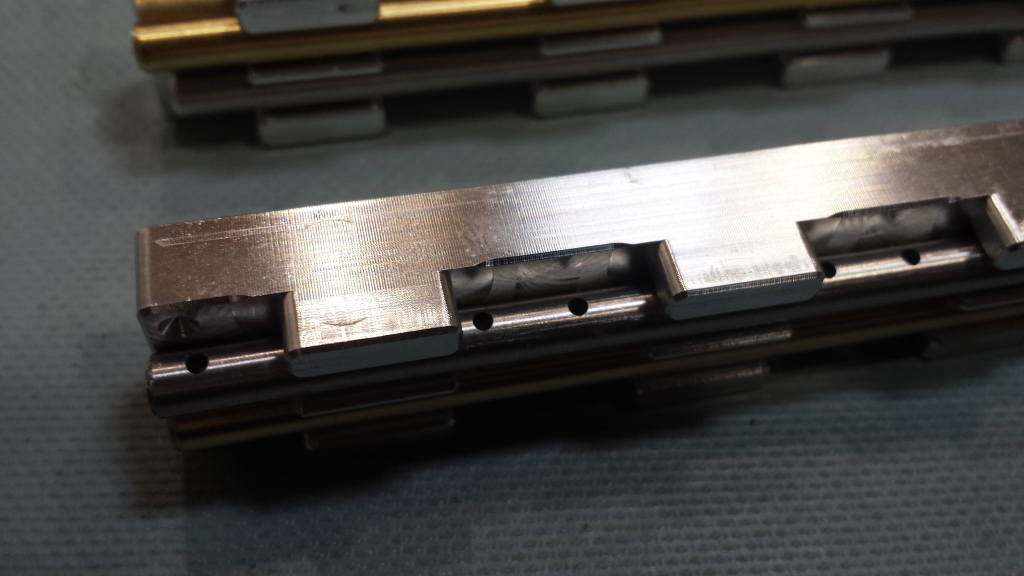

Stock after first machining operation.
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:16:43 PM
|
|
|
|
|
|
|
|

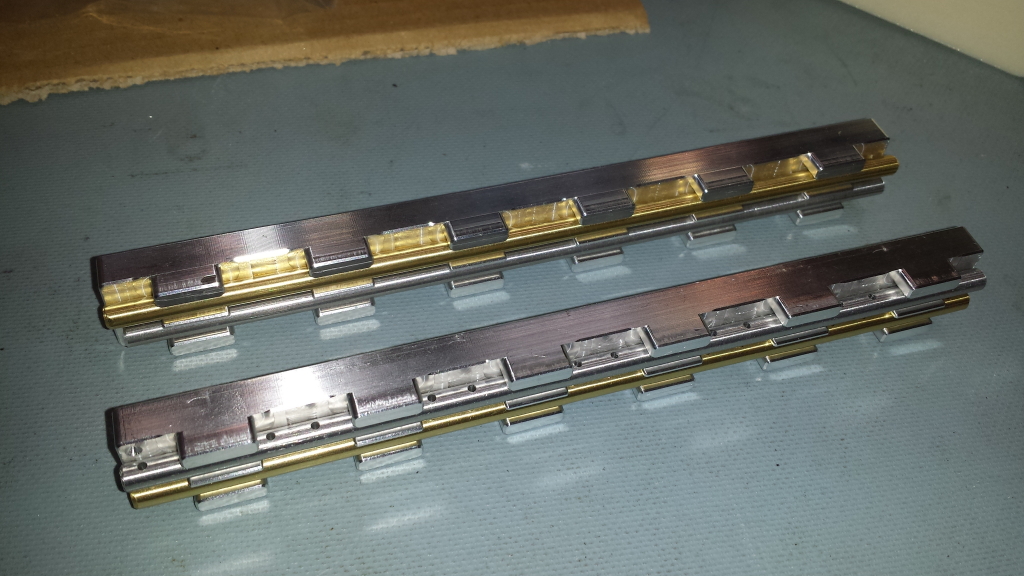

20150219_141700
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:17:00 PM
|
|
|
|
|

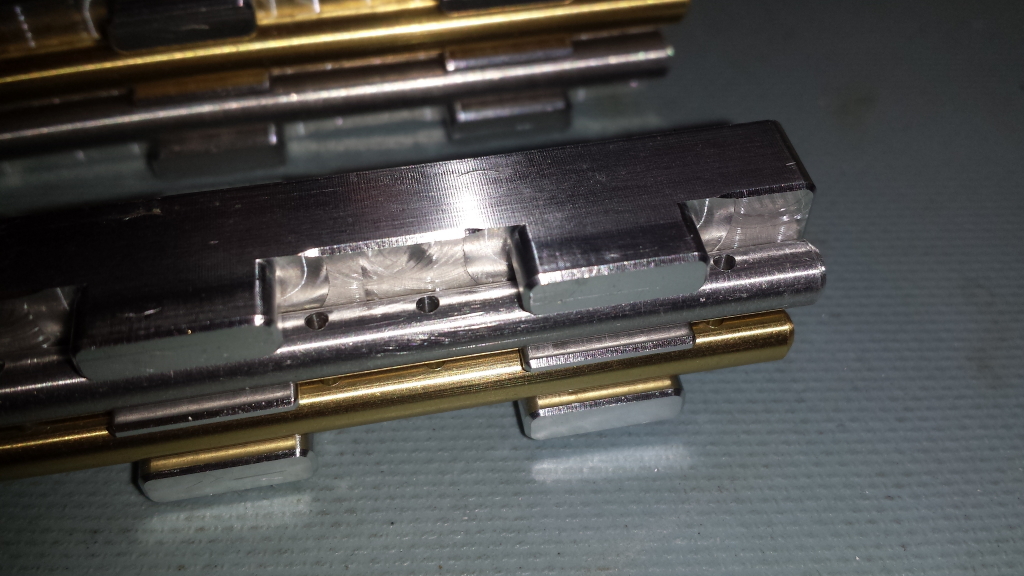

20150219_141738
|
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:17:37 PM
|
|
|
|
|
|
|
|
20150219_142520
|
|

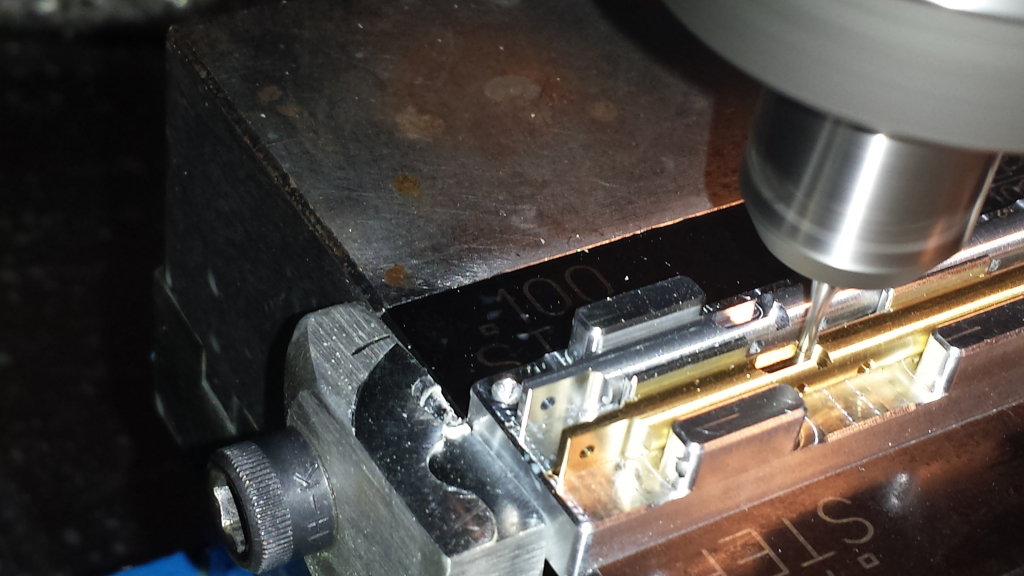

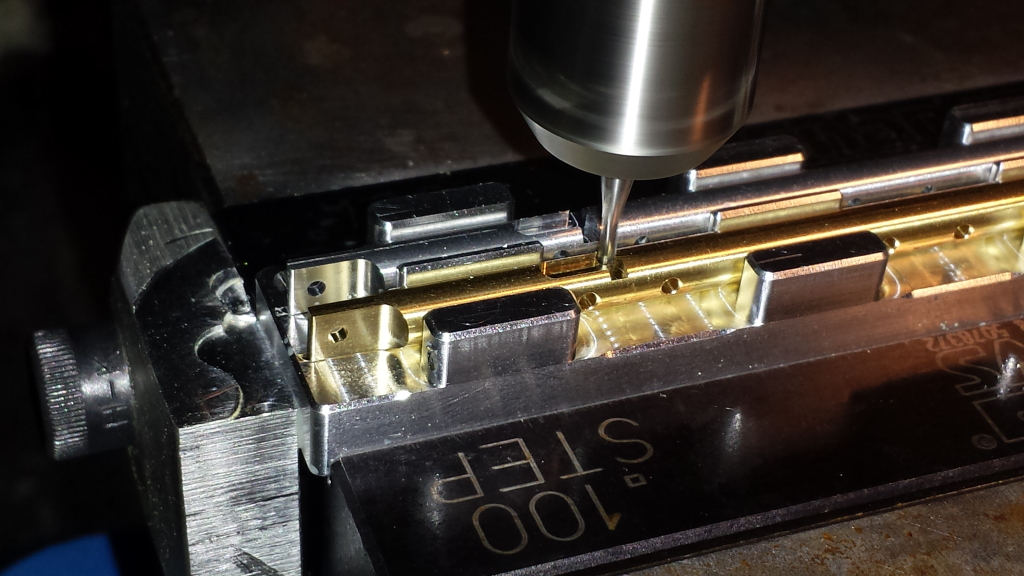

The start of the profile
machining operation
|
|
SAMSUNG-SGH-I337
2/19/2015 2:25:19 PM
|
|
|
|
|
20150219_142525
|
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:25:25 PM
|
|
|
|
|
|
|
|

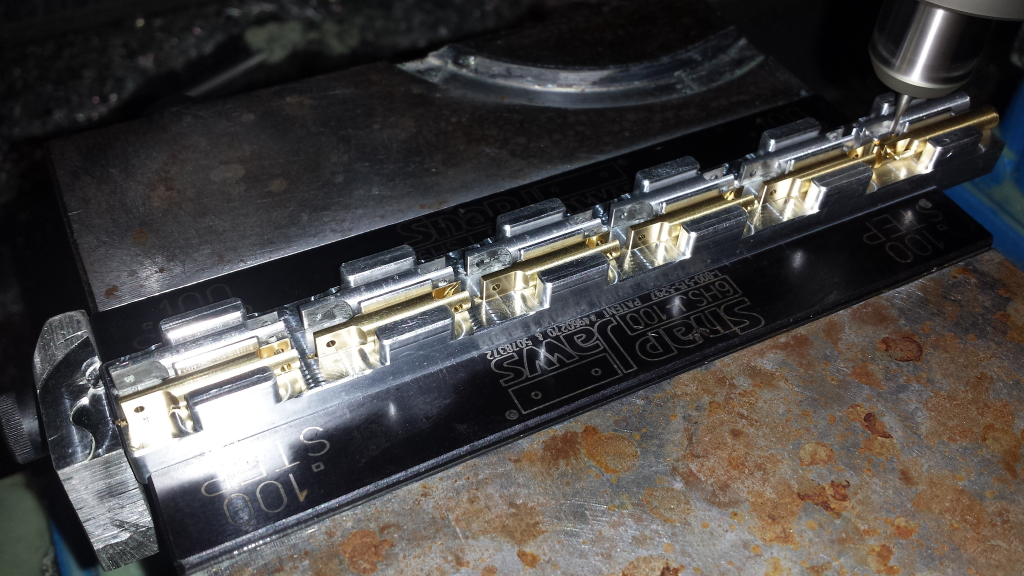

20150219_163115
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 4:31:14 PM
|
|
|
|
|

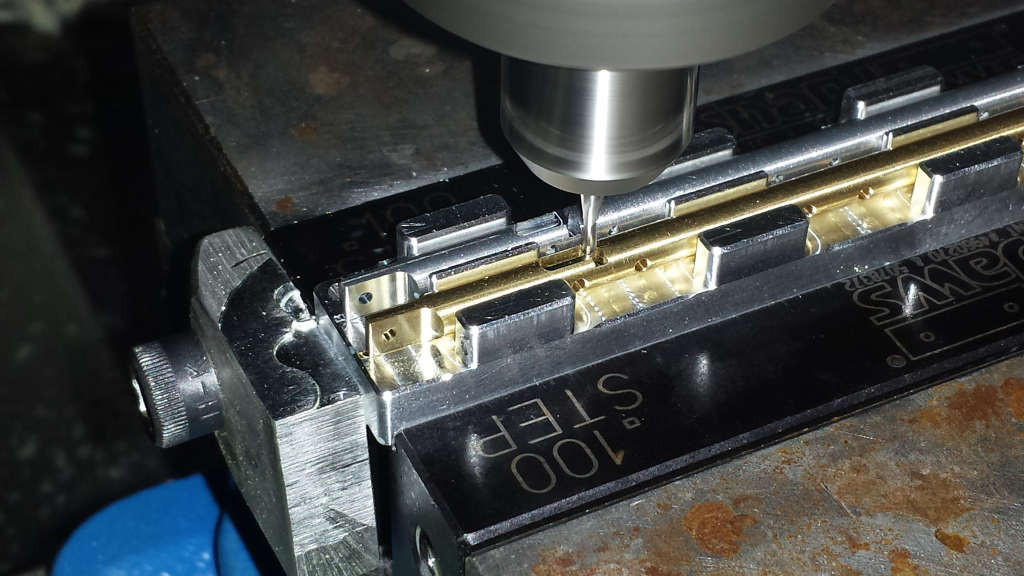

20150219_142542
|
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:25:41 PM
|
|
|
|
|
|
|
|

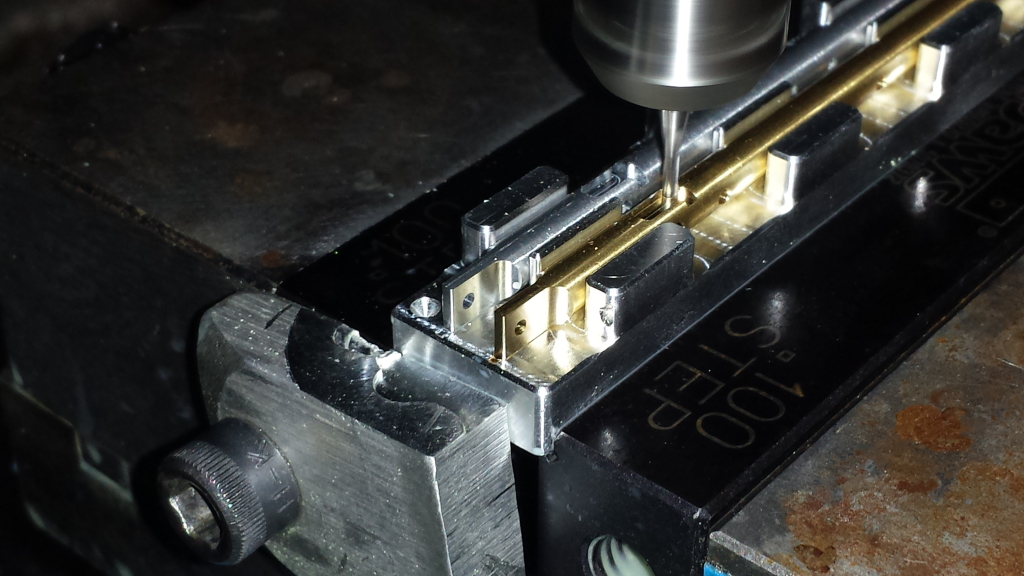

20150219_142555
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 2:25:54 PM
|
|
|
|
|

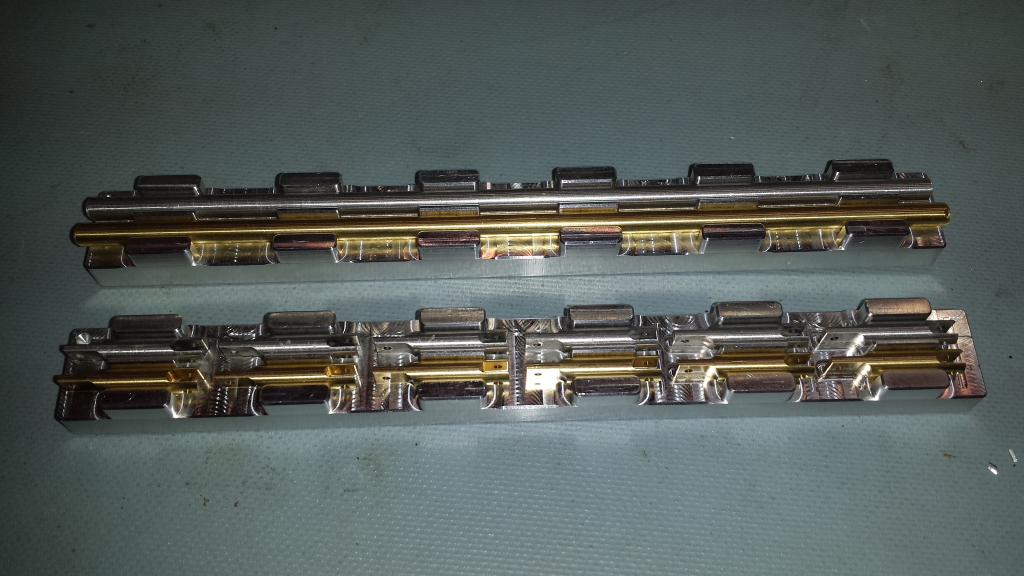

20150219_150649
|
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 3:06:48 PM
|
|
|
|
|
|
|
|

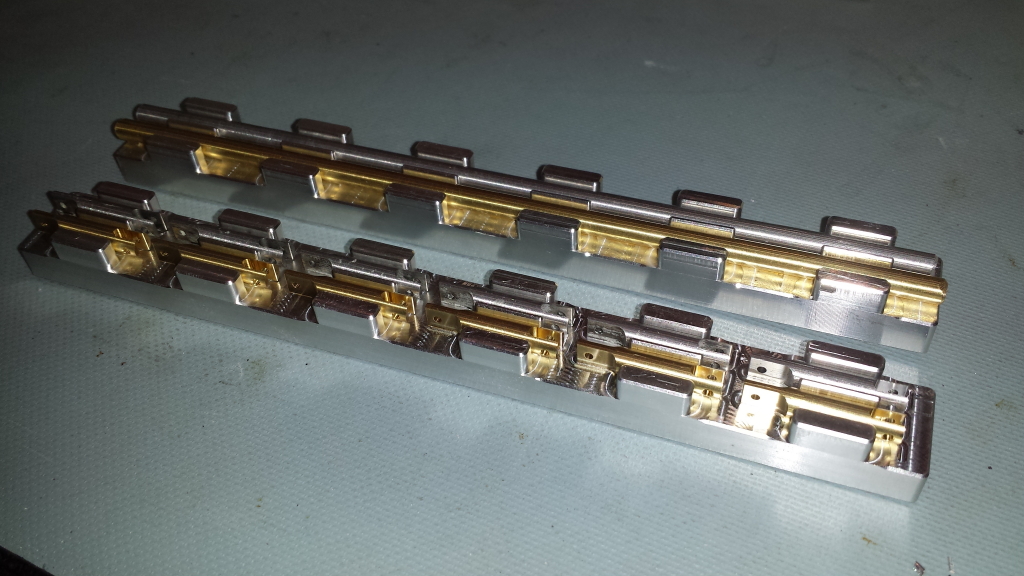

20150219_150701
|
|
|
|
SAMSUNG-SGH-I337
2/19/2015 3:07:01 PM
|
|
|
|
|
20150219_162244
|
|

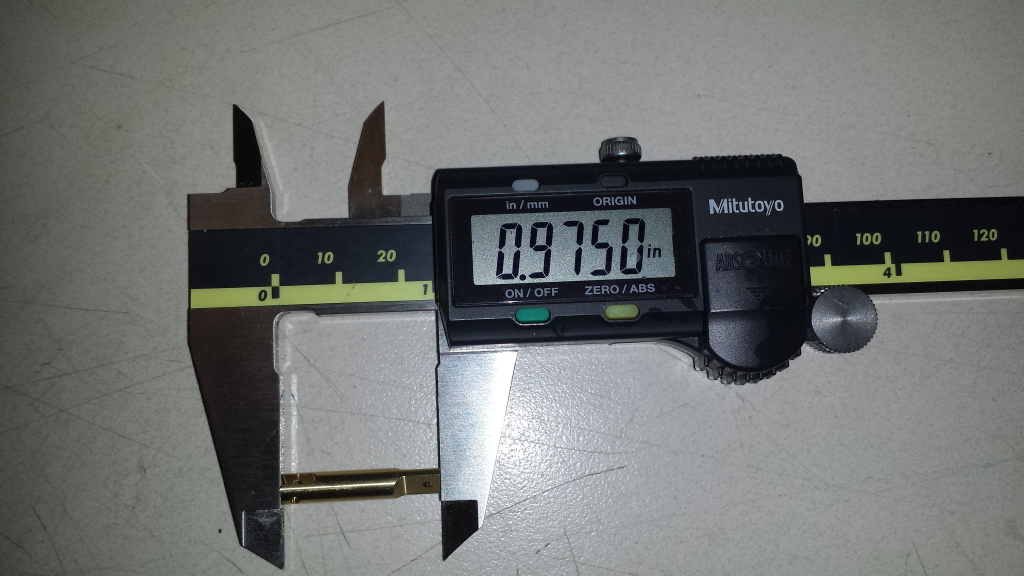

Part design length is 0.9750”, I’m pretty close!
|
|
|
SAMSUNG-SGH-I337
2/19/2015 4:22:44 PM
|
|
|
|
|
|
|
|
20150219_162354
|
|

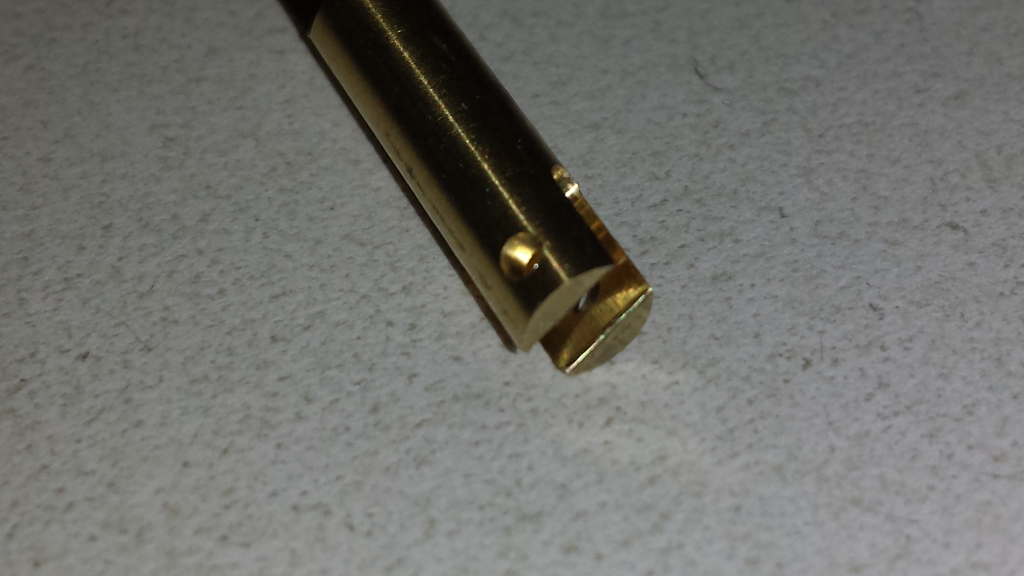

A view
showing the corner round on the sharp edge of the part
|
|
SAMSUNG-SGH-I337
2/19/2015 4:23:54 PM
|
|
|
|
|

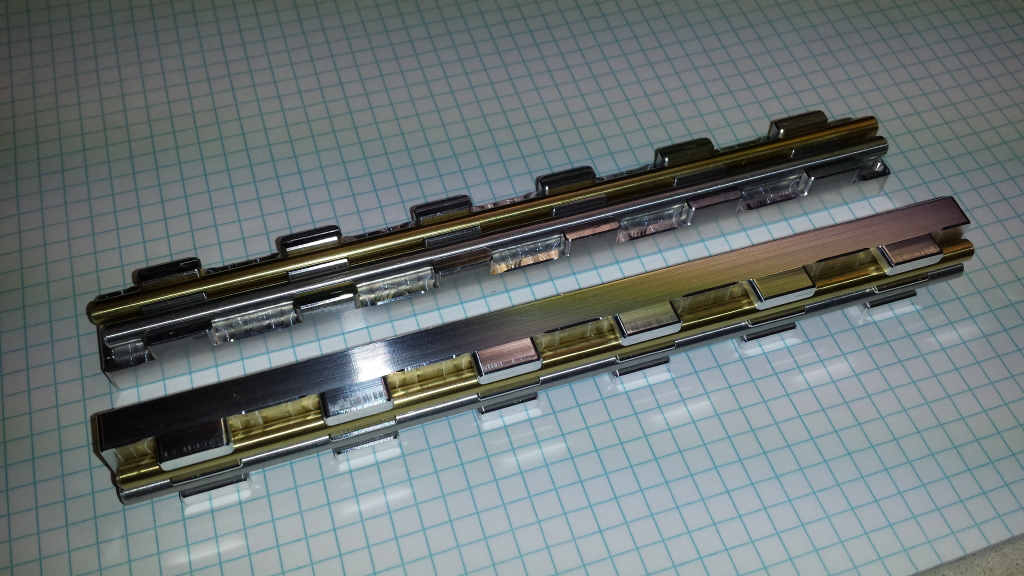

20150218_173638
|
|
|
|
|
SAMSUNG-SGH-I337
2/18/2015 5:36:38 PM
|
|
|
|
|
|
|
|

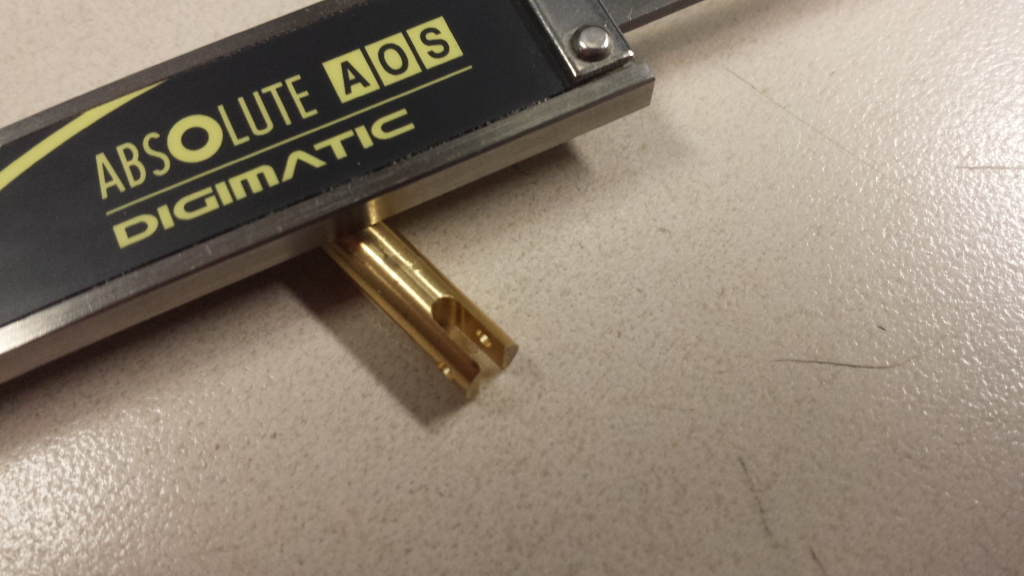

20150219_162622
|
|
A view showing the corner round on the
sharp edge of the part
|
|
SAMSUNG-SGH-I337
2/19/2015 4:26:22 PM
|
|
|
|
|
21060143_link_fixt_asm-2
|
|

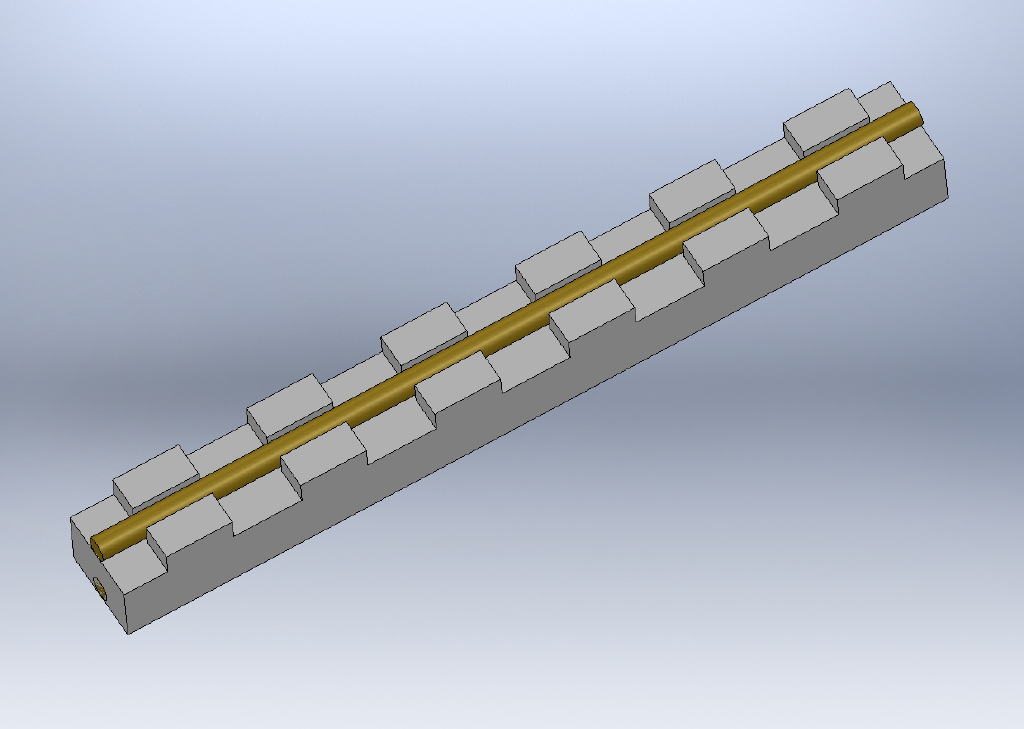

Additional fixture ideas
|
|
|
2/3/2015 8:09:28 AM
|
|
Earlier fixture concepts
|
|
|
|
|
|

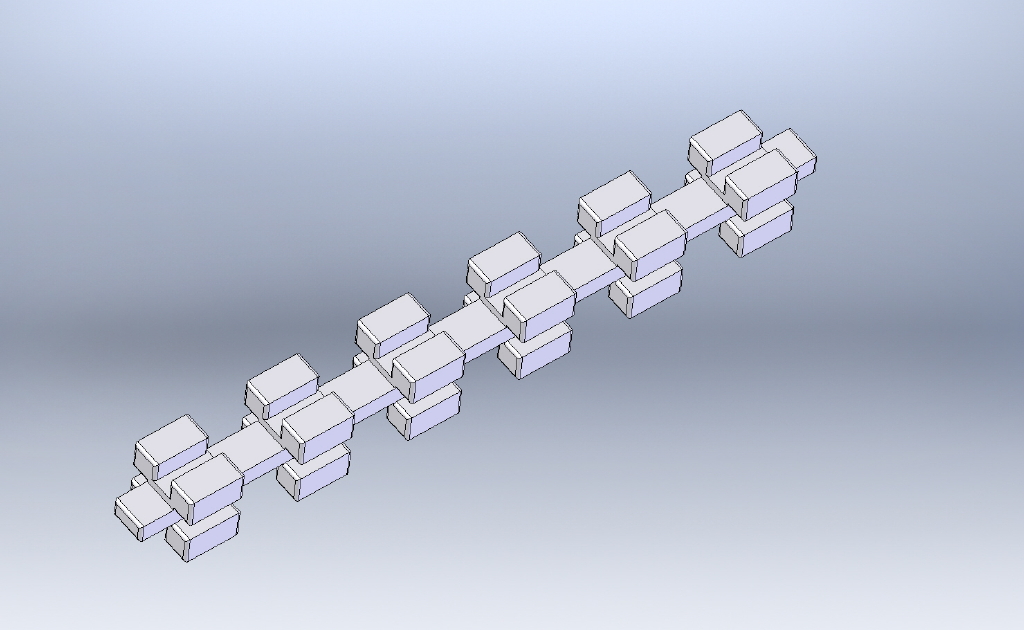

21060143_link_fixt_asm-3
|
|
Additional fixture ideas
|
|
2/3/2015 8:27:55 AM
|
|
Earlier fixture concepts
|
|
|

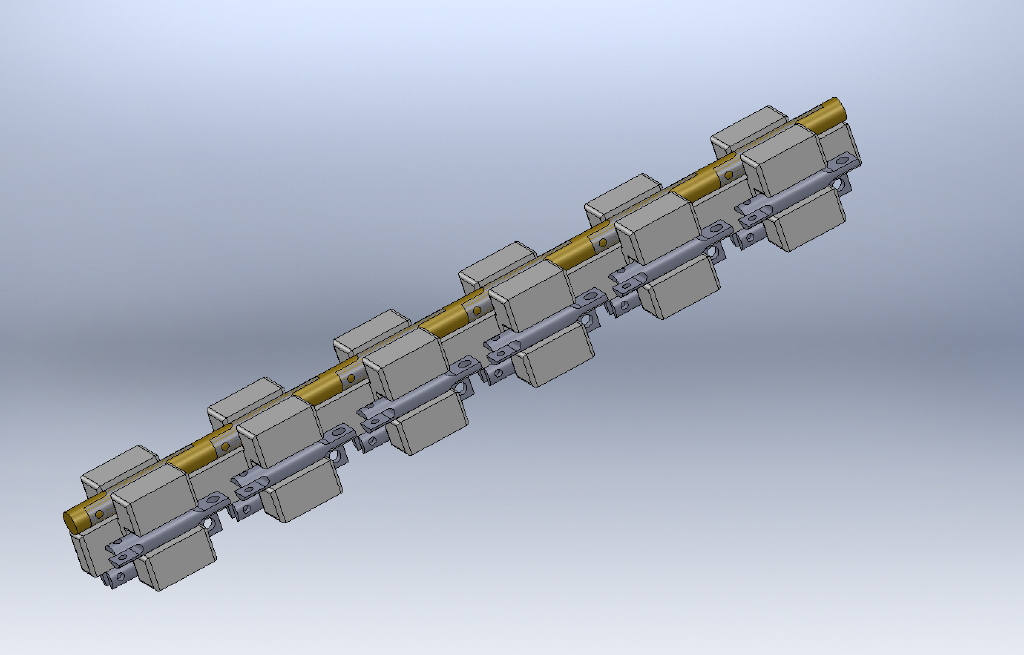

21060143_link_fixt_asm-4
|
|
Additional fixture ideas
|
|
|
2/3/2015 8:12:06 AM
|
|
Earlier fixture concepts
|
|
|
|
|
|
21060143_link_fixt_asm-5
|
|

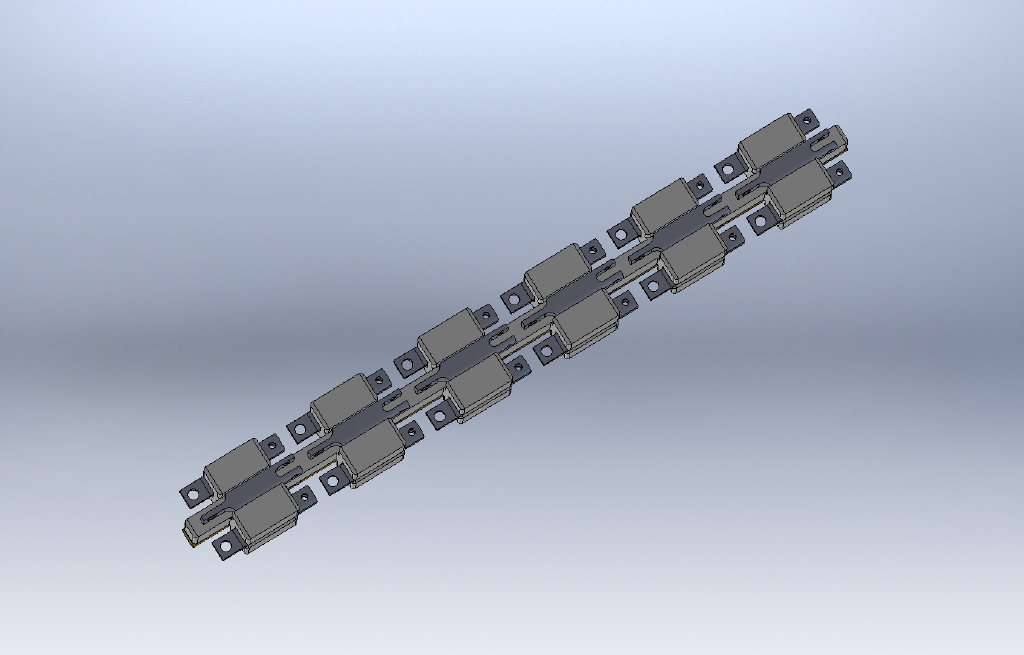

Additional fixture ideas
|
|
2/3/2015 8:29:15 AM
|
|
Earlier fixture concepts
|
|
|

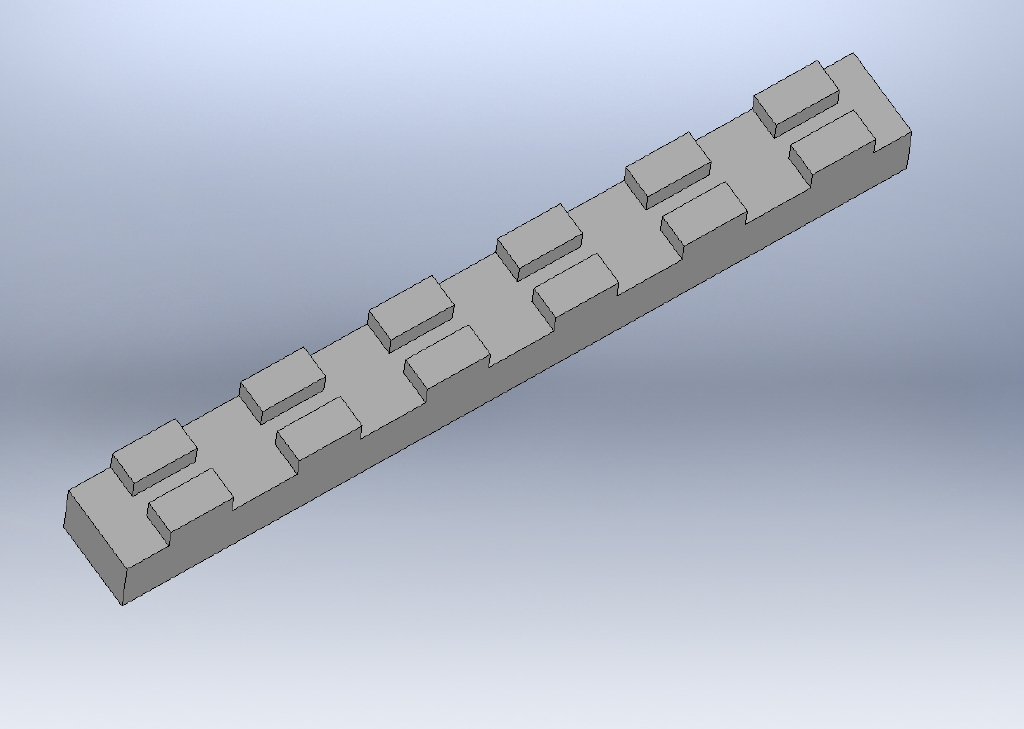

21060143_link_fixt_asm
|
|
Additional fixture ideas
|
|
|
2/3/2015 8:06:59 AM
|
|
Earlier fixture concepts
|
|
|
