1000003391-1
|
|
|
|
05/11/16 11:53:00 AM
This is a really small part
for god knows what. I was asked to build it in the FDM 3d Printer.
|
|
|
|
|
1000003391-2
|
|
|
|
|
05/11/16 11:53:28 AM
|
|
Bottom of the part.
|
|
|
|
|
|
dwg
|
|
|
|
05/11/16 12:02:03 PM

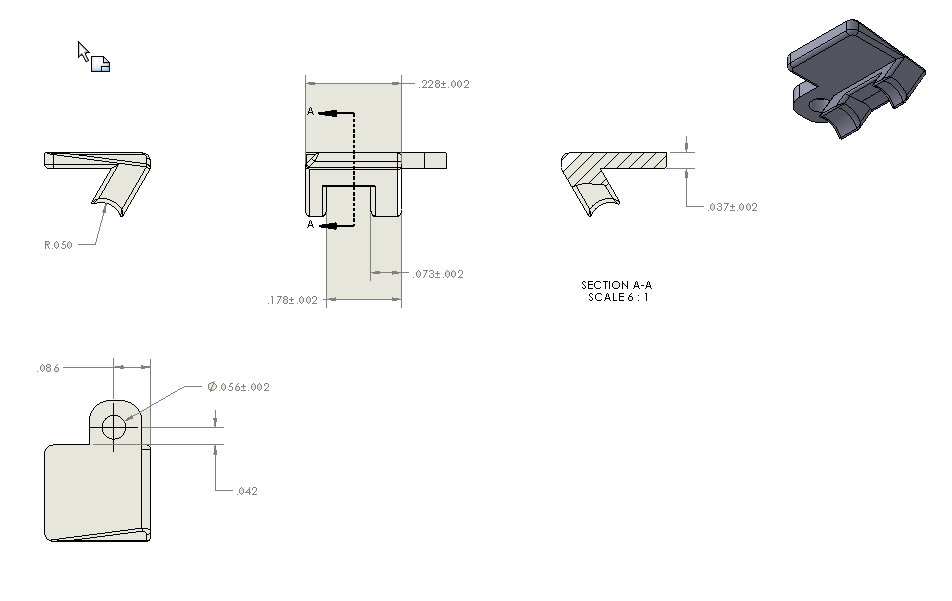

Drawing for the part,
basically its about ¼” square with a mounting
flange with a 1/16 diameter hole through it.
|
|
|
|
|
20160511_114050
|
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:40:50 AM
|
|

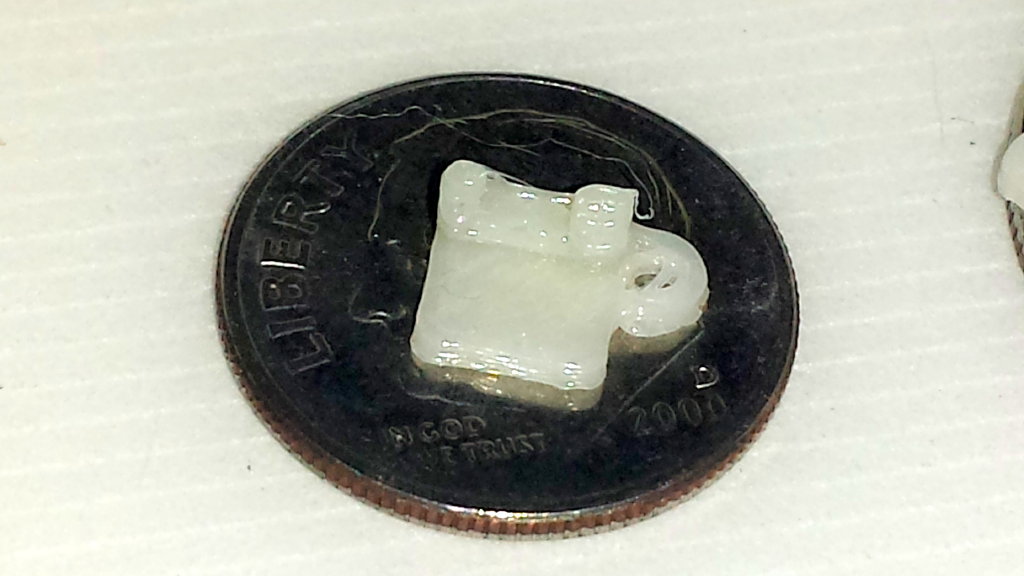

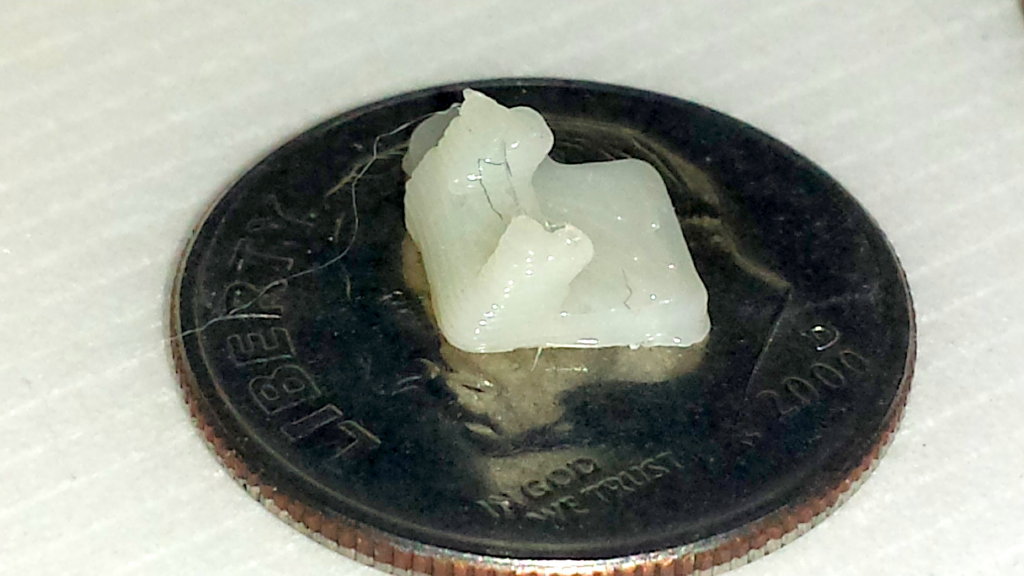

The part doesn’t print very well in the FDM as
the resolution is not quite fine enough. Would print better in the SLS
printer.
|
|
|
|
|
|
|
20160511_114106
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:41:05 AM
|
|
|
|
|
20160511_114131
|
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:41:31 AM
|
|

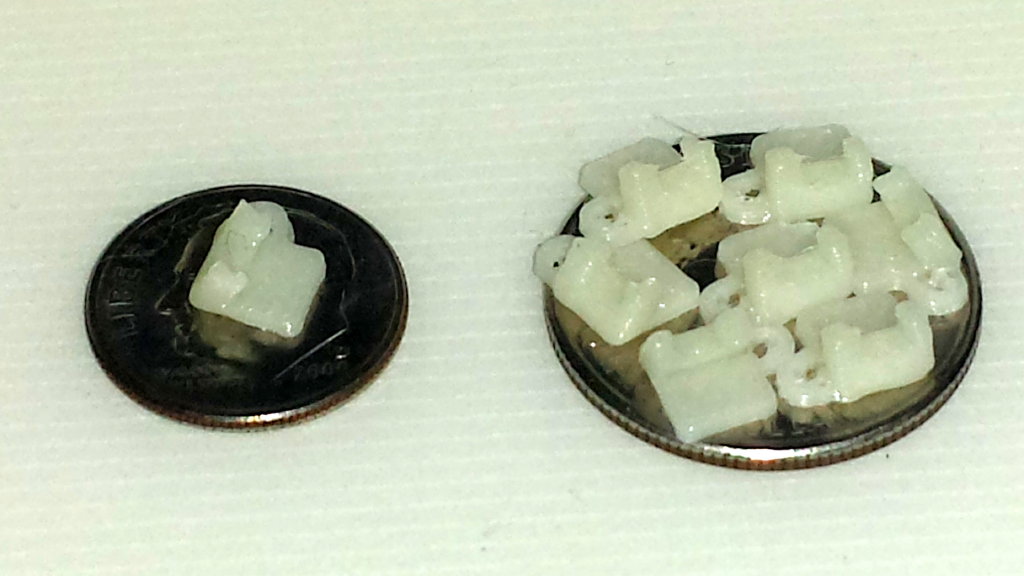

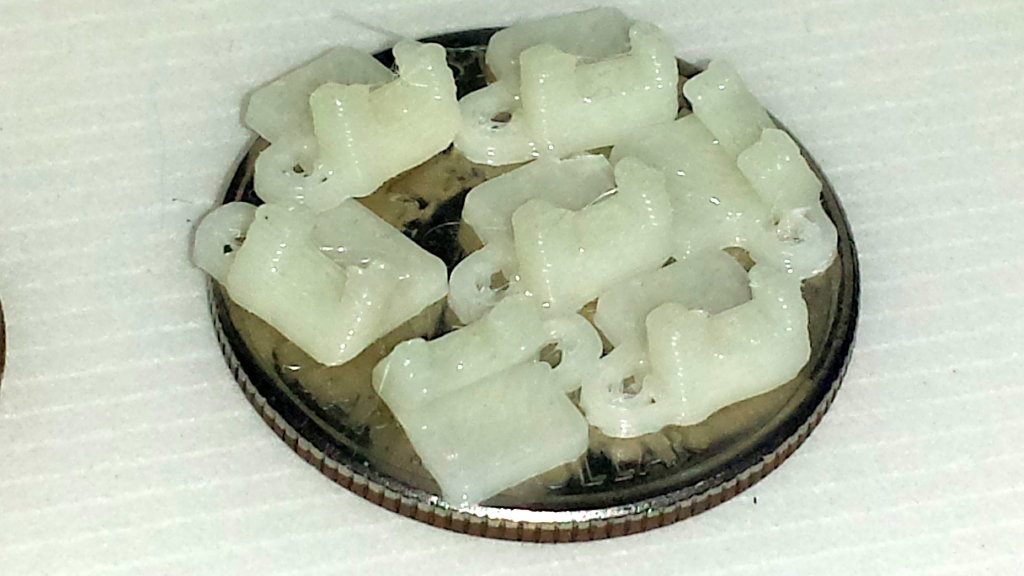

One part on a dime, and seven parts on a quarter!
|
|
|
|
|
|
20160511_114119
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:41:19 AM
|
|
|
|
|
20160511_114209
|
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:42:09 AM
|
|

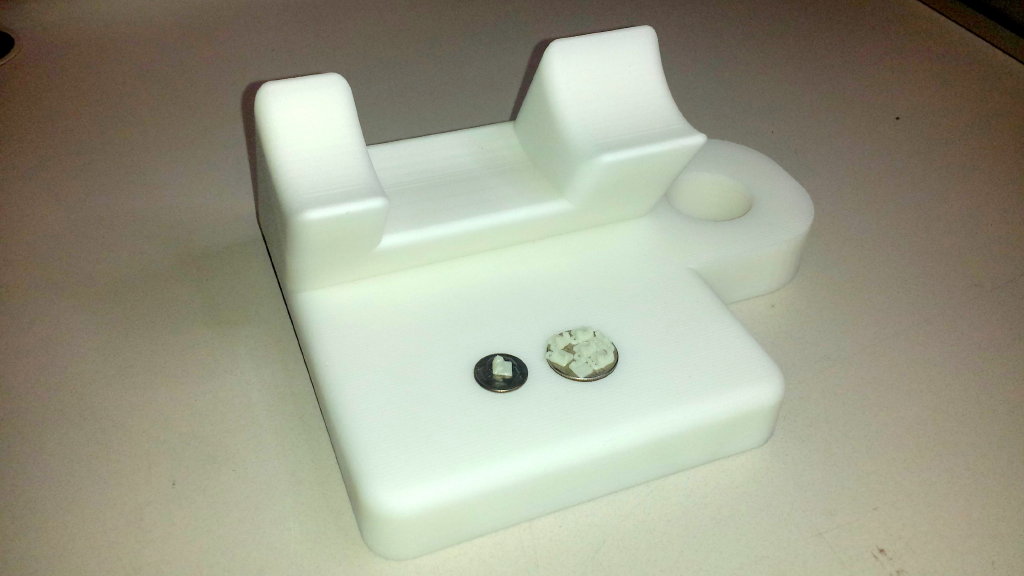

Here is a prime example of why it’s important for the 3d
printer operator to be familiar with the parts and their use so he can
avoid mistakes like this while importing and processing the part for a
build so he can recognize when there is a scale problem!
|
|
|
|
|
|
20160511_114222
|
|
|
|
SAMSUNG-SGH-I337
05/11/16 11:42:22 AM

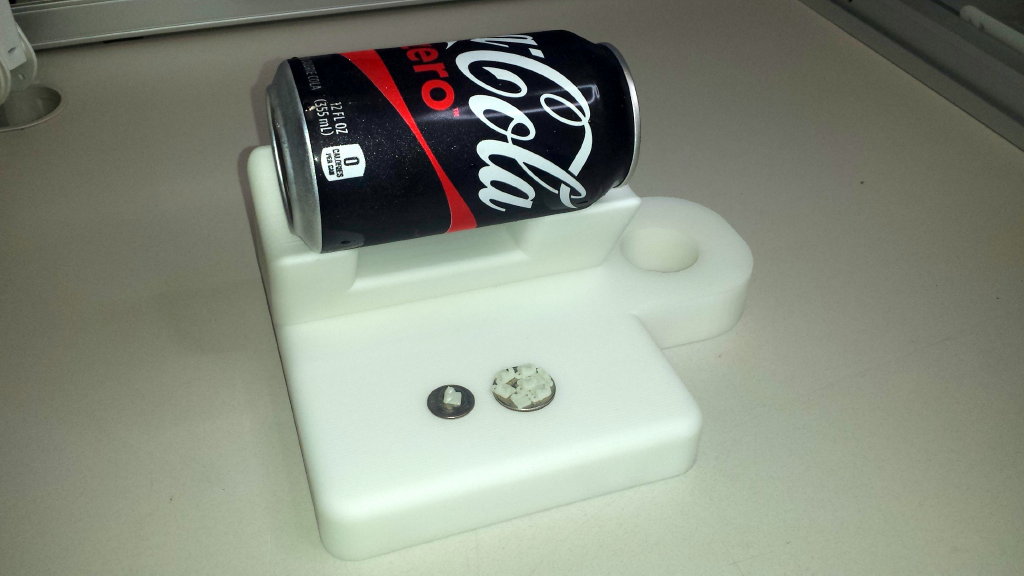

Can of soda for scale!
|
|
|
|
